800G OSFP SR8 Optical Transceiver Module High Speed, Low Power, MSA Compliant
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | 800G OSFP SR8 |
| Document: | CC-OSFP08SR8-12D_800G OSFP ...27.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | CC-OSFP08SR8-12D |
|---|---|---|---|
| Performance: | 800G OSFP SR8 | Speed: | 800G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
| Highlight: | MSA Compliant Optical Transceiver Module,Low Power Optical Transceiver Module,800G OSFP SR8 Optical Transceiver Module |
||
Product Description

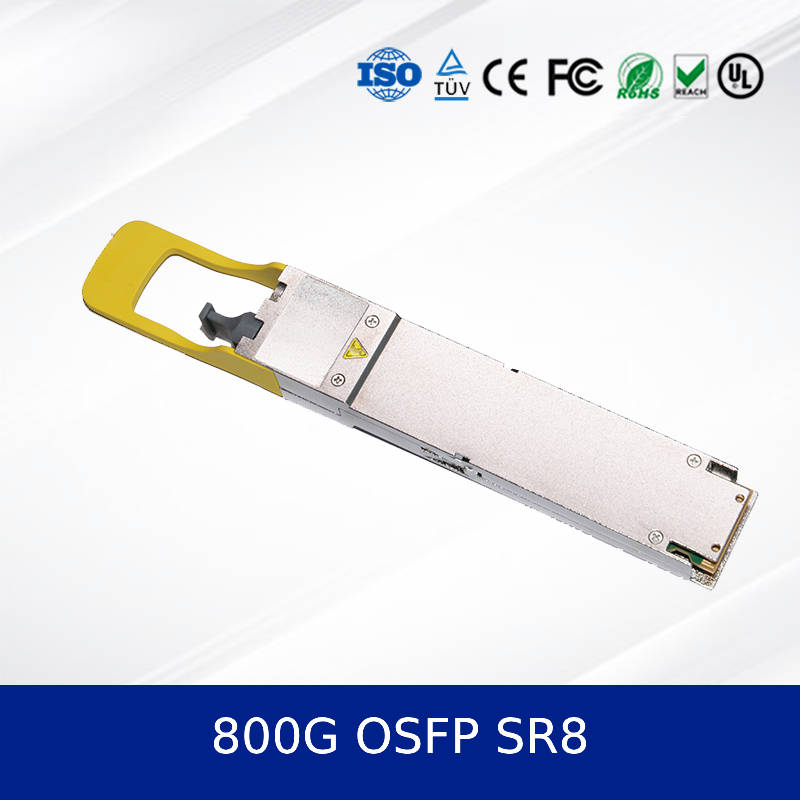

800G OSFP SR8 Optical Transceiver Module — High Speed, Low Power, MSA Compliant
Product Overview
The 800G OSFP SR8 optical transceiver module (model CC-OSFP08SR8-12D) is designed for high-speed data centers and enterprise networks requiring reliable 800 Gigabit Ethernet and InfiniBand NDR connectivity. It supports transmission distances of up to 100m on OM4 fiber and features dual MPO-12 connectors for high-density deployments.
Key Features
- Hot-pluggable OSFP form factor with dual MPO-12 APC receptacles
- Compliant with OSFP MSA Type2 and CMIS Rev 5.0+
- Low power consumption: max 17W operating, 1.5W in low-power mode
- Reach up to 70m on OM3 and 100m on OM4 multimode fiber
- Digital diagnostics monitoring via I2C interface
- RoHS compliant and operating temperature range 0°C to 70°C
Technology & Standards
The module complies with IEEE P802.3db/D3.0, IEEE P802.3ck, and OSFP MSA specifications. It uses PAM4 modulation and supports CMIS management interface for real-time monitoring and configuration.
How It Works
The 800g osfp transceiver converts electrical signals into optical signals using VCSEL arrays, transmitting over 8 lanes at 53.125 GBd per lane. It integrates digital diagnostics for real-time performance tracking including temperature, voltage, TX bias, and optical power.
Applications
- 800G Ethernet data center interconnects
- InfiniBand NDR networks
- High-performance computing clusters
- Cloud infrastructure and enterprise backbones
- 8x100GbE breakout applications
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Data Rate | 800G | Gbps |
| Wavelength | 850 | nm |
| Max Power Consumption | 17 | W |
| Fiber Type | OM3/OM4 | - |
| Connector | Dual MPO-12 | - |
Advantages
- Higher density and bandwidth compared to QSFP-DD and OSFP Gen1
- Lower power per bit for improved energy efficiency
- Robust diagnostic capabilities reduce downtime and simplify maintenance
- Fully compliant with industry standards ensuring broad compatibility
Service & Support
All optical transceiver modules come with a 5-year warranty. We offer global shipping, 24/7 technical support, and custom labeling and testing services. Bulk orders are eligible for discounted pricing and expedited delivery.
Frequently Asked Questions
Q: What is the maximum distance supported by this OSFP module?
A: It supports up to 70m on OM3 and 100m on OM4 multimode fiber.
Q: Is this transceiver compatible with Cisco/Juniper/Arista switches?
A: Yes, it is MSA-compliant and designed to be vendor-agnostic.
Q: What is the power consumption in low-power mode?
A: It consumes a maximum of 1.5W when in low-power mode.
Q: Does it support digital diagnostics monitoring?
A: Yes, it provides real-time monitoring via the I2C interface.
Q: Can it be used for InfiniBand NDR applications?
A: Absolutely, it is designed for both 800G Ethernet and InfiniBand NDR.
Precautions
- Avoid touching the optical connectors to prevent contamination.
- Ensure operating temperature remains within 0°C to 70°C.
- Use only with compatible OSFP cages and host equipment.
- Follow ESD safety procedures during installation and handling.
Company Introduction

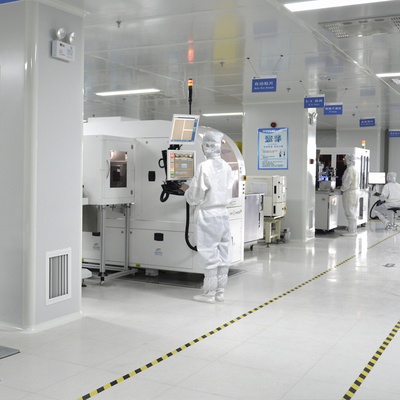

With over 10 years of industry experience, we operate a large production facility and maintain a strong R&D team. We represent leading brands including Mellanox, Ruckus, Aruba, and Extreme. Our product portfolio includes network switches, adapters, wireless access points, and fiber cables. We hold over $10 million in inventory to ensure prompt delivery and offer competitive pricing without compromising on quality.
