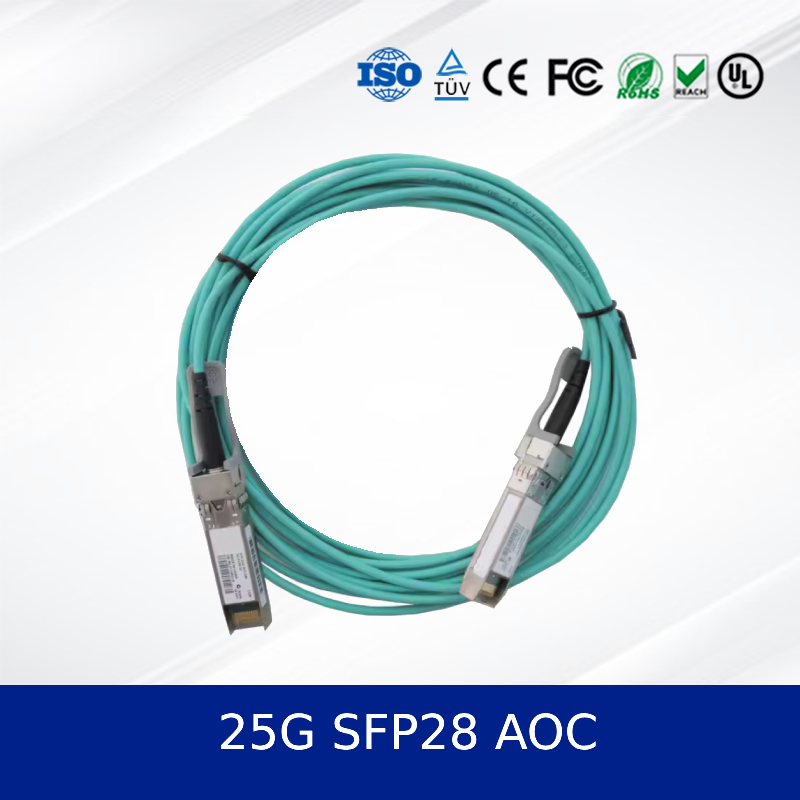

25G SFP28 AOC 3m Active Optical Cable 100m Reach, Low Power, Digital Diagnostics
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | 25G SFP28 AOC 3m |
| Document: | CC-PMMAOCX-SD_25G SFP28 AOC...28.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | CC-PMMAOCX-SD |
|---|---|---|---|
| Performance: | 25G SFP28 AOC 3m | Speed: | 25G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
Product Description
Product Overview
The CC-PMMAOCX-SD is a high-performance 25G SFP28 Active Optical Cable (AOC) designed for high-speed data transmission in data centers and enterprise networks. It supports a data rate of 25.78125 Gbps and offers reliable connectivity with low power consumption and hot-pluggable functionality. This optical transceiver module is ideal for applications requiring high bandwidth and low latency.
Key Features
- Hot-pluggable SFP28 form factor
- Supports 25.78125 Gbps data rate
- Up to 100m reach on OM4 MMF
- 850nm VCSEL transmitter and PIN receiver
- Internal CDR on both Tx and Rx channels
- Low power consumption: <1.0W
- Digital diagnostic monitoring via SFF-8472
Technology & Standards
This optical module complies with industry standards including SFF-8024, SFF-8431, IEEE 802.3by, and SFF-8472. It is RoHS compliant and features internal calibration for accurate performance monitoring.
Working Principle
The AOC converts electrical signals into optical signals using a VCSEL laser, transmits them over multimode fiber, and converts them back to electrical signals via a PIN photodetector. Internal clock and data recovery (CDR) circuits ensure signal integrity.
Applications
- Data center interconnects
- 25GBASE-SR Ethernet
- Infiniband EDR systems
- 32G Fiber Channel networks
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Data Rate | 25.78125 | Gbps |
| Wavelength | 850 | nm |
| Max Distance (OM4) | 100 | m |
| Power Supply | 3.3 | V |
| Power Consumption | <1.0 | W |
| Operating Temperature | 0 to +70 | °C |
Selection Guide
| Model | Reach (m) | Fiber Type | Pull Tab Color |
|---|---|---|---|
| CC-PMMAOC3-SD | 3 | OM3 | Black |
| CC-PMMAOC5-SD | 5 | OM3 | Black |
| CC-PMMAOC7-SD | 7 | OM3 | Black |
Advantages
- Lower power consumption compared to copper alternatives
- Higher bandwidth and longer reach
- Integrated digital diagnostics for real-time monitoring
- Hot-pluggable design for easy maintenance
Service & Support
We offer 24/7 technical support, fast delivery, and a comprehensive warranty. Our team provides integration assistance and troubleshooting to ensure seamless deployment.
FAQ
Q: What is the maximum distance supported?
A: Up to 100m on OM4 multimode fiber.
Q: Is this compatible with SFP28 ports?
A: Yes, it is fully compliant with SFP28 MSA standards.
Q: Does it support digital diagnostics?
A: Yes, it supports DDM via SFF-8472.
Precautions
- Avoid bending the fiber beyond the minimum bend radius.
- Ensure proper ESD protection during handling.
- Operate within specified temperature and voltage ranges.
