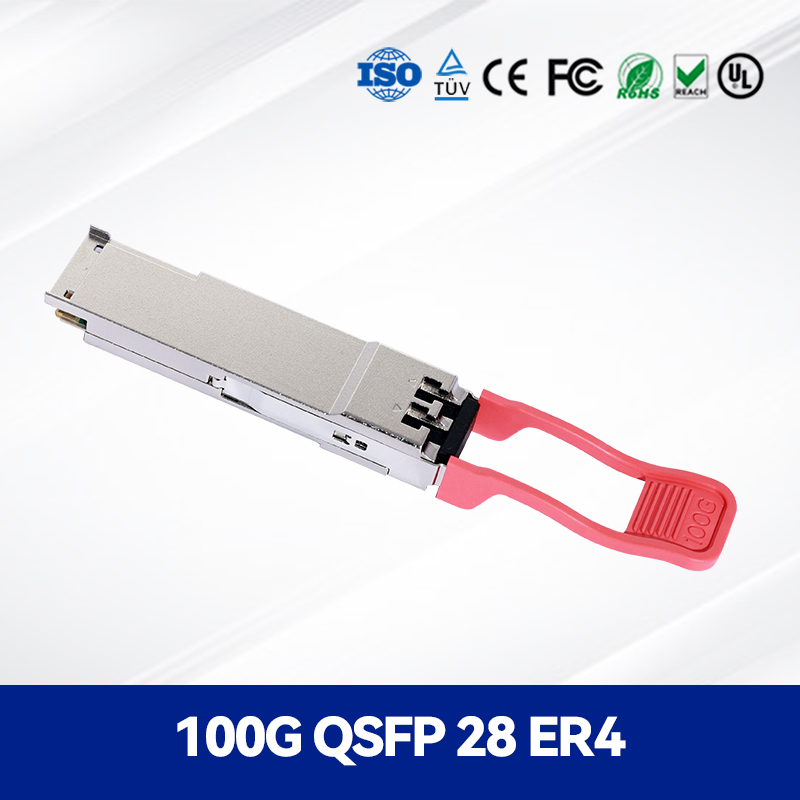

Premium 100g Qsfp28 Er4 40km Fiber Optic Module for Data Centers
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | 100G QSFP28 ER4 40KM |
| Document: | CC-QKKLL4L-SD_100G QSFP28 +...14.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | CC-QKKLL4L-SD |
|---|---|---|---|
| Performance: | 100G QSFP28 ER4 40KM | Speed: | 100G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
Product Description
Product Overview
The Optical Transceiver Module model CC-QKKLL4L-SD is a high-performance QSFP28 form factor transceiver designed for 100G Ethernet applications. It supports data transmission over single-mode fiber up to 40 km without FEC, making it ideal for long-haul data center interconnects and telecom backbones. This optical module integrates four 25G LAN-WDM lanes with EML lasers and APD detectors, ensuring low power consumption and high reliability.
Key Features
- Hot-pluggable QSFP28 form factor
- 4×25.78125 Gb/s LAN-WDM lanes
- Up to 40 km transmission over SMF
- Low power consumption < 4.5 W
- Operating temperature: 0°C to 70°C
- I²C management interface
- RoHS compliant and lead-free
Technology & Standards
This Optical Transceiver Module complies with IEEE 802.3ba, SFF-8436, SFF-8636, and QSFP28 MSA standards. It uses EML laser technology and APD array receivers for high sensitivity and superior performance in demanding environments.
Working Principle
The module converts electrical signals into optical signals using four EML lasers, each operating at a specific LAN-WDM wavelength. The signals are multiplexed into a single fiber for transmission. On the receive side, an APD array detects the optical signals, demultiplexes them, and converts them back to electrical outputs.
Applications
- 100G Ethernet data centers
- Telecommunication networks
- Cloud infrastructure interconnects
- Enterprise network backbones
Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Data Rate per Lane | - | 25.78125 | - | Gbps |
| Power Consumption | - | - | 4.5 | W |
| Operating Temperature | 0 | - | 70 | °C |
Advantages
- Extended reach up to 40 km without FEC
- Lower power draw compared to competitive models
- Enhanced EMI shielding via all-metal housing
- Compatible with major switch brands
Service & Support
We offer a comprehensive warranty, fast delivery, and 24/7 technical support. Our team provides integration assistance and troubleshooting to ensure seamless deployment.
FAQ
Q: What is the maximum distance supported?
A: This optical module supports up to 40 km over single-mode fiber.
Q: Is FEC required?
A: No, this module operates without Forward Error Correction.
Q: What is the power consumption?
A: Typical power consumption is under 4.5 W.
Precautions
- Ensure compatible host equipment and firmware
- Avoid static discharge during handling
- Operate within specified temperature and humidity ranges
- Use approved cleaning tools for optical connectors
