QSFP28 LR4 100G Optical Transceiver 1310nm 10km DOM LC Single Mode Fiber For Data Center And High Speed Network
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | 100G QSFP28 LR4 10KM |
| Document: | CC-QKKLL1L-SD_100G QSFP28 +...v1.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | CC-QKKLL1L-SD |
|---|---|---|---|
| Performance: | 100G QSFP28 LR4 10KM | Speed: | 10G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
| Highlight: | QSFP28 LR4 100G 10km DOM LC,QSFP28 LR4 100G Optical Transceiver,1310nm QSFP28 LR4 100G |
||
Product Description

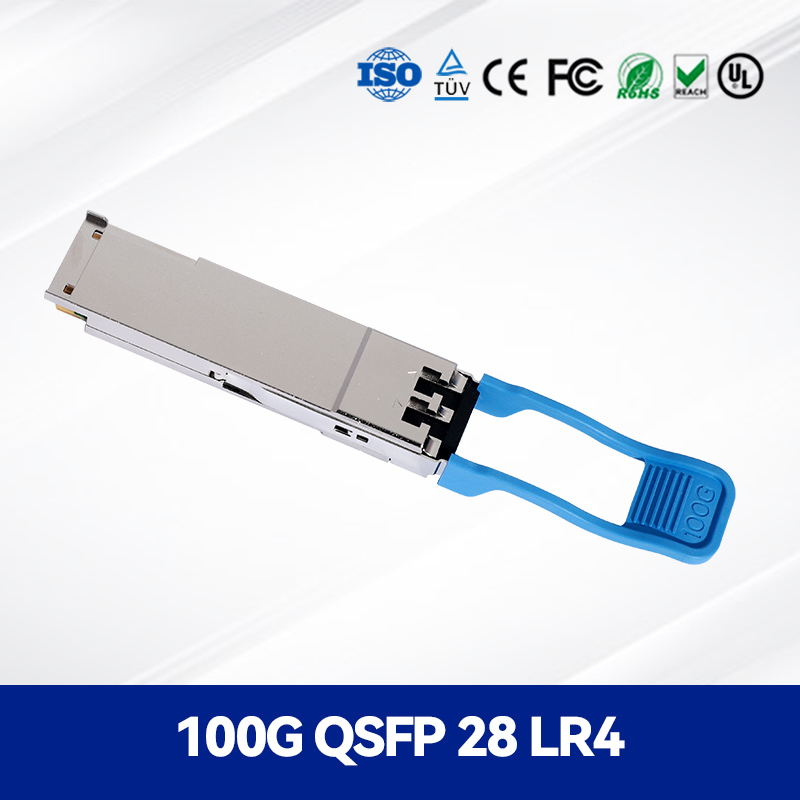

100G QSFP28 LR4 Optical Transceiver — CC-QKKLL1L-SD
Deliver high-performance 100G connectivity with our optical transceiver module, designed for long-reach data center applications. This optical module supports up to 10km on single-mode fiber using four independent LAN-WDM channels, featuring low power consumption and comprehensive digital diagnostics. Ideal for 100G Ethernet and high-performance computing environments.
Key Features
- Hot-pluggable QSFP28 form factor
- 4 independent LAN-WDM channels (1294-1310nm)
- Reach up to 10km on single-mode fiber
- Low power consumption < 4.5W
- Wide operating temperature range: 0°C to 70°C
- Digital diagnostic monitoring via I2C interface
- Compliant with 100GBASE-LR4 standards
Technology and Standards
This optical transceiver module utilizes WDM (Wavelength Division Multiplexing) technology with four distinct wavelengths to achieve 100G throughput. It complies with IEEE 802.3ba standards for 100GBASE-LR4 applications and features advanced diagnostics for real-time performance monitoring.
Working Principle
The optical module employs four distributed feedback (DFB) lasers operating at different wavelengths to transmit data over single-mode fiber. The receiver section uses four PIN photodiodes to detect and convert the optical signals back to electrical format. Internal CDR circuits ensure signal integrity across the 10km distance.
Applications
- Data center interconnects and backbone networks
- 100G Ethernet switches and routers
- High-performance computing clusters
- Telecom and service provider networks
- Enterprise core network infrastructure
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 100G (4x25G) |
| Wavelengths | 1294-1310nm (4 channels) |
| Max Reach | 10km |
| Fiber Type | Single Mode |
| Power Consumption | < 4.5W |
| Operating Temperature | 0°C to 70°C |
Ordering Information
| Model | Description |
|---|---|
| CC-QKKLL1L-SD | 100G LR4, 10km SMF, 0°C to 70°C |
Advantages
- Four independent WDM channels for high bandwidth efficiency
- Low power consumption reduces operational costs
- Long 10km reach for extended data center connections
- Comprehensive digital diagnostics for real-time monitoring
- Wide temperature range for diverse operating environments
Service and Support
We offer a 5-year warranty, global technical support, and flexible supply options. Our team provides 24/7 consultation and integration assistance to ensure smooth deployment and operation.
Frequently Asked Questions
Q: What is the maximum reach of this transceiver?
A: It supports up to 10km on single-mode fiber.
Q: Does it support digital diagnostics?
A: Yes, it provides comprehensive digital diagnostic monitoring via the I2C interface.
Q: What wavelengths does it use?
A: It uses four LAN-WDM channels: 1294.53nm, 1299.02nm, 1303.54nm, and 1308.09nm.
Precautions
- Use only with single-mode fiber (SMF)
- Avoid bending the fiber beyond the minimum bend radius
- Operate within the specified temperature and humidity ranges
- Follow electrostatic discharge (ESD) protection procedures during handling
- Ensure proper fiber connector cleaning to prevent contamination
