optical transceiver module Premium 10g SFP+ Bidi 80km Fiber Optic Module for Data Centers.
Product Details:
| Place of Origin: | China |
| Brand Name: | own |

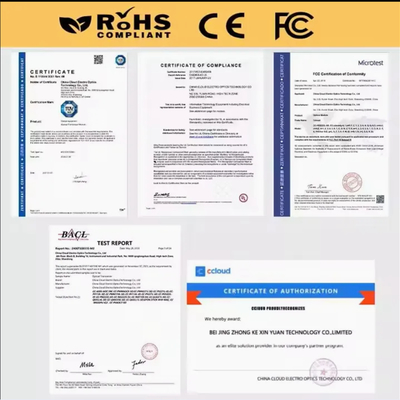

| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | 10G SFP+ BIDI 80KM |
| Document: | CC-PII34(43)8L-xD_10G SFP+B...01.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | CC-PII348L-xD |
|---|---|---|---|
| Performance: | 10G SFP+ BIDI 80KM | Speed: | 10G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
Product Description

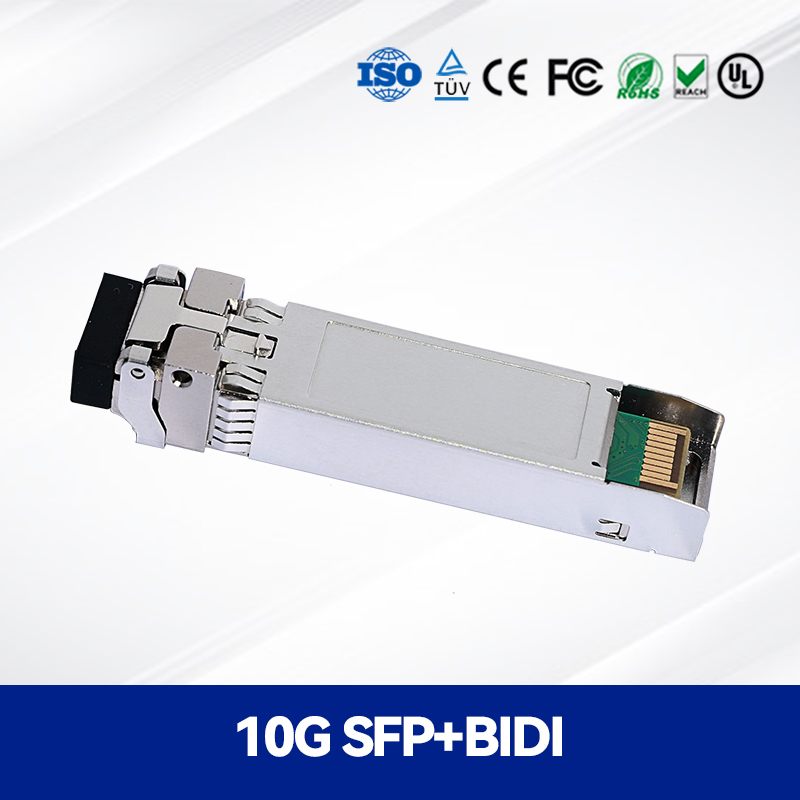

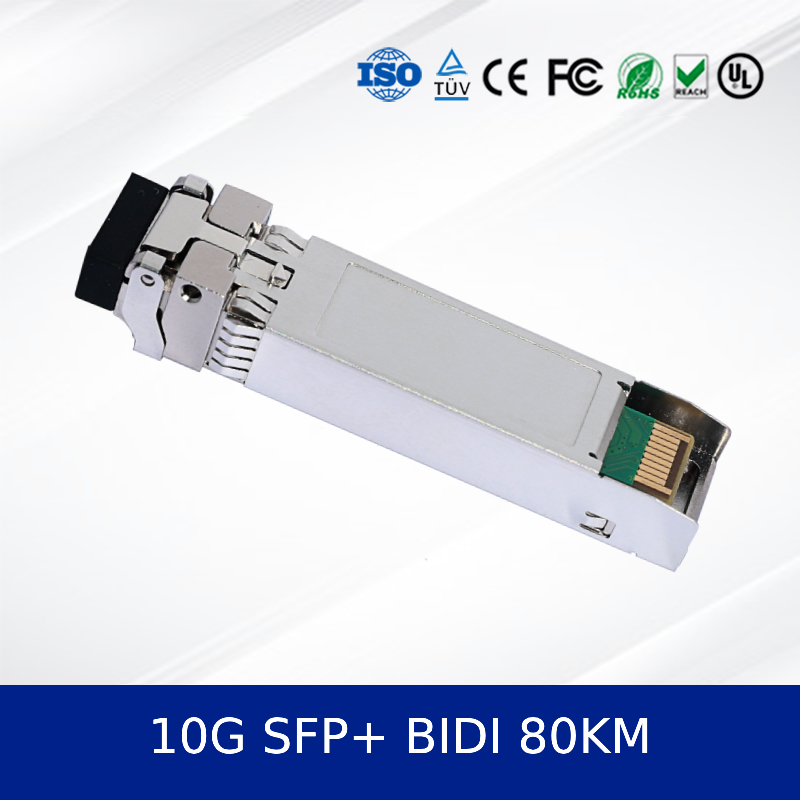

10Gb/s 80km SFP+ Bidirectional Optical Transceiver Module
This high-performance optical transceiver module supports 10Gb/s data transmission over single-mode fiber up to 80km. It integrates advanced EML transmitter and APD receiver technologies, offering low power consumption, high reliability, and compliance with industry standards. Ideal for high-density networking applications requiring long-range connectivity.
Key Features
- Hot-pluggable SFP+ form factor with single LC interface
- 1490nm/1550nm EML transmitter and APD receiver
- Power consumption under 2W
- Operating temperature: Commercial (0°C to 70°C) or Industrial (-40°C to 85°C)
- Fully compliant with RoHS and industry standards
Core Technology
The module utilizes Electro-absorption Modulated Laser (EML) and Avalanche Photodiode (APD) technologies, ensuring high sensitivity and long-range performance. It complies with SFF-8431, SFF-8472, and SFF-8432 standards, supporting 10G Ethernet, SONET/SDH, and OTU2/2e protocols.
How It Works
The bidirectional optical module transmits and receives data over a single fiber strand using wavelength division multiplexing (WDM). The transmitter converts electrical signals to optical signals at 1490nm or 1550nm, while the receiver detects incoming signals at the complementary wavelength, enabling full-duplex communication over long distances.
Typical Applications
- 10G Ethernet data centers and enterprise networks
- Metro and access network infrastructure
- SONET/SDH and OTN systems
- High-capacity fiber optic backbones
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Data Rate | 10.3125 Gbps | Gbps |
| Wavelength | 1490/1550 nm | nm |
| Max Distance | 80 | km |
| Power Supply | +3.3V | V |
| Power Consumption | < 2 | W |
Ordering Information
| Model | Description | Temperature Range |
|---|---|---|
| CC-PII348L-SD | Tx1490/Rx1550nm, 80km, DDM | 0°C to 70°C |
| CC-PII348L-ID | Tx1490/Rx1550nm, 80km, DDM | -40°C to 85°C |
| CC-PII438L-SD | Tx1550/Rx1490nm, 80km, DDM | 0°C to 70°C |
| CC-PII438L-ID | Tx1550/Rx1490nm, 80km, DDM | -40°C to 85°C |
Key Advantages
- Low power consumption reduces operational costs
- Industrial temperature option for harsh environments
- All-metal housing enhances EMI performance and durability
- Bidirectional design saves fiber infrastructure cost
Service & Support
All transceivers come with a standard warranty. We offer global shipping, 24/7 technical support, and custom configuration services. Bulk order discounts available.
Frequently Asked Questions
Q: What is the maximum distance supported?
A: This optical transceiver module supports up to 80km over single-mode fiber.
Q: Is it compatible with Cisco/Juniper switches?
A: Yes, it is designed to be multi-vendor compatible. Please refer to the datasheet for details.
Q: Does it support DDM/DOM?
A: Yes, all models include digital diagnostic monitoring.
Installation Notes
- Ensure host equipment supports SFP+ form factor
- Avoid bending fiber beyond minimum bend radius
- Use recommended power supply filtering in high-noise environments
- Comply with laser safety standards during installation and operation

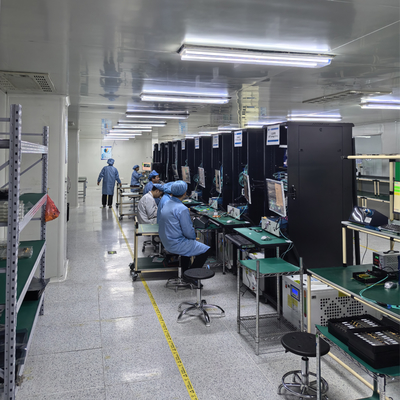

Company Introduction
With over a decade of industry experience, we operate a large-scale manufacturing facility supported by a robust technical team. We partner with leading brands including Mellanox, Ruckus, Aruba, and Extreme, offering a wide range of networking products such as switches, network adapters, wireless access points, and cables. Our inventory exceeds 10 million units, ensuring reliable supply and competitive pricing. We provide round-the-clock customer service and technical support, backed by a professional sales and engineering team trusted by clients worldwide.
