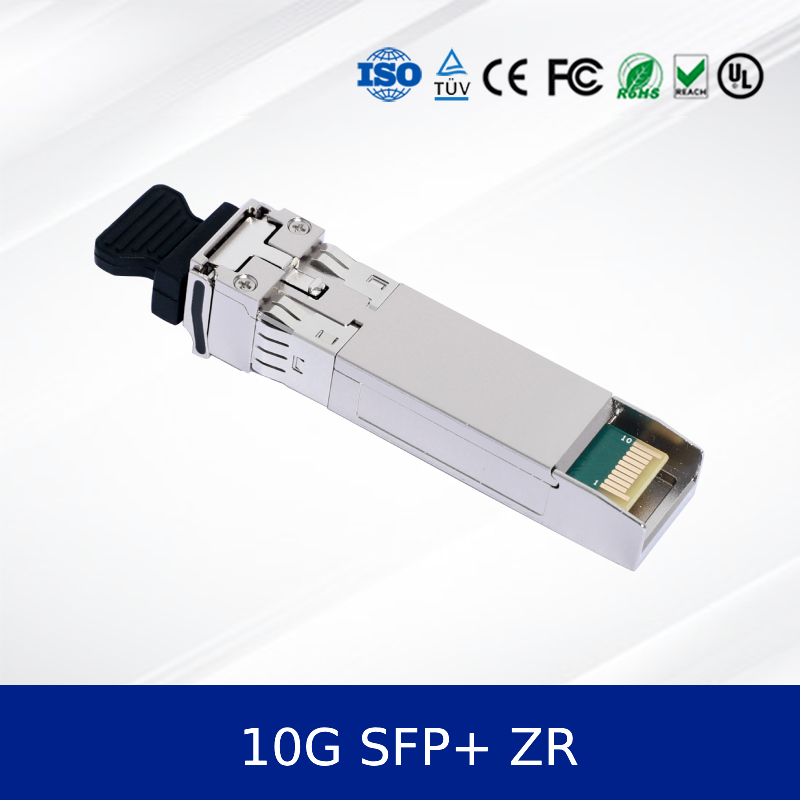

Optical transceiver module 10G SFP+ ZR Extended Reach, APD Receiver, Industrial Temperature
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | 10G SFP+ ZR |
| Document: | CC-PII448L_10G SFP+ ZR 80km...1).pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | CC-PII448L-xD |
|---|---|---|---|
| Performance: | 10G SFP+ ZR | Speed: | 10G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
Product Description
Product Overview
10G SFP+ ZR is a high-performance 10Gb/s optical transceiver module designed for long-haul data transmission up to 80km over single-mode fiber. It features a cooled EML transmitter and APD receiver, ensuring reliable performance in demanding environments. This optical module supports data rates up to 11.3Gbps and is available in both commercial and industrial temperature ranges.
10G SFP+ ZR Key Features
- Hot-pluggable SFP+ form factor with LC duplex interface
- 1550nm cooled EML laser and APD receiver
- Low power consumption (< 2W)
- Up to 80km transmission distance
- Metal housing for enhanced EMI shielding
- RoHS compliant and lead-free
Technology & Standards
The module complies with SFF-8431, SFF-8432, and SFF-8472 standards. It uses advanced cooled EML and APD technologies to achieve high sensitivity and low dispersion penalty, supporting 10G Ethernet, 10G Fiber Channel, and OTU2/2e applications.
10G SFP+ ZR Working Principle
The optical transceiver module converts electrical signals into optical signals using a 1550nm EML transmitter. The optical signal is transmitted over single-mode fiber and received by an APD receiver, which converts it back into electrical signals. The module includes built-in signal conditioning and EMI reduction circuits.
10G SFP+ ZR Applications
- 10G Ethernet networks
- Data center interconnects
- Telecom and metro networks
- Fiber Channel and SAN extensions
- SONET/SDH and OTN systems
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 10.3125 Gbps (up to 11.3G) |
| Wavelength | 1550nm |
| Max Distance | 80km |
| Power Consumption | < 2W |
| Operating Temperature | 0°C to 70°C (Commercial) -40°C to 85°C (Industrial) |
Ordering Information
| Model | Description |
|---|---|
| CC-PII448L-SD | 10G SFP+, 80km, 0°C to 70°C, with DDM |
| CC-PII448L-ID | 10G SFP+, 80km, -40°C to 85°C, with DDM |
Advantages
- Superior EMI performance with all-metal housing
- Higher port density and bandwidth efficiency
- Industrial temperature option for harsh environments
- Low power consumption reduces operational cost
- Compliant with international safety and EMC standards
Service & Support
We offer 24/7 technical support, worldwide shipping, and a comprehensive warranty. Our team provides integration assistance and ensures compatibility with major OEM equipment.
FAQ
Q: What is the maximum data rate supported?
A: The module supports up to 11.3 Gbps, including 10.3125 Gbps for 10G Ethernet.
Q: Is this module compatible with Cisco/Juniper switches?
A: Yes, it is designed to be multi-vendor compatible. Please check our compatibility list for details.
Q: Does it support DDM/DOM monitoring?
A: Yes, both models include digital diagnostics monitoring.
Precautions
- Ensure proper ESD protection during handling and installation.
- Use only within specified temperature and humidity ranges.
- Verify host board compatibility and power supply filtering.
- Avoid bending fiber cables beyond minimum bend radius.
