Optical transceiver module 10G SFP+ ER for Data-center Ethernet High Performance, Low Power, Reliable

Product Details:

Place of Origin: China
Brand Name: own
Certification: CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004
Model Number: 10G SFP+ ER
Document: CC-PII444L-xD_10G SFP+ ER 4...08.pdf

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Face to face/bulk price
Packaging Details: outer box
Delivery Time: Spot goods 3-7 days; Customization 2-4 weeks
Payment Terms: T/T
Supply Ability: Supply by project/batch
Get Best Price Contact Now

Detail Information

Name: Optical Transceiver Module Model NO.: CC-PII444L-xD
Performance: 10G SFP+ ER Speed: 10G
Specification: 400*265*100mm Hot-pluggable: Yes
Supply Voltage: 3.3 V Operating Case Temperature: Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option.
Management / Diagnostics: High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. Applications: Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation.
Compliance / Environmental: CE/FCC/UL/TUV /RoHS Condition: New
Highlight:

Low Power Optical Transceiver Module

,

Data-center Optical Transceiver Module

,

10G SFP+ ER Optical Transceiver Module

Product Description

10Gb/s 40km SFP+ Optical Transceiver Module — CC-PII444L-xD

Experience high-performance, reliable fiber connectivity with our Optical Transceiver Module, designed for long-haul data transmission. This optical module supports 10Gb/s rates over 40km with low power consumption and robust environmental adaptability. Ideal for enterprise and telecom applications, it ensures seamless integration and superior signal integrity.

Key Features

  • Hot-pluggable SFP+ form factor
  • 1550nm cooled EML transmitter and PIN receiver
  • Low power consumption < 1.5W
  • Support for 1.2G to 11.3G data rates
  • Operating temperature: Commercial (0°C to 70°C) / Industrial (-40°C to 85°C)
  • Fully compliant with IEEE 802.3ae, SFF-8431, and CPRI standards

Technology and Standards

This optical module utilizes advanced EML laser technology and complies with international standards including IEEE 802.3ae (10GBASE-ER/EW), SFF-8431, SFF-8472, and CPRI. It ensures interoperability and reliable performance in diverse network environments.

Working Principle

The Optical Transceiver Module converts electrical signals into optical signals for transmission over single-mode fiber. The integrated cooled EML laser provides stable output at 1550nm, while the PIN receiver ensures high-sensitivity detection. Internal AC coupling and impedance matching minimize signal loss and EMI.

Applications

  • 10GBASE-ER/EW Ethernet networks
  • CPRI for wireless infrastructure
  • Data center interconnects
  • Enterprise backbone networks

Specifications

Parameter Value
Data Rate 1.25 - 11.3 Gbps
Wavelength 1550nm
Max Distance 40km
Fiber Type Single Mode
Power Consumption < 1.5W
Interface LC Duplex

Ordering Information

Model Description
CC-PII444L-SD 0°C to 70°C, with DDM
CC-PII444L-ID -40°C to 85°C, with DDM

Advantages

  • Extended temperature range for harsh environments
  • Lower power consumption than competing models
  • Enhanced EMI shielding with all-metal housing
  • Digital diagnostics monitoring (DDM) for real-time performance tracking

Service and Support

We offer a 5-year warranty, global technical support, and flexible supply options. Our team provides 24/7 consultation and integration assistance to ensure smooth deployment.

Frequently Asked Questions

Q: What is the maximum data rate supported?
A: This optical module supports rates from 1.25G to 11.3Gbps, including 10.3125Gbps for 10GbE.

Q: Is it compatible with Cisco/Juniper switches?
A: Yes, it is designed to be multi-vendor compatible. Please check our compatibility list for details.

Q: Does it support DDM/DOM?
A: Yes, both models include Digital Diagnostics Monitoring functionality.

Precautions

  • Avoid exposing the module to static electricity or physical shock.
  • Ensure proper grounding and EMI practices in host system design.
  • Use only within specified temperature and humidity ranges.

Company Introduction

Optical transceiver module 10G SFP+ ER for Data-center Ethernet High Performance, Low Power, Reliable 0

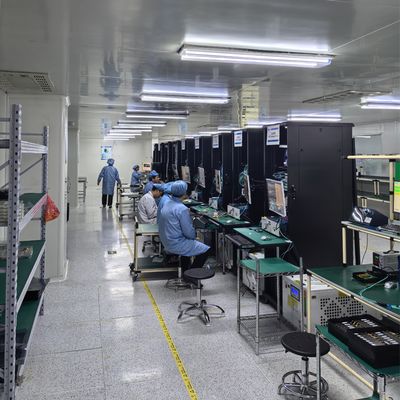

With over a decade of industry experience, we operate a large manufacturing facility and maintain a strong technical team. We represent leading brands including Mellanox, Ruckus, Aruba, and Extreme. Our product range includes original new network switches, adapters, wireless access points, controllers, and cables. We hold over 10 million units in inventory, ensuring ample supply and competitive pricing. Our commitment to quality and service has earned us a reputable standing in the global market.
