800G OSFP VR8 Optical Transceiver Module High-Speed, Low Power, CMIS-Compliant
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | 800G OSFP VR8 |
| Document: | CC-OSFP08VR8-12D_800G OSFP ...27.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | CC-OSFP08VR8-12D |
|---|---|---|---|
| Performance: | 800G OSFP VR8 | Speed: | 800G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
| Highlight: | Low Power Optical Transceiver Module,800G OSFP VR8 Optical Transceiver,CMIS-Compliant Optical Transceiver Module |
||
Product Description
800G OSFP VR8 Optical Transceiver Module — High-Speed, Low Power, CMIS-Compliant
Product Overview
The 800G OSFP VR8 optical transceiver module (model CC-OSFP08VR8-12D) is a high-performance, hot-pluggable fiber optic solution designed for next-generation data centers and high-speed computing environments. It supports 800G Ethernet and InfiniBand NDR applications with a reach of up to 50 meters over OM4 multimode fiber. Compliant with the latest industry standards, this optical transceiver module offers low power consumption, advanced diagnostics, and robust performance in demanding network environments.
Key Features
- Hot-pluggable OSFP form factor with dual MPO-12 APC connectors
- Compliant with OSFP MSA Type 2 and CMIS 5.0+
- Maximum power consumption of 17W
- Supports 8x100G breakout applications
- Digital diagnostics via I²C interface
- Operating case temperature: 0°C to 70°C
Technology & Standards
This 800G OSFP module adheres to IEEE P802.3db/D3.0 and IEEE P802.3ck standards. It uses PAM4 modulation with a signaling rate of 53.125 GBd per lane. The module is RoHS compliant and supports advanced monitoring functions as defined in the OSFP MSA.
How It Works
The transceiver converts electrical signals into optical signals using an 850nm VCSEL array. It transmits and receives data over 8 optical lanes, each operating at 100Gbps. The dual MPO-12 connectors enable parallel optic connectivity, ensuring high bandwidth and low latency for data-intensive applications.
Applications
- InfiniBand NDR systems
- 800G Ethernet data centers
- High-performance computing (HPC)
- Cloud infrastructure and hyperscale networks
- 8x100GbE breakout configurations
Specifications
| Parameter | Value |
|---|---|
| Form Factor | OSFP VR8 |
| Data Rate | 800 Gbps |
| Wavelength | 850 nm |
| Max Distance | 50m (OM4), 30m (OM3) |
| Connector | Dual MPO-12 APC |
| Power Consumption | ≤ 17W |
| Operating Temperature | 0°C to 70°C |
Advantages
- Lower power consumption compared to competitive optical transceiver modules
- Enhanced signal integrity with PAM4 modulation
- Robust construction for reliable operation in data center environments
- Backward compatibility with 100G/400G systems via breakout cabling
Service & Support
We offer a 1-year warranty, fast shipping, and 24/7 technical support. Our team provides integration assistance and compatibility verification to ensure seamless deployment.
Frequently Asked Questions
Q: What is the maximum distance supported?
A: Up to 50 meters on OM4 multimode fiber.
Q: Is this module compatible with InfiniBand NDR?
A: Yes, it is designed for InfiniBand NDR and 800G Ethernet applications.
Q: What is the power consumption?
A: Maximum power draw is 17W under full operation.
Q: Does it support digital diagnostics?
A: Yes, via the I²C interface as per CMIS 5.0.
Q: Can it be used in breakout mode?
A: Yes, it supports 8x100GbE breakout configurations.
Precautions
- Ensure compatible OSFP cages and host equipment.
- Avoid exposure to static electricity and physical shock.
- Do not exceed maximum operating temperature range.
- Use only approved cleaning tools for optical connectors.
Company Introduction

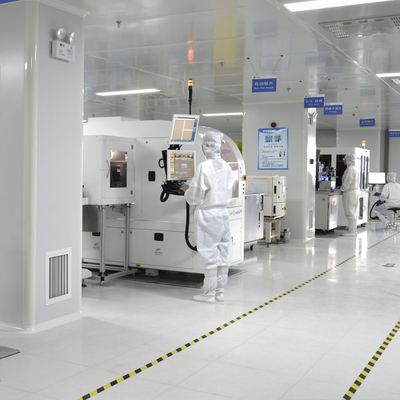

With over a decade of experience in the networking hardware industry. With a large manufacturing facility and a strong technical team, we specialize in high-quality optical transceivers and network equipment. Our product portfolio includes original brand-new switches, network adapters, wireless access points, and cables from leading brands such as Mellanox, Ruckus, Aruba, and Extreme.
