Qsfp-100g-Sr4 100gbase-Sr4 Qsfp28 Optical Transceiver Module 850nm 100m Dom MPO-12 Mmf Fiber Optic Transceivers
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | 100G QSFP28 SR4 |
| Document: | CC-QKK110M-SD_100G QSFP28 S....B.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | CC-QKK110M-SD |
|---|---|---|---|
| Performance: | 100G QSFP28 SR4 | Speed: | 100G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
| Highlight: | MPO-12 QSFP28 Optical Transceiver Module,100GBASE-SR4 QSFP28 Module,100m QSFP28 Optical Transceiver Module |
||
Product Description
Product Overview

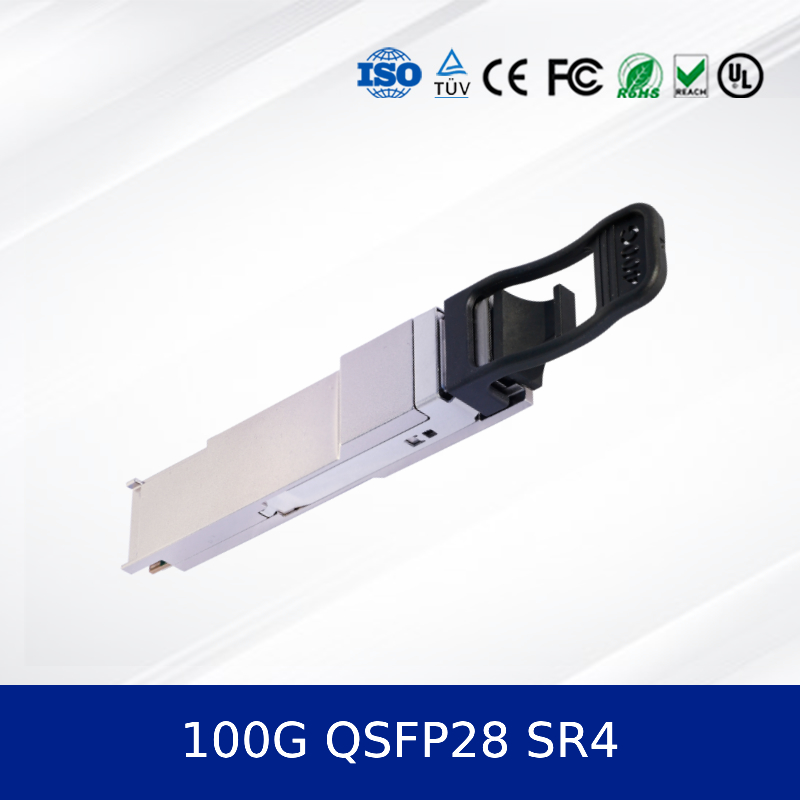

The Optical Transceiver Module model CC-QKK110M-SD is a high-performance 100G QSFP28 SR4 transceiver designed for next-generation data center and enterprise networking applications. This optical module supports data rates of up to 25.78 Gbps per channel over multimode fiber, delivering reliable and efficient connectivity for high-speed networks.
Key Features
- Compliant with IEEE 802.3bm and SFF-8665 standards
- Hot-pluggable QSFP28 form factor with MPO-12 connector
- 850 nm VCSEL-based transmitter technology
- Low power consumption (max 2.5W)
- Operating case temperature: 0°C to 70°C
Technical Specifications
| Parameter | Value |
|---|---|
| Data Rate per Channel | 25.78125 Gbps |
| Wavelength | 850 nm |
| Max Distance (OM4) | 100 m |
| Max Distance (OM3) | 70 m |
| Power Supply | +3.3V |
| Power Consumption | ≤ 2.5W |
Applications
This Optical Transceiver Module is ideal for use in:
- 100GBASE-SR4 Ethernet networks
- Data center interconnects
- High-performance computing clusters
- Cloud infrastructure
Frequently Asked Questions
What is the maximum transmission distance?
This optical module supports up to 100 m on OM4 fiber and 70 m on OM3 fiber.
Is it compatible with Cisco/Juniper switches?
Yes, it is designed to be compatible with major switch brands supporting QSFP28 SR4.
What is the operating temperature range?
The module operates reliably from 0°C to 70°C case temperature.
Company Introduction

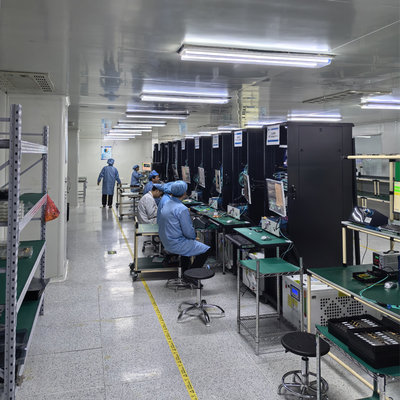

With over a decade of industry experience, we operate a large-scale manufacturing facility backed by a robust technical team. Our extensive customer base and proven track record enable us to offer competitive pricing and superior service quality. We are authorized distributors for leading brands including Mellanox, Ruckus, Aruba, and Extreme. Our product portfolio includes brand-new network switches, adapters, wireless access points, controllers, and cables. With an inventory valued over $10 million, we support bulk orders and diverse product requirements. We provide 24/7 customer service and technical support, ensuring timely delivery and reliable post-sale assistance. Our professional sales and engineering teams have established a strong reputation in the global market.
