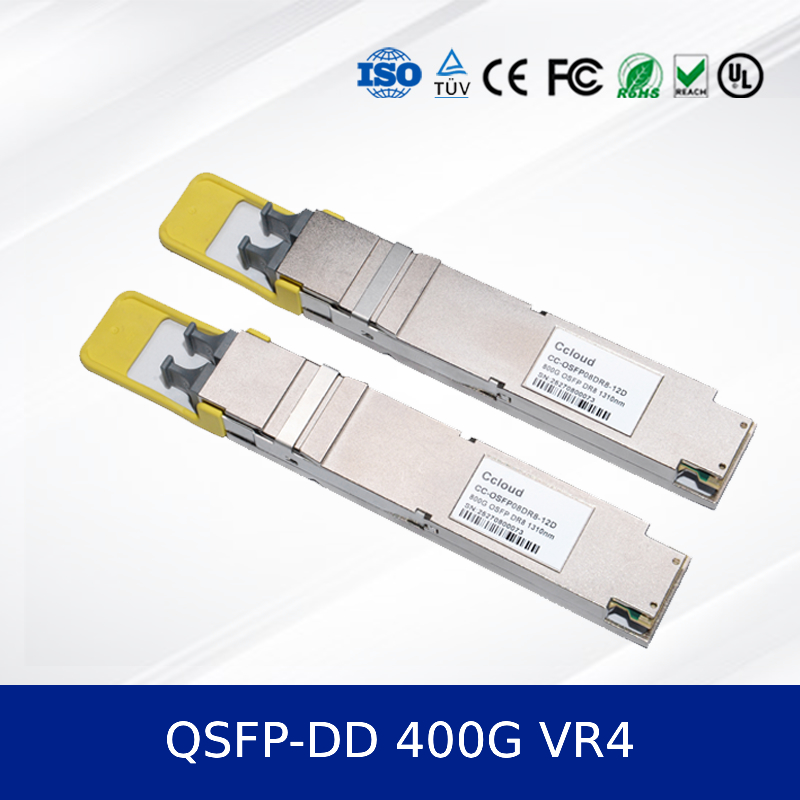

400G QSFP-DD VR4 Optical Transceiver Module 50m Reach, PAM4, CMIS 5.0
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | QSFP-DD 400G VR4 |
| Document: | QSFP-DD 400G VR4.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | QSFP-DD 400G VR4 |
|---|---|---|---|
| Performance: | QSFP-DD 400G VR4 | Speed: | 400G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
Product Description
400G QSFP-DD VR4 Optical Transceiver – 50m Reach, PAM4, CMIS 5.0
1. Product Overview
The 400G QSFP-DD VR4 Optical Transceiver (CC-QSFD04VR4-12D) is a high-performance, hot-pluggable optical module designed for next-generation data center and high-performance computing networks. It supports 400G Ethernet over multimode fiber with a reach of up to 50m on OM4 fiber. The transceiver utilizes PAM4 modulation and complies with the latest QSFP-DD MSA and CMIS 5.0 standards, ensuring broad compatibility and future-proofing.
2. Key Characteristics
- Data rate: 425 Gbps (4x 106.25 Gbps)
- Reach: Up to 50m on OM4 MMF
- Wavelength: 850nm VCSEL laser and PIN receiver
- Single MPO-12 connector
- Low power consumption: ≤7W (typical)
- Hot-pluggable QSFP-DD form factor
- Operating temperature: 0°C to +70°C
- RoHS 6/6 compliant
3. Technology & Standards
The transceiver is built on PAM4 modulation technology and supports 400GAUI-8 electrical interface. It is fully compliant with:
- IEEE 802.3db & IEEE 802.3bs
- QSFP-DD MSA Hardware Rev 5.0
- CMIS 5.0 Management Interface
- IEC/EN 60825-1 Laser Safety Class 1
4. Working Principle
The module converts 8x 53.125 GBaud electrical signals into four optical lanes using VCSEL arrays and PAM4 encoding. The optical signals are transmitted via an MPO-12 connector over OM4 multimode fiber. On the receiver side, a PIN photodiode array converts the optical signals back into electrical data with integrated clock and data recovery (CDR).
5. Applications
- Data center spine-leaf networks
- High-performance computing (HPC) clusters
- Cloud infrastructure interconnects
- Enterprise core and aggregation switching
- AI and machine learning fabric networks
6. Specifications
| Parameter | Value | Unit |
|---|---|---|
| Data Rate | 425 Gbps | Gbps |
| Wavelength | 850 nm | nm |
| Max Reach | 50 | m |
| Connector | MPO-12 | - |
| Power Consumption | ≤7 | W |
| Operating Temperature | 0 to +70 | °C |
| Modulation | PAM4 | - |
| Compliance | QSFP-DD MSA, CMIS 5.0 | - |
7. Advantages & Selling Points
- Lower power consumption vs. competitive network card solutions
- Enhanced diagnostics with CMIS 5.0 management interface
- Robust design supporting industrial temperature ranges
- Backward compatible with QSFP28 ports using adapter cables
- High-density form factor ideal for scalable data center deployments
8. Service & Support
All transceivers come with a 5-year warranty. We offer global shipping, 24/7 technical support, and custom labeling and packaging. OEM and ODM services are available for bulk orders.
9. FAQ
Q: Is this transceiver compatible with QSFP28 ports?
A: Yes, with an MPO-to-MPO breakout cable, it can be used in QSFP28 ports supporting 100G SR4.
Q: What is the maximum power consumption?
A: The module consumes ≤7W under normal operation.
Q: Does it support digital diagnostics monitoring (DDM)?
A: Yes, via the CMIS 5.0 interface.
10. Precautions
- Use only with OM3/OM4 multimode fiber.
- Avoid bending fiber beyond minimum bend radius.
- Ensure clean optical connectors to prevent signal loss.
- Do not exceed maximum operating temperature.
- Follow ESD precautions during handling and installation.
