25G SFP28 SR 100M Optical Transceiver Module 850nm 100m OM4 MMF with DDM
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | 25G SFP28 SR 100M |
| Document: | CC-PMM110L-SD_25G SFP28 SR ...1).pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | CC-PMM110L-SD |
|---|---|---|---|
| Performance: | 25G SFP28 SR 100M | Speed: | 25G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
Product Description

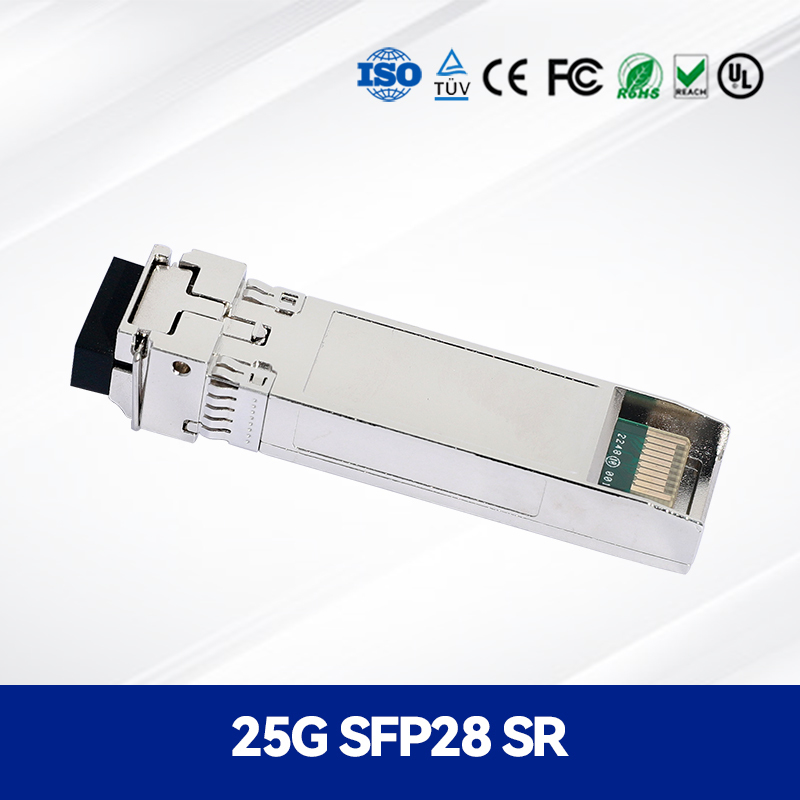

25G SFP28 SR 100M Optical Transceiver Module — High-Speed, Low Power, Industrial Temperature
1.25G SFP28 SR 100M Product Overview
The CC-PMM110L-SD is a high-performance 25G SFP28 SR optical transceiver module designed for short-range multi-mode fiber applications. It supports data rates up to 25.78125 Gbps and is ideal for data centers, enterprise networks, and high-speed computing environments. This optical module offers reliable performance with low power consumption and industrial temperature range support.
2. SFP28-SR Key Features
- 25Gbps data rate over multi-mode fiber
- 850nm VCSEL transmitter and PIN photodiode receiver
- Operating temperature: 0°C to 70°C
- Reach up to 70m on OM3 and 100m on OM4 MMF
- Low power consumption (<1W)
- Digital diagnostics monitoring via SFF-8472
- Dual LC connector interface
3. 25G SFP28 SR 100M Technology & Standards
This optical transceiver module complies with industry standards including SFF-8024, SFF-8431, SFF-8432, and SFF-8472. It incorporates CDR (Clock and Data Recovery) technology for reduced jitter and improved signal integrity. The module is also Class I laser safety certified.
4. SFP28-SR Working Principle
The optical module converts electrical signals into optical signals using a VCSEL laser transmitter. The receiver side uses a GaAs PIN photodiode to convert incoming optical signals back into electrical data. Internal CDR circuits ensure minimal jitter and high signal accuracy.
5. SFP28-SR Applications
- Data center interconnects
- 25G Ethernet switches and routers
- High-performance computing clusters
- Network storage systems
- Enterprise network infrastructure
6. Specifications
| Parameter | Value | Unit |
|---|---|---|
| Data Rate | 25.78125 | Gbps |
| Wavelength | 850 | nm |
| Max Distance (OM4) | 100 | m |
| Power Consumption | <1 | W |
| Supply Voltage | 3.3 | V |
7. Advantages
- Low jitter and high sensitivity for improved BER
- Wide operating temperature range suitable for industrial use
- Compliant with MSA standards for broad compatibility
- Integrated DDM for real-time performance monitoring
8. Service & Support
We offer a 5-year warranty, global shipping, and 24/7 technical support. Our team provides integration assistance and compatibility verification to ensure seamless deployment.
9. Frequently Asked Questions
Q: What is the maximum distance supported?
A: This optical transceiver module supports up to 100m on OM4 multi-mode fiber.
Q: Is it compatible with Cisco switches?
A: Yes, it is MSA-compliant and compatible with most major brands.
Q: Does it support digital diagnostics?
A: Yes, it fully supports DDM as per SFF-8472.
10. Precautions
- Use only with compatible SFP28 ports
- Avoid bending fiber cables beyond recommended radius
- Ensure proper ESD protection during handling
- Do not exceed maximum optical input power
11. Company Introduction

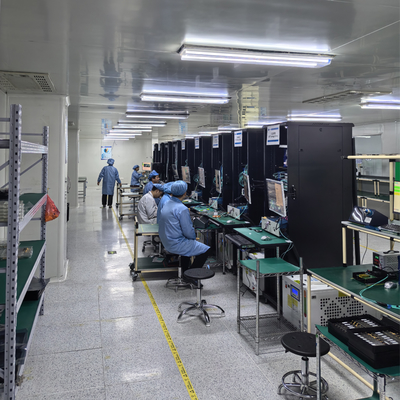

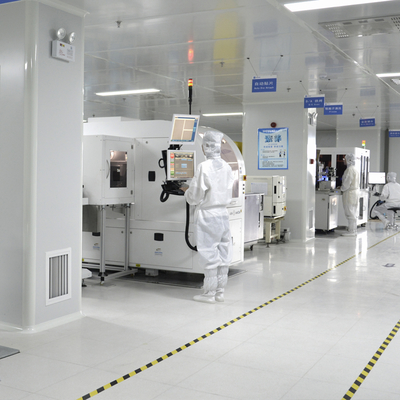

With over a decade of industry experience, we operate a large-scale manufacturing facility supported by a strong technical team. We partner with leading brands including Mellanox, Ruckus, Aruba, and Extreme. Our product portfolio includes network switches, adapters, wireless access points, controllers, and cables. We maintain a $10M inventory to support bulk orders and provide 24/7 customer service and technical consultation. Our professional sales and engineering teams have established a trusted reputation in the global market.
