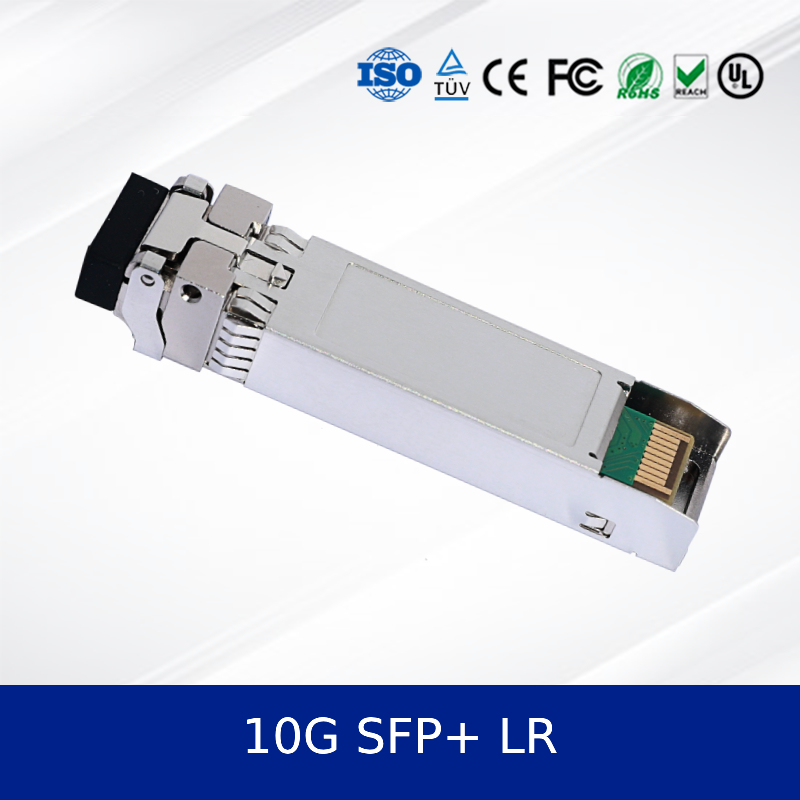

SFP+ 10G-LR Optical Transceiver Module High Performance Low Power Reliable Connectivity
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | SFP+ 10G-LR |
| Document: | CC-PII221L-SD_10G SFP+ LR ...1).pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | CC-PII221L-XD |
|---|---|---|---|
| Performance: | 10G SFP+ LR | Speed: | 10G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
| Highlight: | Reliable SFP+ Optical Transceiver,Low Power SFP+ Optical Transceiver,10G-LR SFP+ Optical Transceiver |
||
Product Description
10Gb/s 10km SFP+ Optical Transceiver Module — High Performance, Low Power, Reliable Connectivity
1.SFP+ 10G-LR Product Overview
The SFP+ 10G-LR is a high-performance 10Gb/s SFP+ optical transceiver module designed for long-range data transmission over single-mode fiber. This optical module supports link distances up to 10km and is ideal for data centers, enterprise networks, and telecom applications. It features a 1310nm DFB transmitter and PIN receiver, ensuring low power consumption and high reliability. This 800g osfp compatible form factor device is fully compliant with industry standards, including IEEE 802.3ae, SFF-8431, and SFF-8472.
2. SFP+ 10G-LR Key Features
- Hot-pluggable SFP+ form factor
- Duplex LC optical interface
- 1310nm DFB laser and PIN photo detector
- Operating temperature: Commercial (0°C to 70°C) / Industrial (-40°C to 85°C)
- Low power consumption (<300mA)
- Advanced DDM/DOM monitoring support
- Metal housing for enhanced EMI performance
- RoHS compliant and lead-free
3. SFP+ 10G-LR Technology & Standards
This optical transceiver module complies with IEEE 802.3ae 10GBASE-LR/LW standards and supports SFF-8431 and SFF-8472 specifications. It uses advanced DFB laser technology and digital diagnostics monitoring (DDM) for real-time performance tracking.
4. SFP+ 10G-LR Working Principle
The module converts electrical signals into optical signals using a 1310nm DFB laser. The transmitted light travels through single-mode fiber and is received by a PIN photodiode, which converts it back into electrical signals. The module includes AC-coupled data lines and differential impedance matching for signal integrity.
5. 10G SFP+ LR Applications
- 10GbE data center interconnects
- Enterprise backbone networks
- Telecom and metro access networks
- Storage area networks (SANs)
- Other high-speed optical links
6. Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Data Rate | - | 10.3125 | - | Gbps |
| Wavelength | 1260 | 1310 | 1355 | nm |
| Output Power | -8.2 | - | 0.5 | dBm |
| Receiver Sensitivity | - | - | -14.4 | dBm |
| Supply Current | - | - | 300 | mA |
7. Advantages
- Wide operating temperature range for industrial use
- Enhanced EMI shielding with all-metal housing
- Low power consumption reduces operational costs
- Advanced firmware supports encryption and customization
- Compatible with major networking equipment brands
8. Service & Support
We offer a comprehensive warranty, fast delivery, and 24/7 technical support. Our team provides integration assistance and ensures compatibility with your existing infrastructure.
9. Frequently Asked Questions
Q: What is the maximum distance supported by this optical transceiver module?
A: It supports up to 10km over single-mode fiber.
Q: Is this module compatible with Cisco/Juniper/HP switches?
A: Yes, it is designed to be multi-vendor compatible. Please check specific model compatibility.
Q: Does it support digital diagnostics monitoring (DDM)?
A: Yes, it provides full DDM/DOM functionality per SFF-8472.
10.SFP+ 10G-LR Precautions
- Avoid direct exposure to static electricity.
- Ensure proper grounding and EMI practices in installation.
- Do not exceed absolute maximum ratings for voltage and temperature.
- Use recommended host board filtering for noise-sensitive applications.
