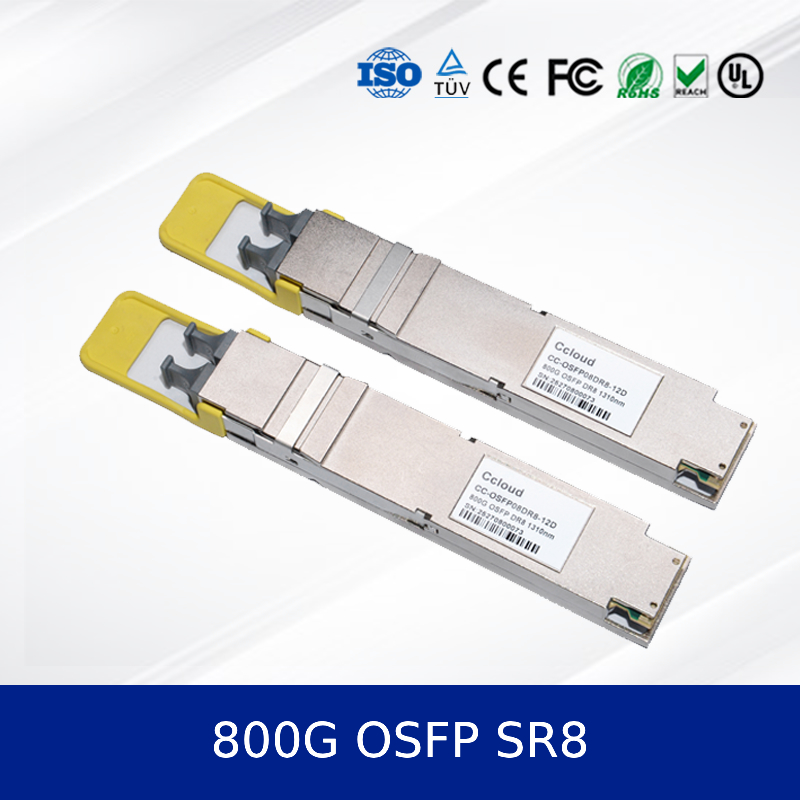

800G OSFP SR8 Optical Transceiver Module High-Speed, Low Power, MSA Compliant
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | 800G OSFP SR8 |
| Document: | CC-OSFP08SR8-12D_800G OSFP ...27.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | CC-OSFP08SR8-12D |
|---|---|---|---|
| Performance: | 800G OSFP SR8 | Speed: | 800G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
Product Description
800G OSFP SR8 Optical Transceiver — High-Speed, Low Power, MSA Compliant
1. Product Overview
800G OSFP SR8 optical transceiver module designed for high-bandwidth data centers and high-performance computing environments. It supports 800G Ethernet and InfiniBand NDR applications over multimode fiber with a reach of up to 100m on OM4. Compliant with industry standards, this hot-pluggable module offers low power consumption and robust performance.
2. Key Features
- Hot-pluggable OSFP form factor with dual MPO-12 APC connectors
- Compliant with OSFP MSA, IEEE P802.3db/D3.0, and IEEE P802.3ck
- Supports CMIS Rev 5.0+ for advanced management
- Maximum power consumption: 17W (1.5W in low-power mode)
- Reach: 70m on OM3, 100m on OM4 multimode fiber
- Digital diagnostics via I2C interface
3. Technology & Standards
This optical module uses PAM4 modulation with a per-lane signaling rate of 53.125 GBd. It complies with the OSFP MSA Type2 specification and supports Common Management Interface Specification (CMIS) Rev 5.0 or later for seamless integration and monitoring.
4. Working Principle
The transceiver converts electrical signals from the host system into optical signals using VCSEL arrays, transmitting over eight parallel fiber lanes. On the receive side, it converts incoming optical signals back to electrical data using integrated photodiodes, ensuring high-speed, low-latency communication.
5. Applications
- InfiniBand NDR interconnects
- 800G SR8 Ethernet networks with FEC
- 8x100GbE breakout applications
- Data center spine-leaf architectures
- High-performance computing clusters
6. Specifications
| Parameter | Min | Typical | Max | Unit |
|---|---|---|---|---|
| Operating Temperature | 0 | — | 70 | °C |
| Supply Voltage | 3.135 | 3.3 | 3.465 | V |
| Power Consumption | — | — | 17 | W |
| Tx Output Power (per lane) | -4.6 | — | 4.0 | dBm |
| Rx Sensitivity (per lane) | — | — | -4.6 | dBm |
7. Advantages
- Lower power consumption compared to competing optical transceiver modules
- Dual MPO-12 connectors enable easy integration and high port density
- Advanced digital diagnostics for real-time monitoring and management
- Designed for compatibility with major switch and router platforms
8. Service & Support
We offer a 3-year warranty, global shipping, and 24/7 technical support. Our team provides integration assistance and custom configuration upon request.
9. Frequently Asked Questions
Q: What is the maximum distance supported?
A: Up to 70m on OM3 and 100m on OM4 multimode fiber.
Q: Is this module compatible with 100G breakout modes?
A: Yes, it supports 8x100GbE breakout applications.
Q: What is the operating temperature range?
A: 0°C to 70°C case operating temperature.
10. Precautions
- Ensure proper ESD handling during installation.
- Use only approved cleaning tools for MPO connectors.
- Verify host system compatibility before deployment.
- Avoid bending fiber beyond minimum bend radius.
