Ethernet High-Performance 40g Qsfp+ Bidi 850/908nm 40G QSFP+ BIDI SR Optical Transceiver Module Qsfp+ Bidi Module
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | 40G QSFP+ BIDI SR |
| Document: | CC-QJJ110L-SD_40G QSFP+ BI...09.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | CC-QJJ110L-SD |
|---|---|---|---|
| Performance: | 40G QSFP+ BIDI SR | Speed: | 40G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
| Highlight: | 40g Qsfp+ Bidi Module,850/908nm Qsfp+ Bidi Transceiver |
||
Product Description

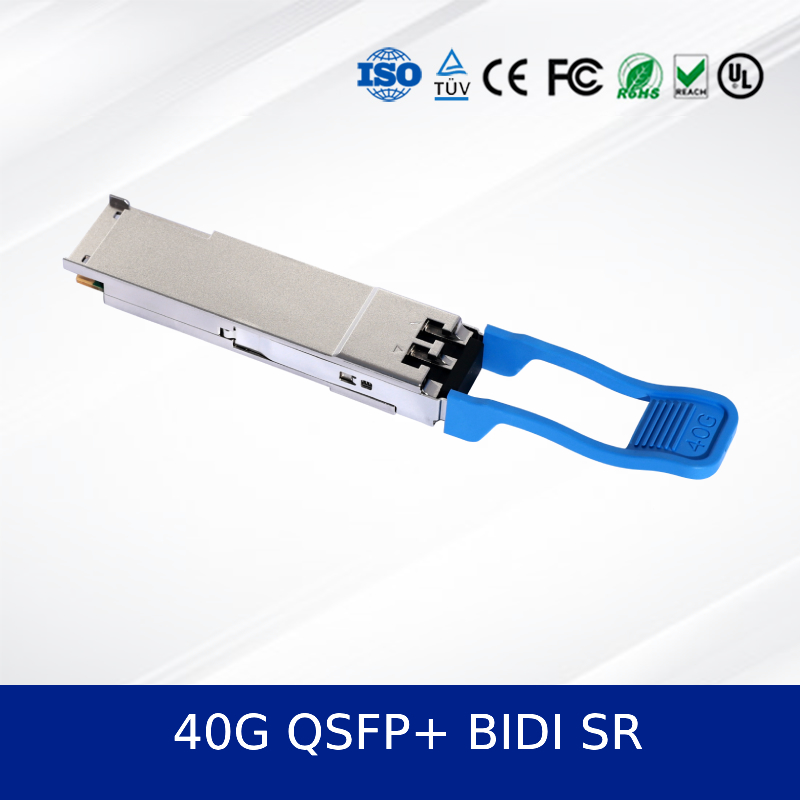

40Gb/s QSFP+ BIDI 850/908nm Optical Transceiver Module — High Density, Low Power, Bi-Directional
1. 40G QSFP+ BIDI SR Product Overview
The CC-QJJ110L-SD is a high-performance 40Gb/s QSFP+ Bi-Directional (BIDI) optical transceiver module designed for high-speed data center and enterprise networking applications. It supports dual wavelength technology (850nm/908nm) over a single fiber strand, enabling efficient use of fiber infrastructure. This optical module operates on a 3.3V power supply and is housed in a rugged metal casing for enhanced durability.
2. 40G QSFP+ BIDI SR Key Characteristics
- Supports 40Gbps data rate with 4x10G NRZ to 2x20G NRZ conversion
- Hot-pluggable QSFP+ form factor
- Reach up to 70m on OM3 and 100m on OM4 multimode fiber
- Dual-wavelength VCSEL-based Bi-Directional optical interface
- Digital diagnostics monitoring with maskable interrupts
- Low power consumption: max 3.5W
- Operating case temperature: 0°C to 70°C
- RoHS II compliant
3. 40G QSFP+ BIDI SR Technology & Standards
This optical transceiver module complies with QSFP+ MSA standards and uses NRZ modulation. It supports Bi-Directional communication over a single fiber via wavelength division multiplexing (WDM). The device is designed to meet Class 1 laser safety standards per IEC 60825-1 and FDA regulations.
4. 40G QSFP+ BIDI SR Working Principle
The module converts 4x10.3125 Gbps electrical input signals into 2x20.625 Gbps optical signals using two different wavelengths (850nm and 908nm). These are transmitted and received over a single LC fiber interface, allowing full-duplex 40G communication. Integrated DSP ensures signal integrity and monitoring capabilities.
5. 40G QSFP+ BIDI SR Applications
- Data center interconnects and spine-leaf architectures
- High-performance computing (HPC) clusters
- Enterprise network aggregation
- Cloud infrastructure and storage area networks (SAN)
6. 40G QSFP+ BIDI SR Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | 3.135 | 3.3 | 3.465 | V |
| Power Consumption | - | - | 3.5 | W |
| Tx Output Power | -6.2 | - | 4 | dBm |
| Receiver Sensitivity | - | - | -7.1 | dBm |
| Operating Temperature | 0 | 25 | 70 | °C |
7. Advantages
- Bi-Directional design reduces fiber count and infrastructure cost
- Low power consumption enhances energy efficiency
- Robust metal housing improves thermal performance and reliability
- Digital monitoring allows real-time diagnostics and maintenance
- Compatible with major OEM switches and routers
8. Service & Support
We offer a 3-year warranty on all optical transceiver modules. Technical support is available 24/7. Custom labeling and compatibility testing services are provided. Bulk pricing and OEM options are available.
9. Frequently Asked Questions
Q: What is the maximum distance supported by this optical module?
A: It supports up to 70m on OM3 and 100m on OM4 fiber.
Q: Is this module compatible with Cisco/Juniper/ switches?
A: Yes, it is designed to be compatible with major brands. Please confirm model-specific compatibility.
Q: Does it support digital diagnostics monitoring (DDM)?
A: Yes, it provides full DDM support for real-time monitoring.
10. Precautions
- Avoid electrostatic discharge (ESD) during handling
- Do not expose the laser beam to eyes or skin
- Operate within specified temperature and voltage ranges
- Use only compatible fiber optic cables and connectors
