5GHz Extreme Wireless Access Points AP -7632 -680B30 -WR Integrated Antenna Dual Radio
Product Details:
| Brand Name: | Extreme |
| Model Number: | AP-7632-680B30-WR |
| Document: | ap-7632-data-sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Supported Frequency: | 5GHz And 2.4GHz | Type: | Indoor Access Point |
| Transmission Standard: | 802.11ac | Maximum Conducted Transmit Power: | 26 DBm |
| Antenna: | Integrated Antenna | Warranty: | 1 Year |
| Name: | Extreme Wireless Access Points | Keywords: | Extreme Wireless Access Points AP -7632 -680B30 -WR Integrated Antenna Dual-Radio |
| Highlight: | 5GHz Extreme Wireless Access Points,AP-7632-680B30-WR Extreme Wireless Access Points |
||
Product Description

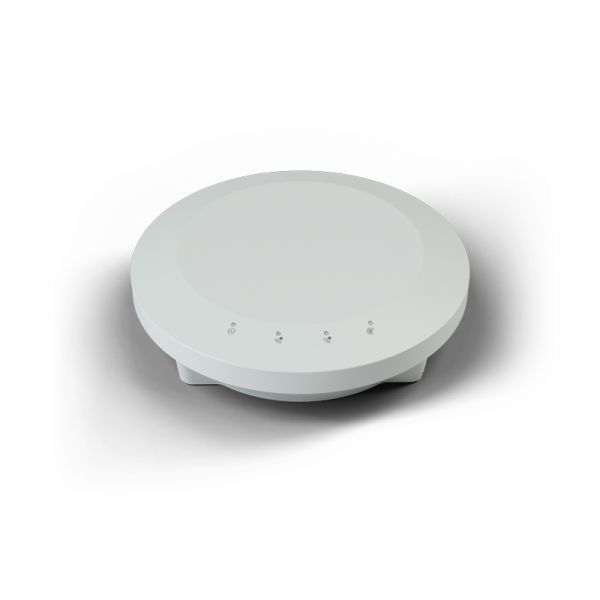

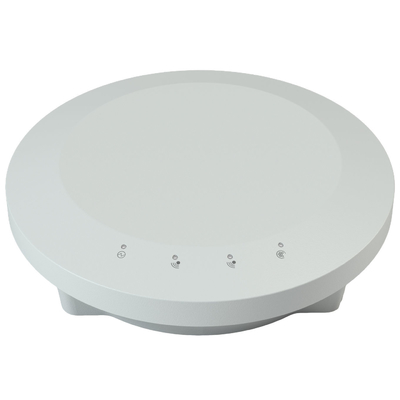

ExtremeWireless™ WiNG AP-7632-680B30-WR Indoor Access Point
1. Product Overview
The ExtremeWireless WiNG AP-7632-680B30-WR is a high-performance indoor Wireless Access Point designed for modern enterprise and industrial environments. Supporting 802.11ac Wave 2 technology with MU-MIMO, this Access Point delivers reliable, high-speed connectivity for high-density deployments. It features integrated application visibility, security sensing, and cloud-ready management through ExtremeCloud™.
2. Key Features
- Dual-band 802.11ac Wave 2 with MU-MIMO support
- Integrated Deep Packet Inspection (DPI) for application control
- Bluetooth Low Energy (BLE) and IoT radio support
- Cloud-managed via ExtremeCloud™ with zero-touch provisioning
- Plenum-rated housing with multiple mounting options
- Integrated AirDefense™ security sensor
3. Technology & Standards
The AP-7632 supports a wide range of wireless standards including 802.11a/b/g/n/ac, with advanced features such as:
- MU-MIMO, Beamforming, LDPC, STBC
- WPA2, WPA3, 802.1X, RADIUS, Captive Portal
- BLE 4.2 and IEEE 802.15.4 for IoT connectivity
- SNMP v1/v2c/v3, DHCP Server/Client, VLAN support
4. Working Principle
The Access Point operates by receiving and transmitting wireless signals using 2x2 MIMO antennas. It processes traffic locally with an integrated DPI engine, applies QoS and security policies, and can offload management to ExtremeCloud™. The integrated sensor continuously monitors for rogue devices and threats, ensuring a secure wireless environment.
5. Applications
- Enterprise and campus WLANs
- K-12 and higher education classrooms
- Retail and hospitality guest access
- Manufacturing and warehouse logistics
- Healthcare and conference facilities
6. Specifications
| Attribute | Value |
|---|---|
| Model | AP-7632-680B30-WR |
| Wi-Fi Standards | 802.11a/b/g/n/ac Wave 2 |
| MIMO Configuration | 2x2:2 MU-MIMO |
| Antennas | Internal (4dBi 2.4GHz, 6dBi 5GHz) |
| Ethernet Ports | 1x Gigabit (802.3af/at PoE) |
| USB Port | USB 2.0 (on external antenna model) |
| Operating Temperature | 0°C to 40°C |
| Power Consumption | 11W typical, 4.8W idle |
| Mounting | Ceiling, wall, T-bar |
7. Advantages
- Full performance with standard 802.3af PoE
- Integrated security and application visibility without extra hardware
- Future-ready for cloud management with ExtremeCloud™
- High-density support with MU-MIMO and band steering
- Extended temperature range available (external antenna model)
8. Service & Support
We offer lifetime limited warranty, 24/7 technical support, and global shipping. Our team provides pre-sales consultation, post-sales troubleshooting, and integration services to ensure seamless deployment.
9. Frequently Asked Questions
Q: Does this Access Point support cloud management?
A: Yes, it is compatible with ExtremeCloud™ for centralized management.
Q: Can it be powered via PoE?
A: Yes, it supports both 802.3af and 802.3at PoE standards.
Q: Is the antenna removable?
A: This model has internal antennas. For external antennas, consider the AP-7632-680B40 variant.
10. Precautions
- Ensure proper ventilation and avoid obstructing antennas.
- Use only approved power sources and PoE injectors.
- Comply with local regulatory requirements for channel usage.
- Verify compatibility with existing network controllers or cloud platforms.
