Extreme wireless access points AP -8432 -680B30 -1 -WR Dual-Radio 802.11ac/802.11n 2.4GHz 3x3 5GHz 4x4
Product Details:
| Brand Name: | Extreme |
| Model Number: | AP-8432-680B30-1-WR |
| Document: | ap-8432-data-sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Supported Frequency: | 5GHz And 2.4GHz | Type: | Indoor Access Point |
| Transmission Standard: | 802.11ac | Weight: | 1.27kg |
| Dimensions: | 210mm X 210mm X 46mm | Warranty: | 1 Year |
Product Description

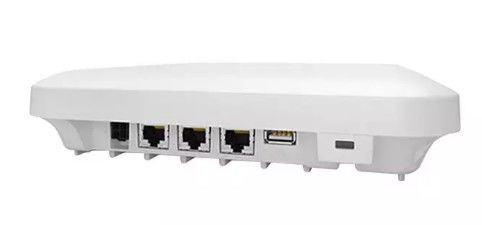

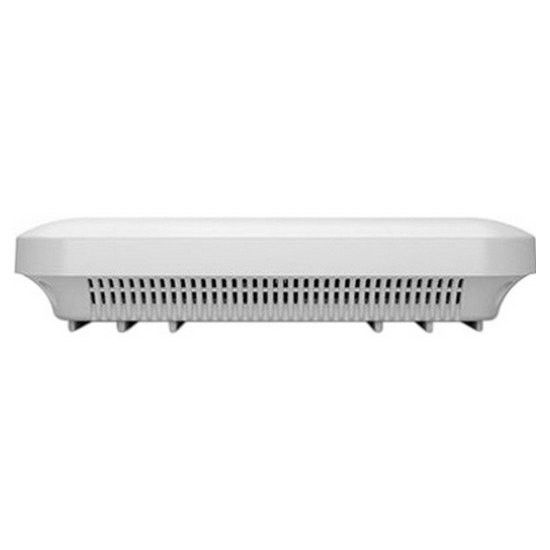

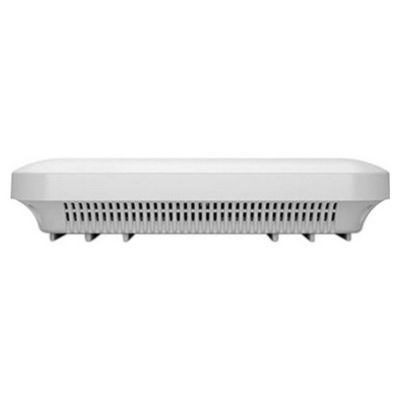

ExtremeWireless™ WiNG AP 8432 Wave 2 Access Point
1. Product Overview
The ExtremeWireless WiNG AP 8432 is a high-performance, tri-radio 802.11ac Wave 2 Access Point designed for enterprise-grade security, IoT readiness, and superior wireless performance. It features integrated Bluetooth and spectrum sensors, making it ideal for high-density environments requiring seamless connectivity, advanced security, and location-based services.
2. Key Characteristics
- Tri-radio design: Dual-band Wi-Fi plus dedicated Bluetooth radio
- 4x4 MU-MIMO with four spatial streams
- Integrated full-time RF spectrum and Bluetooth sensors
- Dual Gigabit Ethernet ports with PoE Out support
- Support for up to 500 client devices per AP
- Apple iBeacon and Google Eddystone compatible
3. Core Technologies
The AP-8432 leverages 802.11ac Wave 2 standards, MU-MIMO, NitroQAM, and advanced security protocols including WPA3, WIPS, and integrated IDS/IPS. It also supports Layer 3 routing, stateful firewalling, and Deep Packet Inspection (DPI).
4. Working Principle
The Access Point operates with three internal radios: one for 2.4GHz Wi-Fi, one for 5GHz Wi-Fi, and one dedicated to Bluetooth and spectrum sensing. It continuously scans for threats, optimizes traffic via MU-MIMO, and supports IoT devices through its secondary PoE-enabled port.
5. Applications
Ideal for retail, healthcare, education, and large enterprises. Supports high-density client environments, location-based marketing, rogue device detection, and IoT integration such as IP cameras and environmental sensors.
6. Specifications
| Attribute | Value |
|---|---|
| Model | AP-8432-680B30-WR |
| Wi-Fi Standards | 802.11a/b/g/n/ac Wave 2 |
| MIMO | 4x4:4 MU-MIMO |
| Max Data Rate | 2.4GHz: 800 Mbps; 5GHz: 2166 Mbps |
| Ethernet Ports | 2x Gigabit (PoE Out supported) |
| Bluetooth | Integrated v2.0+ |
| Power Consumption | Max 26W (with PoE Out) |
| Dimensions | 210mm x 210mm x 46mm |
| Weight | 1.27 kg |
| Operating Temperature | 0°C to 60°C |
7. Advantages
- Full-time dual-band scanning for enhanced security
- Built-in Bluetooth for customer engagement and device tracking
- Dedicated RF sensor for interference detection without performance impact
- Seamless IoT integration with PoE Out support
- Scalable deployment supporting up to 25,000 APs under NOC
8. Service & Support
We offer 24/7 technical support, worldwide shipping, and professional integration services. All products come with a standard manufacturer warranty. Bulk order discounts available.
9. FAQ
Q: Does this Access Point support Bluetooth Low Energy (BLE)?
A: Yes, it supports Apple iBeacon and Google Eddystone for BLE communication.
Q: Can I use the second Ethernet port for an IP camera?
A: Yes, the secondary port supports PoE Out and can power compatible devices.
Q: What is the maximum number of clients supported?
A: Up to 500 clients per AP-8432.
10. Precautions
- Ensure proper ventilation and operating temperature range.
- Verify local regulatory restrictions for RF power settings.
- Use compatible Extreme controllers for full feature support.
- Avoid mounting near heavy metal obstructions or high-interference sources.
