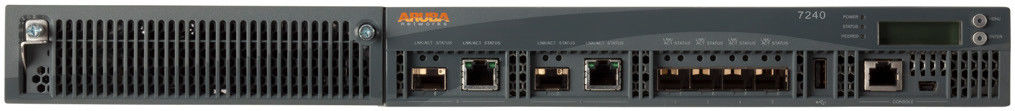

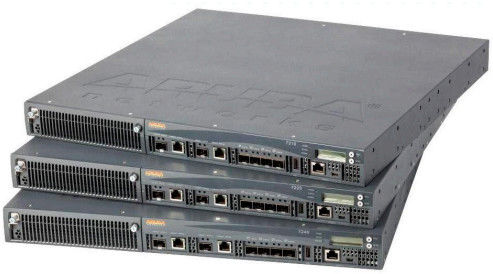

1024AP Wireles Aruba 7220 Mobility Controller Access Point 7220-RWJW751A

1024AP Wireles Aruba 7220 Mobility Controller Access Point 7220-RWJW751A

Wireles aruba 7220 mobility controller

1024AP aruba 7220 mobility controller

1024AP aruba access point controller

Brand Name:


Model Number:



Request A Quote
Product Details
Products Status:
Lead Time:
According To Stock
Maximum Campus Or Remote AP Licenses:
0G Ports (10G Or 1G Supported):
Maximum VLAN:
Concurrent GRE Tunnels:
Firewall Throughput (Gbps):
Encrypted Throughput 3DES (Gbps):
Form Factor/footprint:
7.45 Kg (16.43 Lbs)
Product Description

7240XM-RW H PE JW783A - Aruba Controllers JW783A

Flexible use cases

upport data centers, public cloud, and SaaS routing by deploying the 7200 Series as a controller with ArubaOS or as a SD-Branch gateway.

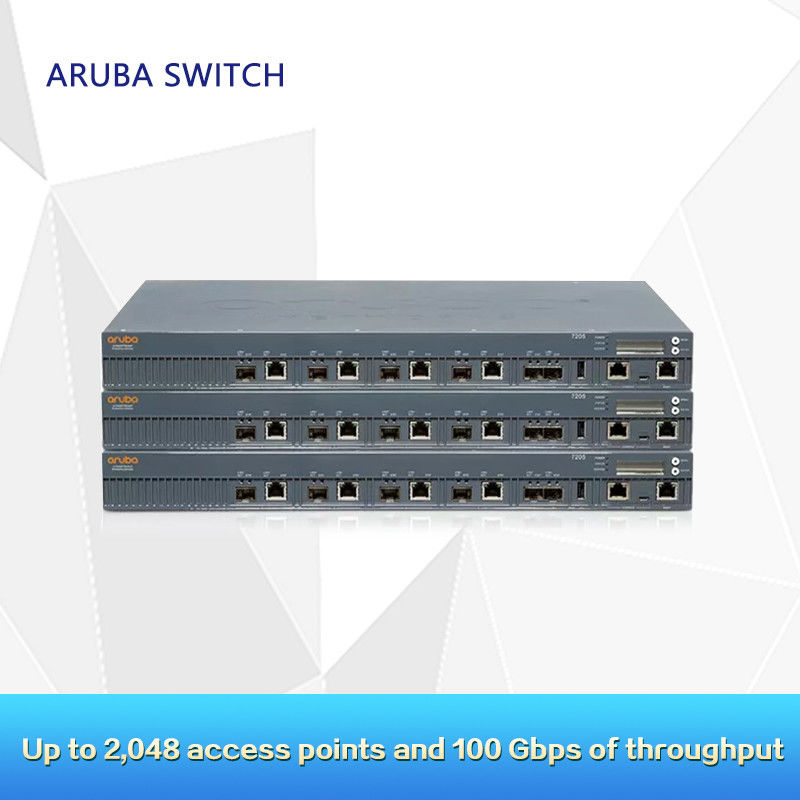

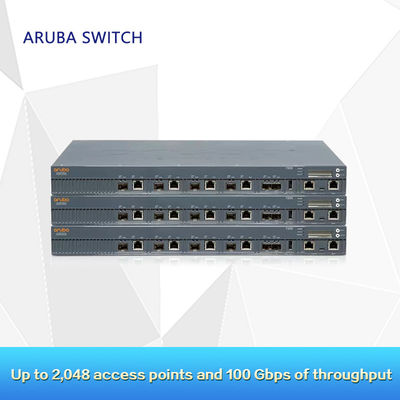

Up to 2,048 access points and 100 Gbps of throughput

Providing connectivity for up to 32,728 concurrent users or client devices, the 7200 Series is ideal for the most demanding enterprise, higher education, and large public venue requirements.

Dynamic Segmentation for simplicity and security

Enforcing granular user, device, and application policies over both access points and network switches means there's no need to configure separate VLANs, ACLs, and subnets.


Supports for Wi-Fi standards

Offering WPA and Enhanced Open as part of 802.11ax, the 7000 provides enhanced security and backwards compatibility.

Machine learning and advanced analytics

AirMatch applies machine learning to automate RF optimization and adapt to changing WLAN conditions, while ClientMatch improves client roaming and resolves sticky client issues.



Features 7205 7210 7220 7240XM 7280
Maximum campus or remote AP licenses 256 512 1,024 2,048 2,048
Maximum concurrent users/devices 8,192 16,384 24,576 32,768 32,768
Maximum VLANs 4,096 4,096 4,096 4,096 4,096
Active firewall sessions 1 million (M) 2M 2M 2M 2M
Concurrent GRE tunnels 4,096 8,192 16,384 32,768 32,768
Concurrent IPsec sessions 8,192 16,384 24,576 32,768 32,768
Concurrent SSL sessions 4,096 8,192 8,192 8,192 8,192
Features 7205 7210 7220 7240XM 7280
Form factor/footprint 1xRU 1xRU 1xRU 1xRU 1xRU
10/100/1000BASE-T 4xCombo 2xCombo 2xCombo 2xCombo
10G Ports (10G or 1G supported) 2xSFP+ 4xSFP+ 4xSFP+ 4xSFP+ 8xSFP+
40G Ports 2xQSFP+
USB 2.0 2 1 1 1 1
Management/status LEDs Yes Yes Yes Yes Yes
LINK/ACT and status LEDs Yes Yes Yes Yes Yes
LCD panel and navigation buttons Yes Yes Yes Yes Yes
Console port Micro USB, RJ-45 Mini USB, RJ-45 Mini USB, RJ-45 Mini USB, RJ-45 Micro USB, RJ-45
Out-of-band management port Yes No No No Yes
Features 7205 7210 7220 7240XM 7280
Dimensions (HxWxD) (H) 4.4 cm x
(W) 44.2 cm x
(D) 33.4 cm (1.75” x 17.38” x
(H) 4.4 cm x (W) 44.5 cm x (D) 44.5 cm
(1.75” x 17.5” x 17.5”)
(H) 4.4 cm x
(W) 44.2 cm x
(D) 40.1 cm (1.73” x 17.40” x
Weight 4.95 kg (10.19 lbs.) 7.45 kg (16.43 lbs.) 7.9 kg (17.41 lbs)
MTBF (Hours) 129,597 (@40C) 106,536 (@40C) 113,751 (@40C) 116,590 (@40C) 281,896 (@45C)
