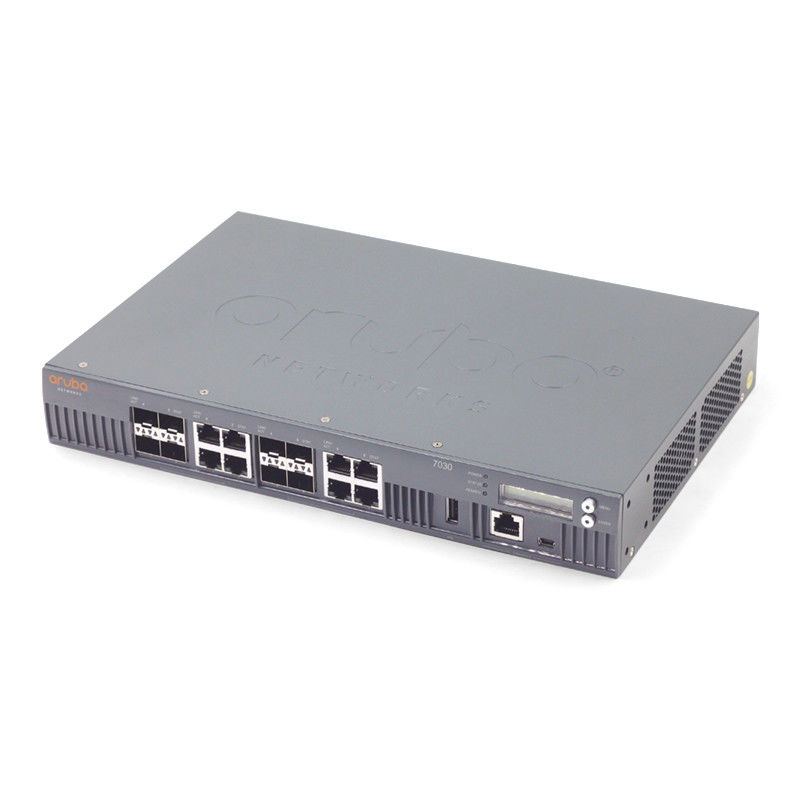

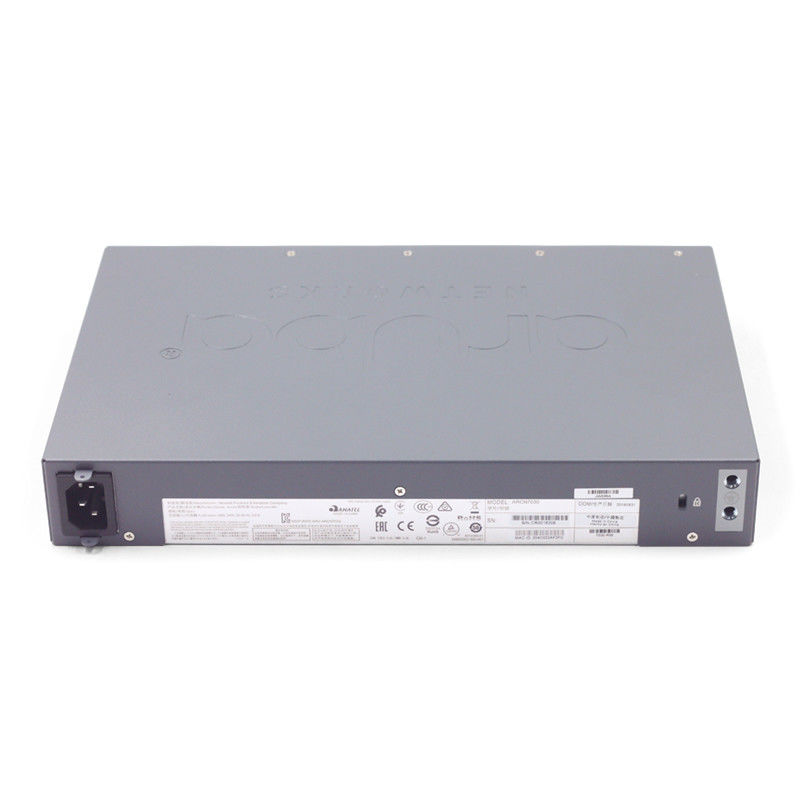

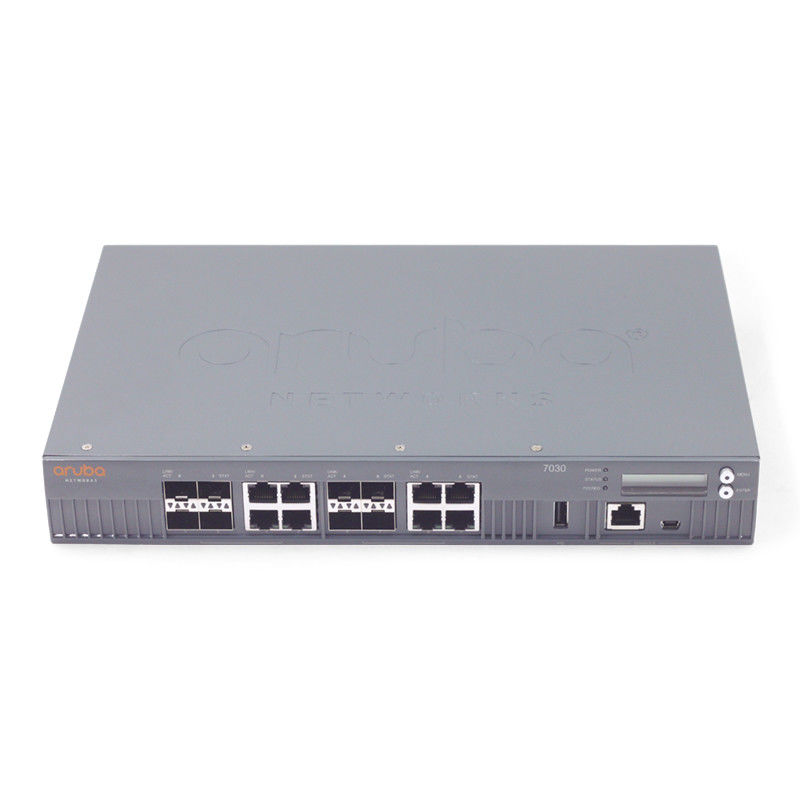

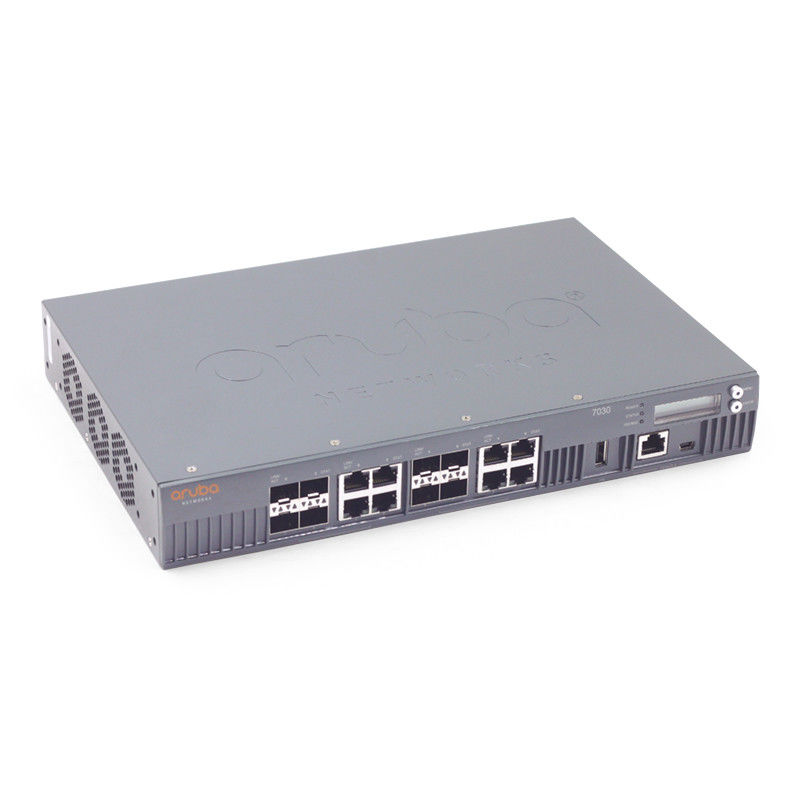

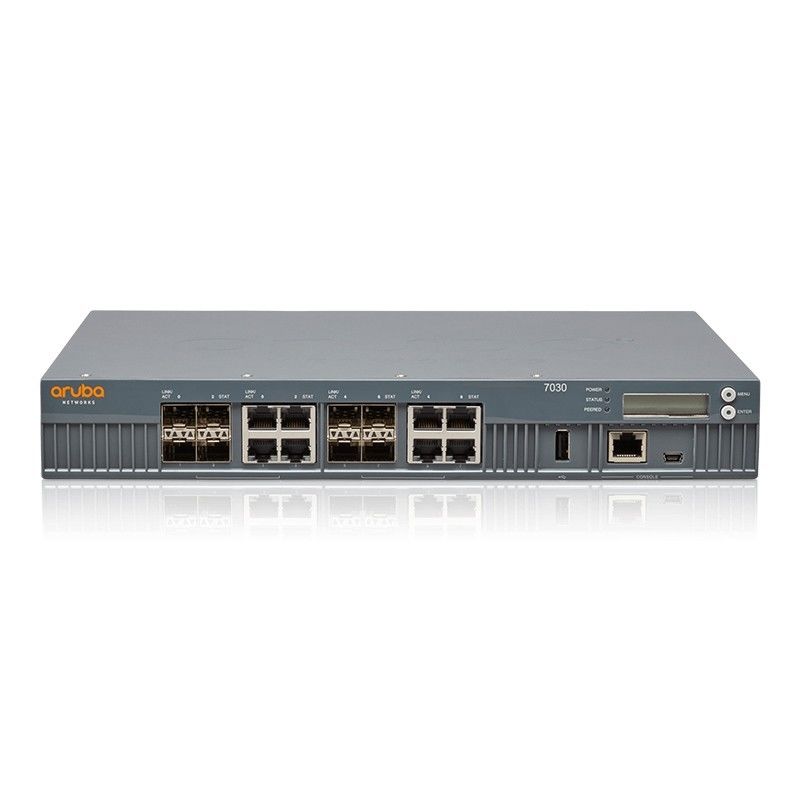

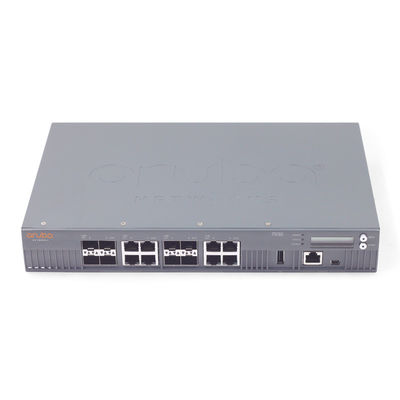

7000 Series WLAN 7030 Aruba Controller 64 AP 7030-RWJW686A 8 Combo Port

7000 Series WLAN 7030 Aruba Controller 64 AP 7030-RWJW686A 8 Combo Port

64 AP 7030 aruba controller

WLAN 7030 aruba controller

7030 aruba ap controller

Brand Name:

Aruba

Model Number:

7030-RWJW686A

CONTACT US

Request A Quote
Product Details
Products Status:
Stock
Warranty:
1 Year
Condition:
New
Lead Time:
According To Stock
10/100/1000BASE-T:
8
Maximum VLAN:
4,096
Maximum Concurrent Users / Devices:
2048
Concurrent GRE Tunnels:
512
Encrypted Throughput 3DES (Gbps):
2.4
Input Voltage Range:
90 VAC To 264 VAC
Weight:
3.4 Kg (7.5 Lbs)
Type:
Controller
Product Description

ARUBA 7000 SERIES MOBILITY CONTROLLERS

Aruba 7000 Series Mobility Controllers enhance WLAN performance by centralizing all control functionality for individual Aruba access points (APs) to improve AP utilization, security, and client roaming. Ideally suited for midsize campuses and branches, the 7000 Series can be deployed using Zero Touch Provisioning to simplify deployment

KEY FEATURES

Support for new Wi-Fi 6/6E (802.11ax), WPA3 andEnhanced Open – and existing standards
• Patented ClientMatch technology can now grouptogether Wi-Fi 6 capable devices
• Dynamic Segmentation enforces wired and wirelessaccess policies to simplify and secure the network
• Application awareness for 3,000+ applicationswithout additional hardware
• Built-in AI-powered wireless/RF optimization
• 8 Gbps of maximum firewall throughput



SIMPLE AND SECURE ACCESS


The 7000 Series serves a key role in Dynamic Segmentation,providing Aruba’s Policy Enforcement Firewall (PEF) to enforce policies based on user role, device type, application, and network location - and simplifying and securing wired and wireless network access. Traffic is encapsulated in GRE tunnels for complete encryption all the way from an AP or switch. This feature can be enabled with the ArubaOS PEF license and eliminates the need to manually configure SSIDs, VLANs or ACLs for each new client on the network.



Product Model
Aruba 7030 (RW) 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clients Controller
Maximum campus AP licenses
64
Maximum remote AP licenses
64
Maximum concurrent users/devices
4096
Maximum VLANs
4,096
Active firewall sessions
64k
Concurrent GRE tunnels
1024
Concurrent IPsec sessions
4096
Mobility Access Switch tunneled-node ports
2048
Firewall throughput
8 Gbps
Encrypted throughput (3DES, AES-CBC)
2.4 Gbps
Encrypted throughput (AES-CCM)
4 Gbps
Form factor/footprint
1 rack unit
10/100/1000BASE-T
8 (combo)
USB 2.0
1
Management/status LEDs
Yes (2)
LINK/ACT and status LEDs
Yes
LCD panel and navigation buttons
Yes
Console port
Yes (mini USB, RJ-45)
Out-of-band management port
No
MTBF (hours, @ 25C)
390,679
Humidity/storage humidity
5% to 95%, NC
Acoustic noise
29.1 – 57.4 dBA
Maximum power consumption
55W


7000 Series WLAN 7030 Aruba Controller 64 AP 7030-RWJW686A 8 Combo Port 0
