Brand Name:
Aruba
Model Number:
7024-RWJW682A
CONTACT US

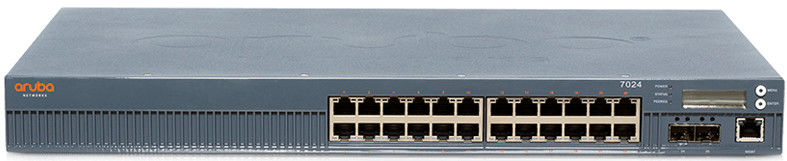

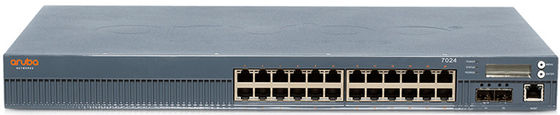

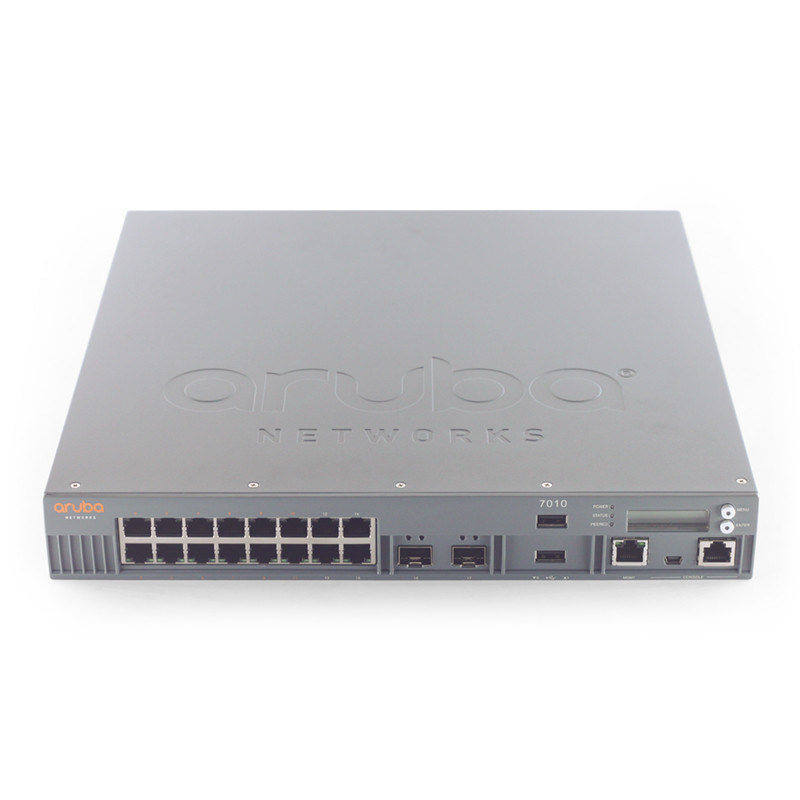

Aruba 7000 Series Mobility Controllers enhance WLAN performance by centralizing all control functionality for individual Aruba access points (APs) to improve AP utilization, security, and client roaming. Ideally suited for midsize campuses and branches, the 7000 Series can be deployed using Zero Touch Provisioning to simplify deployment
Support for new Wi-Fi 6/6E (802.11ax), WPA3 andEnhanced Open – and existing standards
• Patented ClientMatch technology can now grouptogether Wi-Fi 6 capable devices
• Dynamic Segmentation enforces wired and wirelessaccess policies to simplify and secure the network
• Application awareness for 3,000+ applicationswithout additional hardware
• Built-in AI-powered wireless/RF optimization
• 8 Gbps of maximum firewall throughput
SIMPLE AND SECURE ACCESS
The 7000 Series serves a key role in Dynamic Segmentation,providing Aruba’s Policy Enforcement Firewall (PEF) to enforce policies based on user role, device type, application, and network location - and simplifying and securing wired and wireless network access. Traffic is encapsulated in GRE tunnels for complete encryption all the way from an AP or switch. This feature can be enabled with the ArubaOS PEF license and eliminates the need to manually configure SSIDs, VLANs or ACLs for each new client on the network.
Features | 7010 | 7024 | ||||||||||
Maximum campus or remote AP licenses | 32 | 32 | ||||||||||
Maximum concurrent users/devices | 2,048 | 2,048 | ||||||||||
Maximum VLANs | 4,096 | 4,096 | ||||||||||
Active firewall sessions | 64K | 64K | ||||||||||
Concurrent GRE tunnels | 512 | 512 | ||||||||||
Concurrent IPsec sessions | 2,048 | 2,048 | ||||||||||
Concurrent SSL sessions | 2,048 | 4,096 | ||||||||||
Firewall throughput (Gbps) | 8 | 8 | ||||||||||
Wired Bridged Throughput (Gbps) | 8 | 8 | ||||||||||
Encrypted throughput 3DES (Gbps) | 2.4 | 2.4 | ||||||||||
Encrypted throughput AES-CBC-256 (Gbps) | 2.6 | 2.6 | ||||||||||
Encrypted throughput AES-CCM (Gbps) | 3.4 | 4.0 | ||||||||||
Encrypted throughput AES-GCM-256 (Gbps) | 3.3 | 3.4 |
