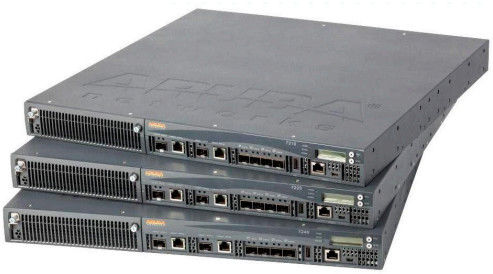

ODM 4XSFP 2048 AP Aruba Wireles Controller 7240XM-RWJW783A

ODM 4XSFP 2048 AP Aruba Wireles Controller 7240XM-RWJW783A

ODM Aruba Wireless Controller

7240XM Aruba Wireless Controller

ODM aruba 7240xm controller

Brand Name:


Model Number:



Request A Quote
Product Details
Products Status:
Lead Time:
According To Stock
Maximum Campus Or Remote AP Licenses:
0G Ports (10G Or 1G Supported):
Maximum VLAN:
Maximum Concurrent Users / Devices:
Form Factor/footprint:
7.45 Kg (16.43 Lbs)
Product Description

Flexible use cases

Up to 2,048 access points and 100 Gbps of throughput
Providing connectivity for up to 32,728 concurrent users or client devices, the 7200 Series is ideal for the most demanding enterprise, higher education, and large public venue requirements.

Dynamic Segmentation for simplicity and security

Enforcing granular user, device, and application policies over both access points and network switches means there's no need to configure separate VLANs, ACLs, and subnets.

Supports for Wi-Fi standards

Offering WPA and Enhanced Open as part of 802.11ax, the 7000 provides enhanced security and backwards compatibility.

Machine learning and advanced analytics

AirMatch applies machine learning to automate RF optimization and adapt to changing WLAN conditions, while ClientMatch improves client roaming and resolves sticky client issues.


Show users the solutions of various new network systems and application systems. The company has established a long-term and stable good cooperative relationship with distributors in many places in the joint development of the local market, which has established a good prerequisite for business expansion and new product promotion. The company's advantage is to provide users with complete information solutions, mainly including seven business modules including basic hardware, virtualization, platform software, applications, public cloud, network and information security, and IT services.


Hong Kong Starsurge Group Co.,has more than10 years of experience, hasa large factory,and strong technical team support, accumu-lated aarge number of customers and expe-rience, can provide you with thelowest priceof products and the best quality service.The agency brands include Mellanox, Ruckus, Aruba, Extreme, etc., main products includes original brand new network switch, network card, wireless Access Point , wireless controller, cable etc.We have 10 million inventory for you tochoose, can provide a variety of types ofproducts, large quantities of supply.After ensuring the accurate arrival of yourgoods, provide customer service 24 hours consultation and technical support.With a professional sales and technical team, we have earned ourselves a high reputation among the world market.


Features 7205 7210 7220 7240XM 7280
Maximum campus or remote AP licenses 256 512 1,024 2,048 2,048
Maximum concurrent users/devices 8,192 16,384 24,576 32,768 32,768
Maximum VLANs 4,096 4,096 4,096 4,096 4,096
Active firewall sessions 1 million (M) 2M 2M 2M 2M
Concurrent GRE tunnels 4,096 8,192 16,384 32,768 32,768
Concurrent IPsec sessions 8,192 16,384 24,576 32,768 32,768
Concurrent SSL sessions 4,096 8,192 8,192 8,192 8,192
Firewall throughput (Gbps) 12 20 40 40 100
Features 7205 7210 7220 7240XM 7280
Form factor/footprint 1xRU 1xRU 1xRU 1xRU 1xRU
10/100/1000BASE-T 4xCombo 2xCombo 2xCombo 2xCombo
10G Ports (10G or 1G supported) 2xSFP+ 4xSFP+ 4xSFP+ 4xSFP+ 8xSFP+
40G Ports 2xQSFP+
USB 2.0 2 1 1 1 1
Management/status LEDs Yes Yes Yes Yes Yes
LINK/ACT and status LEDs Yes Yes Yes Yes Yes
LCD panel and navigation buttons Yes Yes Yes Yes Yes
Out-of-band management port Yes No No No Yes
Features 7205 7210 7220 7240XM 7280
Dimensions (HxWxD) (H) 4.4 cm x
(W) 44.2 cm x
(D) 33.4 cm (1.75” x 17.38” x
(H) 4.4 cm x (W) 44.5 cm x (D) 44.5 cm
(1.75” x 17.5” x 17.5”)
(H) 4.4 cm x
(W) 44.2 cm x
(D) 40.1 cm (1.73” x 17.40” x
Weight 4.95 kg (10.19 lbs.) 7.45 kg (16.43 lbs.) 7.9 kg (17.41 lbs)
Features 7205 7210 7220 7240XM 7280
Operating Temperature 0° C to 40° C
Storage Temperature -40° C to 70° C
Humidity/Storage Humidity 10% to 95%, NC 5% to 95%, NC 5% to 95%, NC 5% to 95%, NC 5% to 95%, NC
Operating Altitude 10,000 feet
Acoustic Noise1 49 dBA 52.9 dBA 47.1 dBA
Maximum Heat Dissipation (BTU/hour) 260 375 427 563 819
Maximum Power Consumption 75.2W 110W 125W 165W 240W
Power Source Internal power supply 350-watt AC or DC power supply 550-watt power supply
Features 350-watt AC 350-watt DC 550-watt
Input voltage range 100 VAC to 240 VAC DC -48V to DC -60V 100 VAC to 240 VAC
Output Voltage +12VDC, 29.16A +12VDC, 29.16A +12VDC, 29.16A
Input frequency 50-60 Hz 50-60 Hz 50-60 Hz
AC line input current (steady state) 5 - 2.5A 5 - 2.5A 7.1 - 3.4A
Operating Temperature -5o to +55o C -5o to +55o C -5o to +55o C
Cooling Internal fan
(Air flow rear to front)
Internal fan
(Air flow rear to front)
819 Internal fan (Air flow rear to front)
Weight 1.3 kg (2.8 lbs) 1.3 kg (2.8 lbs) 0.87 kg (1.9 lbs)
Features 7205 7210 7220 7240XM 7280
Regulatory SKU information ARCN7205 ARCN0100 ARCN0101 ARCN0102 ARCN7280
Minimum ArubaOS Release or
  802.11ax (Wi-Fi 6), AOS 8.4; WI-FI CERTIFIED WPA3™, AOS 8.4; WI-FI CERTIFIED
Enhanced Open™, AOS 8.4
Regulatory and Safety Compliance FCC Part 15 Class A CE
  Industry Canada Class A
  VCCI Class A (Japan)
  EN 55022 Class A (CISPR 22 Class A), EN 61000-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55024, AS/NZS 3548
  UL 60950, EN60950
  CAN/CSA 22.2 #60950
  CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC
Telco Common Language Equipment Identifier (CLEI) Code
