Extreme Wireless Access Points NX - 7510-100R0 - WR wireless network management device 16GB RAM 64GB solid-state drive
Product Details:
| Brand Name: | Extreme |
| Model Number: | NX-7510-100R0-WR |
| Document: | NX7500.PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | In Stock |
|---|---|---|---|
| Warranty Time: | 1 Year | Lead Time: | According To Stock |
| Storage: | 64GB Solid-state Drive | Memory: | 16GB RAM |
Product Description

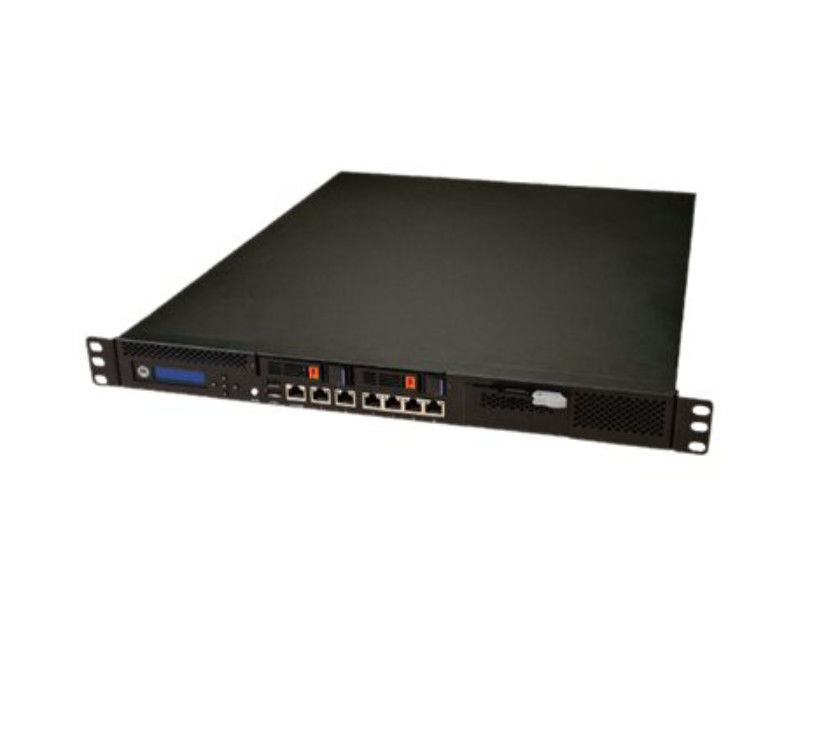

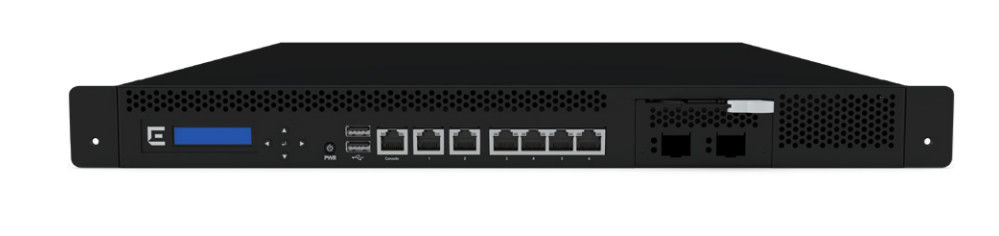

Extreme Networks NX - 7510-100R0 - WR Integrated Services Platform
Product Overview
The Extreme Networks NX 7500 Integrated Services Platform is a next-generation wireless LAN controller designed for midsize to large campus environments. It delivers high-performance, secure, and reliable wireless services with centralized management and advanced features. Powered by the intelligent WiNG 7 operating system, it supports up to 2,048 network elements and provides seamless scalability, robust security, and simplified network control.
Key Highlights:
- Centralized management for up to 2,048 access points and network elements
- Advanced WiNG 7 OS for intelligent routing and network awareness
- Comprehensive security suite including WIPS, firewall, and VPN support
- Modular design supporting 10G Ethernet and future upgrades
- High availability with 1:1 failover and redundant power options
Characteristics
- Hierarchical Management: Single-pane-of-glass view for entire network infrastructure
- Plug-and-Play Deployment: Zero-touch installation and automated AP adoption
- Smart RF Management: Automatic adaptation to RF environment changes
- BYOD Support: Device fingerprinting and role-based policy enforcement
- Integrated Security: Built-in WIPS, firewall, IPSec VPN, and NAC support
- High Availability: Redundant power supplies and RAID-1 storage options
Technology
The NX 7500 Integrated Services Platform utilizes Extreme's advanced WiNG 7 operating system, which distributes intelligence across the entire network. This architecture enables each network element to make independent routing decisions, eliminating bottlenecks associated with traditional centralized controllers. The platform supports modern security protocols including 802.11w for protected management frames, IPSec VPN tunnels, and role-based firewall policies. The modular design incorporates a multi-core network processing engine for flexible feature deployment without hardware limitations.
Working Principle
The NX 7500 operates as a centralized management controller while distributing intelligence to access points throughout the network. When deployed, the platform automatically discovers and adopts compatible access points, establishing a hierarchical management structure. The WiNG 7 OS enables each network element to assess traffic conditions and determine optimal routing paths in real-time, maintaining quality of service and security policies across the entire network. For organizations with multiple locations, the platform can function as either a site controller or Network Operations Center (NOC) controller through the ONEVIEW management system.
Applications
The NX 7500 Integrated Services Platform is ideal for:
- Medium to large enterprise campus networks
- Educational institutions with extensive wireless requirements
- Healthcare facilities requiring secure, reliable connectivity
- Retail environments with high-density client demands
- Multi-site organizations needing centralized management
- BYOD implementations requiring robust device management
Specifications
| Specification | Value |
|---|---|
| Dimensions | 1U, 430mm W x 42mm H x 532mm D |
| Weight (With 1 PS) | 19-21 kg depending on model |
| Memory | 16GB RAM |
| Storage | 64GB SSD + 500GB HDD (RAID-1 on NX7530) |
| Max AP Capacity | 2,048 (locally bridging) |
| Throughput | 20Gbps data, 8Gbps crypto |
| Interfaces | 6x 10/100/1000Base-T, NMC slot, 2x USB, RS-232 |
| Power Consumption | 110W |
| Operating Temperature | 0°C to 40°C |
Model Selection Guide
| Model Number | Description | Power Supply |
|---|---|---|
| NX-7510-100R0-WR | Integrated Services Controller with single hard drive | Single AC (300W) |
| NX-7520-100R0-WR | Integrated Services Controller with single hard drive | Dual DC (300W) |
| NX-7530-100R0-WR | Integrated Services Controller with dual hard drives (RAID-1) | Single AC (300W) |
Advantages
- Distributed Intelligence: WiNG 7 OS enables each network element to make optimal routing decisions, eliminating centralized bottlenecks
- Future-Proof Design: Modular architecture supports 10G Ethernet and feature upgrades without hardware replacement
- Comprehensive Security: Integrated WIPS, firewall, VPN, and advanced security services protect against modern threats
- High Availability: 1:1 failover support with no additional licensing costs and redundant power options
- Simplified Management: Single interface for entire network with hierarchical view of all locations and elements
- Cost Efficiency: Pay-as-you-grow licensing model with Adaptive AP License options from 8 to 1024 access points
Service & Support
We provide comprehensive support services throughout your WLAN lifecycle, including planning, implementation, and post-deployment support. Our services include:
- Standard warranty covering defects and failures
- Optional professional services for network design and optimization
- 24/7 customer consultation and technical support
- Customized technical training programs
- Rapid replacement services for critical hardware failures
For detailed warranty terms and conditions, visit: http://www.extremenetworks.com/support/policies
Frequently Asked Questions
Q: What is the maximum number of access points the NX 7500 can support?
A: The NX 7500 Integrated Services Platform can support up to 2,048 locally bridging access points or 1,024 access points using extended VLANs.
Q: Does the platform require additional licenses for access points?
A: Yes, the system uses Adaptive AP License certificates which are available in increments of 8, 64, 256, or 1024 access points.
Q: Can the NX 7500 be used in a high availability configuration?
A: Yes, the platform supports 1:1 failover for high availability without additional licensing fees for the redundant system.
Q: What security features are included with the platform?
A: The Integrated Services Platform includes a wired/wireless firewall, WIPS, IPSec VPN gateway, AAA Radius Server, captive web portal, MAC authentication, and 802.11w support.
Q: Can I upgrade to 10G Ethernet connectivity?
A: Yes, the modular design supports 10G Network Module Cards (NMC) that can be added to existing units in your facility.
Precautions
- Ensure proper ventilation and maintain operating temperature between 0°C to 40°C
- Verify compatibility of access points with WiNG 7 OS before deployment
- Follow EMC guidelines during installation to prevent interference
- Use only approved power supplies and accessories to maintain warranty coverage
- Implement proper grounding for lightning protection and electrical safety
- Regularly backup configuration files and maintain current firmware versions
- Ensure adequate clearance around the unit for proper airflow and maintenance access
