Extreme wireless access points AP -7662 -680B40 -WR External Antenna Outdoor Access Point Dual-Radio 802.11ac/802.11n
Product Details:
| Brand Name: | Extreme |
| Model Number: | AP-7662-680B40-WR |
| Document: | AP-7662.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Supported Frequency: | 5GHz And 2.4GHz | Type: | Outdoor Access Point |
| Transmission Standard: | 802.11ac | Weight: | 1.3 Kg |
| Dimensions: | 218 Mm X 198 Mm X 69mm | Warranty: | 1 Year |
Product Description

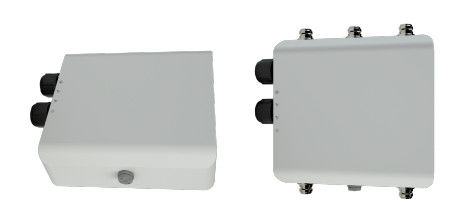

ExtremeWireless™ WiNG AP-7662-680B40-WR Outdoor Access Point
1. Product Overview
The ExtremeWireless™ WiNG AP-7662-680B40-WR is a high-performance, industrial-grade outdoor wireless Access Point designed for extreme environments. Supporting dual-band 802.11ac Wave 2 technology, this Access Point delivers reliable connectivity for enterprise, industrial, and public sector applications. It features an IP67-rated enclosure, extended temperature operation (-40°C to 70°C), and support for external antennas for maximum deployment flexibility.
2. Key Characteristics
- Dual-band 802.11ac Wave 2 with 2x2 MU-MIMO
- External antenna model with five N-type connectors
- IP67-rated for harsh outdoor conditions
- Supports 802.3af/at PoE for easy installation
- Integrated Bluetooth Low Energy (BLE) and IoT radio support
- Cellular Coexistence Filter (ACF) reduces 3G/4G interference
- Public safety band support (4.9 GHz) and Japan 802.11j
3. Technology & Standards
The AP-7662 complies with IEEE 802.11a/b/g/n/ac standards and supports advanced features including MU-MIMO, beamforming, WPA3 security, and integrated Deep Packet Inspection (DPI). It also supports BLE v4.2 and IEEE 802.15.4 for IoT deployments.
4. Working Principle
The Access Point operates using dual concurrent radios to provide seamless connectivity across 2.4 GHz and 5 GHz bands. It uses MIMO and beamforming technologies to focus signal strength toward clients, improving throughput and coverage. The integrated DPI engine allows for real-time application visibility and QoS directly on the AP.
5. Applications
- Enterprise and retail WLAN
- Hospitality and outdoor venues
- Transportation and logistics warehouses
- Manufacturing plants and freezers
- Public safety and municipal networks
6. Specifications
| Attribute | Value |
|---|---|
| Model | AP-7662-680B40-WR |
| Wireless Standards | 802.11a/b/g/n/ac Wave 2 |
| MIMO Configuration | 2x2:2 MU-MIMO |
| Antenna Ports | 5 x N-type |
| Ethernet Ports | 2 x Gigabit (PoE) |
| Operating Temperature | -40°C to 70°C |
| Power Supply | 802.3af/at PoE |
| Bluetooth | BLE v4.2 |
7. Advantages
- Rugged IP67 design withstands extreme weather
- Flexible mounting: pole, wall, or vehicle
- On-board application visibility with DPI
- Enhanced security with WIPS and rogue AP detection
- Global regulatory compliance including FCC, IC, CE
8. Service & Support
We offer 1-year hardware replacement warranty, 24/7 technical support, and global shipping. Professional deployment and integration services available upon request.
9. FAQ
Q: What is the maximum range of this Access Point?
A: Range depends on antenna selection and environment. With optional high-gain antennas, the AP can cover several hundred meters outdoors.
Q: Does it support mesh networking?
A: Yes, the AP supports mesh functionality for extended coverage without wired backhaul.
Q: Can it operate in freezing conditions?
A: Yes, it is rated for -40°C to 70°C operation without solar load.
10. Precautions
- Use only Extreme Networks-approved external antennas.
- Ensure proper grounding and lightning protection for outdoor installs.
- Verify local regulatory requirements for channel and power settings.
- Do not block ventilation openings or expose to direct sunlight without shade.
