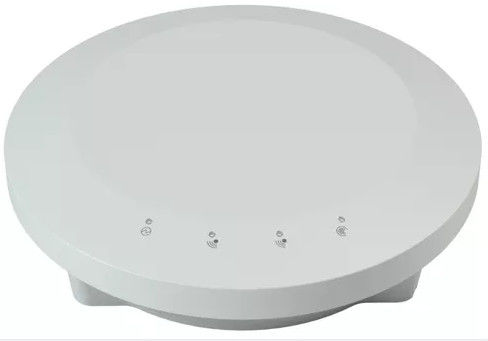

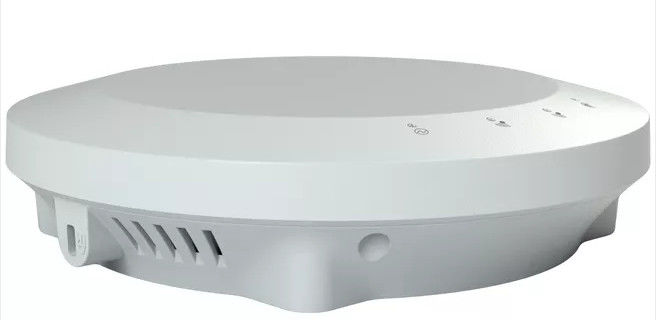

ExtremeWireless™ AP-7632-680B30-WR Indoor Cloud-Ready Access Point

1. Product Overview

The ExtremeWireless AP-7632-680B30-WR represents a high-performance indoor Wireless Access Point engineered for modern enterprise environments. This 802.11ac Wave 2 Access Point delivers exceptional connectivity with MU-MIMO technology, making it ideal for high-density deployments. It features integrated application visibility, security sensing, and seamless cloud management capabilities through ExtremeCloud™.

2. Key Characteristics

• Dual-band 802.11ac Wave 2 with MU-MIMO technology
• Integrated Deep Packet Inspection (DPI) for application-level control
• Bluetooth Low Energy (BLE) and IoT radio support
• Cloud-managed via ExtremeCloud™ with zero-touch provisioning
• Plenum-rated housing with multiple mounting options
• Integrated AirDefense™ security sensor for continuous monitoring
• Operating temperature range: 0°C to 40°C (32°F to 104°F)

3. Technology & Standards

This advanced Wireless Access Point supports comprehensive wireless standards including 802.11a/b/g/n/ac, with cutting-edge features such as:

• MU-MIMO, Beamforming, LDPC, and STBC technologies
• WPA2, WPA3, 802.1X, RADIUS, and Captive Portal security
• BLE 4.2 and IEEE 802.15.4 for IoT connectivity
• SNMP v1/v2c/v3, DHCP Server/Client, and VLAN support
• Layer 3 routing capabilities and advanced QoS features

4. Operational Principle

The Access Point operates using advanced 2x2 MIMO antenna technology to receive and transmit wireless signals efficiently. It processes network traffic locally with its integrated DPI engine, applying QoS policies and security measures in real-time. The system can seamlessly integrate with ExtremeCloud™ for centralized management, while its integrated sensor continuously monitors for potential security threats, ensuring a protected wireless environment.

5. Application Scenarios

• Enterprise and corporate campus WLAN deployments
• Educational institutions from K-12 to higher education
• Retail environments for inventory and guest access
• Hospitality venues and conference facilities
• Light industrial and warehouse settings
• Healthcare facilities for staff and visitor connectivity

6. Technical Specifications

7. Competitive Advantages

• Operates at full performance with standard 802.3af PoE
• Integrated security and application visibility without additional hardware requirements
• Future-ready architecture with cloud management capabilities via ExtremeCloud™
• Superior high-density client support with MU-MIMO and band steering technologies
• Extended temperature range available in external antenna model variants
• Comprehensive feature set including integrated sensor and location services

8. Service & Support

We provide comprehensive support including lifetime limited warranty, 24/7 technical assistance, and global logistics. Our expert team offers pre-sales consultation, post-sales troubleshooting, and integration services to ensure seamless deployment and operation of your wireless infrastructure.

9. Frequently Asked Questions

Q: Is this Access Point compatible with cloud management platforms?
A: Yes, it is fully compatible with ExtremeCloud™ for centralized management and monitoring.

Q: What power options are available for this device?
A: It supports both 802.3af and 802.3at PoE standards for flexible deployment options.

Q: Can I use external antennas with this model?
A: This specific model features internal antennas. For external antenna requirements, please consider the AP-7632-680B40 variant.

Q: What security features does this Access Point include?
A: It features integrated AirDefense™ security sensor, WIPS, stateful firewall, and support for WPA3 security protocols.

10. Installation & Operational Notes

• Ensure adequate ventilation around the device and avoid obstructing antenna areas
• Use only approved power sources and PoE injectors compatible with 802.3af/at standards
• Comply with local regulatory requirements for channel selection and transmission power
• Verify compatibility with existing network infrastructure before deployment
• Regular firmware updates are recommended to maintain security and performance
