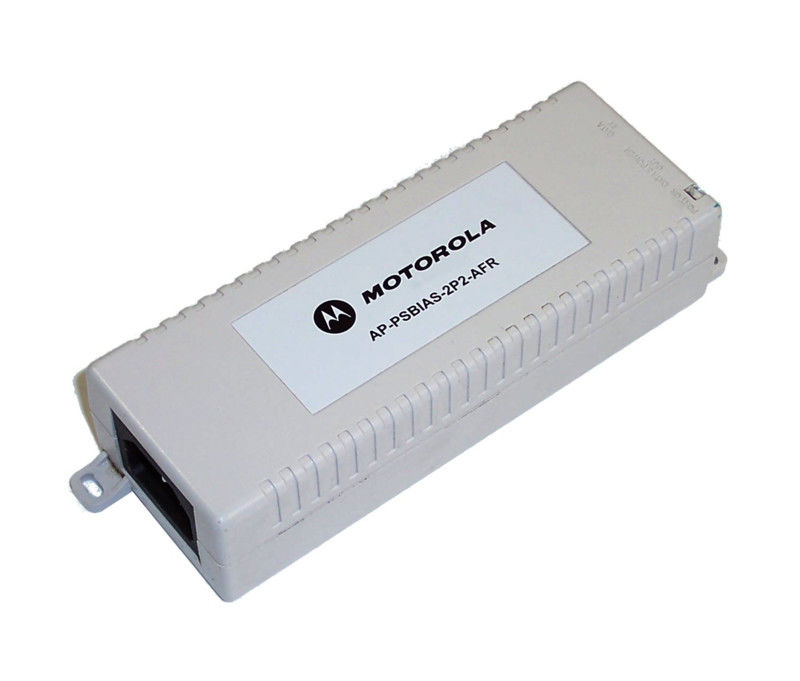

Extreme Wireless Access Points AP - PSBIAS2P2 - AFR Power Injector 0.35 / 0.2 A 100-240 VAC 50 / 60 Hz

Extreme Wireless Access Points AP - PSBIAS2P2 - AFR Power Injector 0.35 / 0.2 A 100-240 VAC 50 / 60 Hz

Brand Name:

Extreme

Model Number:

AP-PSBIAS-2P2-AFR

CONTACT US

Request A Quote
Product Details
Condition:
New And Original
Availability:
In Stock
Warranty Time:
1 Year
Lead Time:
According To Stock
Operating Temperature:
0°C To 40°C (32°F To 104°F)
Storage Temperature:
-20°C To 70°C (-4°F To 158°F)
Operating Humidity:
10% To 90% Non-condensing
Storage Humidity:
10% To 90% Non-condensing
Product Description

Motorola power injector 1 poort

Motorola netwerk voeding(PoE), oa voor Motorola Access Points (AP-PSBIAS-2P2-AFR) PoE netwerk (802.4af)

input 100-240V output 48V / 0.35A

Physical characteristics
Dimensions 5.5(d) x 2(w) x 1.3(h) in. (13.97 x 5.08 x 3.3 cm)
Weight 1 lb. (0.45 kg) Environment
Operating temperature 32°F to 104°F (0°C to 40°C)
Operating relative humidity 5% to 93%, noncondensing
Nonoperating/Storage temperature -4°F to 158°F (-20°C to 70°C)
Nonoperating/Storage relative humidity 5% to 95%, noncondensing
Altitude up to 10,000 ft. (3 km) Electrical characteristics
Voltage 100-240 VAC
Current 0.35/0.2 A
Frequency 50/60 Hz
Notes IEEE 802.3af compliant
Safety UL 60950; EN 60950
Emissions EN 55024; EN 55022 (CISPR 22) Class B with FTP Cabling; FCC Part 15, Class B with FTP cabling

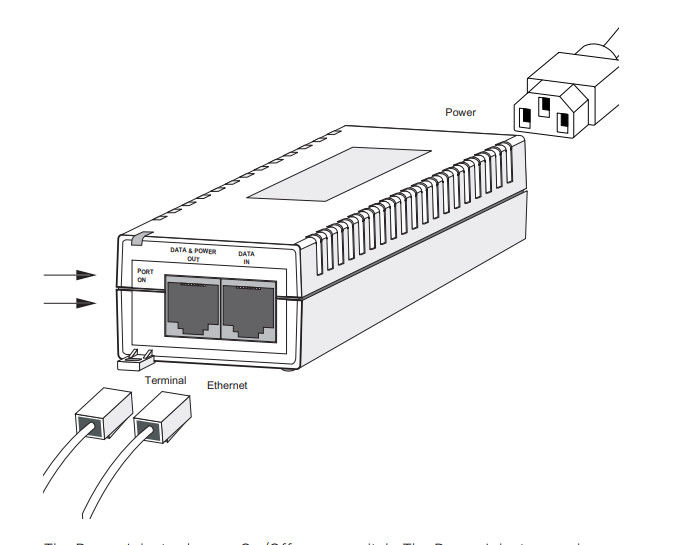

Notes The 1-port power converter has 1 AC power cord input, 1 RJ-45 10/100/1000 Mbps port for data coming from the network infrastructure, and 1 RJ-45 for data plus IEEE 802.3af-compliant PoE for Gigabit Ethernet to power the access point.

When users purchase a WLAN solution, they often need to place access points in obscure locations. In the past, a dedicated 24-hour, 90-264 VAC power source was required for each access point in addition to the Ethernet infrastructure. This often required an electrical contractor to install power drops at each access point location. With the AP-PSBIAS-2P2-AFR power injector solution, centralized power can be provided for devices without a local power supply for each. Product Description The AP-PSBIAS-2P2-AFR power injector is a single-port, 802.3af compliant Power-over-Ethernet hub combining low-voltage DC with Ethernet data in a single cable connecting to an AP. The Power Injector’s single DC and Ethernet data cable creates a modified Ethernet cabling environment eliminating the need for separate Ethernet and power cables.

Input Voltage 100VAC - 240 VAC (50Hz-60Hz)
Maximum Output Power 16.8 W
Nominal Output Voltage 48VDC

Extreme Wireless Access Points AP - PSBIAS2P2 - AFR Power Injector 0.35 / 0.2 A 100-240 VAC 50 / 60 Hz 0
