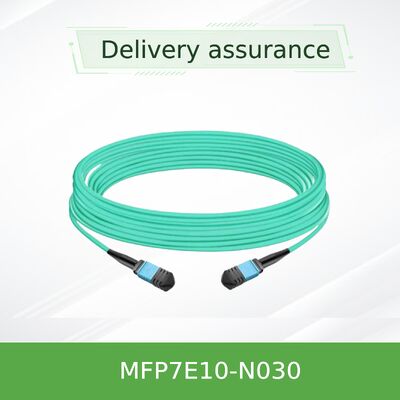

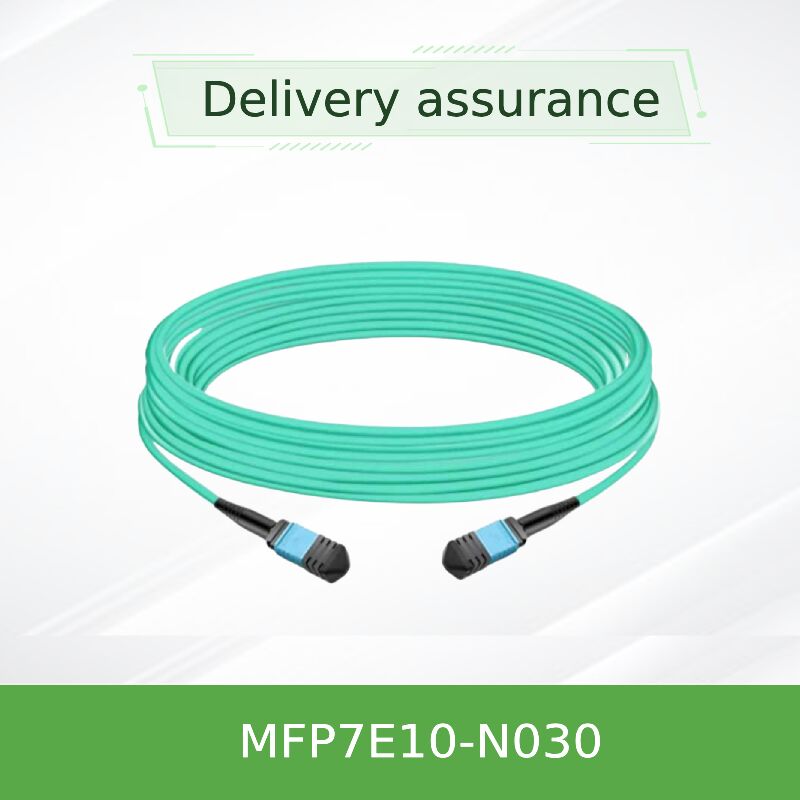

NVIDIA mellanox MFP7E10-N030 30m MPO-12/APC Multimode Fiber Cable OM4 Type-B for 800G/400G
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFP7E10-N030(980-9I557-00N030) |
| Document: | MFP7E10-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model: | MFP7E10-N030 | Length: | 30 M |
|---|---|---|---|
| Fiber Type: | Multimode OM4 | Connectors: | MPO-12/APC (Female) |
| Insertion Loss: | ≤ 0.362 DB | Return Loss: | ≥ 35 DB |
| Highlight: | Mellanox OM4 fiber cable 30m,MPO-12 APC multimode cable,800G 400G Mellanox fiber optic |
||
Product Description
Extended-reach 30-meter MPO-12/APC to MPO-12/APC multimode fiber cable with 8 active fibers—optimized for 800G twin-port OSFP and 400G QSFP112 optical transceivers in large-scale InfiniBand NDR and 400GbE data center fabrics.
- MPO-12/APC female to MPO-12/APC female, 8-fiber Type-B crossover configuration
- 30-meter length with 3.0mm diameter, LSZH aqua jacket (OM4 multimode)
- Supports 800Gb/s twin-port OSFP and 400Gb/s OSFP/QSFP112 transceivers
- Angled Physical Contact (APC) 8° polish for minimal back reflection
- Insertion loss ≤0.35 + 0.0004*L dB, Return loss ≥35dB
- 8-Fiber Type-B Crossover: Fiber 1 connects to fiber 12 at opposite end—ensuring correct Tx-to-Rx alignment for optical transceivers.
- APC Polish: 8-degree angled end face reduces back reflections, critical for signal integrity at 100G PAM4 per lane over longer distances.
- OM4 Multimode Fiber: 50/125µm fibers optimized for 30m reach with low insertion loss; aqua jacket for easy identification.
- LSZH Jacket: Low Smoke Zero Halogen material for enhanced safety in data center environments.
- Rigorous Testing: 100% insertion loss and return loss tested for reliable out-of-box performance.
The MFP7E10-N030 complies with IEC 61754-7 (MPO connector family), GR-1435, and ANSI/TIA/EIA 604-5. It uses 8 active multimode fibers (50/125µm OM4) with APC 8° polish. The Type-B crossover wiring ensures correct Tx-to-Rx alignment per transceiver pinouts. Suitable for InfiniBand NDR, 400GbE, and NVLink protocols when used with compatible optical modules (MMA4Z00-NS, MMA1Z00-NS).
In a twin-port OSFP 800G transceiver, two 4-lane optical interfaces transmit and receive over separate fibers. The MFP7E10-N030 uses a Type-B crossover scheme: fiber 1 at end A connects to fiber 12 at end B, fiber 2 to fiber 11, etc. This ensures that the transmit laser from lane 1 aligns with the photodetector of lane 12 at the far end. The 8° angled polish (APC) directs any reflected light away from the laser cavity, preventing signal distortion and maintaining low bit error rates at 100G PAM4 per lane over 30-meter distances.
- Quantum-2 Switch to Switch: Connect twin-port OSFP 800G switches across multiple racks up to 30m apart.
- Switch to ConnectX-7/BlueField-3: Link ToR switches to 400G adapters (OSFP or QSFP112) in adjacent racks.
- NVLink Fabrics: Optical interconnection for GPU clusters using NVLink over fiber.
- Hyperscale Data Centers: Medium-reach rack-to-rack optical links with patch panels.
| Model | Length | Connector Type | Fiber Count | Fiber Type | Jacket | Insertion Loss |
|---|---|---|---|---|---|---|
| MFP7E10-N030 | 30 m | MPO-12/APC female | 8 active + 4 inactive | OM4 (50/125µm) | Aqua LSZH, 3.0mm | ≤0.35 + 0.0004*30 = ≤0.362 dB |
| MFP7E10-N010 | 10 m | MPO-12/APC female | 8 active | OM4 | Aqua LSZH | ≤0.354 dB |
| MFP7E10-N050 | 50 m | MPO-12/APC female | 8 active | OM4 | Aqua LSZH | ≤0.37 dB |
Note: Operating temperature 0°C to 70°C, storage -40°C to 85°C. Minimum bend radius 30mm. Type-B crossover per IEC 61754-7.
- vs. Copper Cables: Longer reach (30m) with lower weight, better airflow, and EMI immunity.
- APC Polish: Superior return loss (≥35dB) compared to UPC, critical for 100G-PAM4 links over distance.
- Type-B Crossover: Plug-and-play compatibility with NVIDIA transceivers—no need for manual crossover.
- OM4 Performance: Optimized for 30m reach with minimal insertion loss, supporting future 800G upgrades.
We offer 24/7 technical consultation, RMA services, and cabling infrastructure design support. Each MFP7E10-N030 is backed by a 1-year warranty and 100% factory testing. Custom lengths available for volume orders. Our inventory ensures same-day dispatch for in-stock items. Pre-sales support for transceiver compatibility verification is available.
Q: What transceivers is this cable compatible with?
A: It is designed for NVIDIA MMA4Z00-NS (twin-port OSFP DR8), MMA4Z00-NS400 (OSFP), and MMA1Z00-NS400 (QSFP112) optical modules used in ConnectX-7 and BlueField-3.
Q: Can I use this cable with MPO/UPC connectors?
A: No. APC (angled) and UPC (ultra polish) connectors have different end faces and will not mate correctly—always use APC with APC.
Q: What is the difference between Type-B and straight cables?
A: Type-B crossover (fiber 1 to 12) matches the pinout of optical transceivers where transmitter lane 1 aligns with receiver lane 12 at the far end. Straight cables (Type-A) are for other applications like parallel optics with same pin layout.
Q: Is this cable compatible with 400G Ethernet?
A: Yes, it supports 400GBASE-SR8 and 800GBASE-SR8 when used with appropriate 400G/800G optical modules.
Q: What is the minimum bend radius during installation?
A: The minimum bend radius is 30mm anywhere on the cable. Avoid sharp bends near connectors.
- Clean Before Use: Always clean MPO connectors with appropriate one-click cleaners before insertion—contamination causes link errors.
- Dust Caps: Keep protective caps on until moment of installation; store caps for future use.
- ESD Awareness: Although the cable is passive, it plugs into ESD-sensitive transceivers—use grounded wrist straps.
- Bend Radius: Do not exceed 30mm bend radius; avoid tension on connectors.
- Compatibility: Verify transceiver type (APC vs UPC) before ordering—this cable is APC only.
