Mellanox cable MFP7E20-N010 Multimode MPO-12/APC to 2x MPO-12/APC Passive Fiber Cable, 10m
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFP7E20-N010 |
| Document: | MFP7E20-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Product Model: | MFP7E20-N010 | Cable Type: | Multimode Passive Fiber Cable |
|---|---|---|---|
| Length: | 10 M | Fiber Type: | OM4, 50/125 µm |
| Connectors: | MPO-12/APC (Female) | Insertion Loss: | ≤ 0.35 + 0.0004×L DB |
| Highlight: | QSFP+ Mellanox AOC,56Gb/S Mellanox AOC,10m qsfp+ aoc cable |
||
Product Description

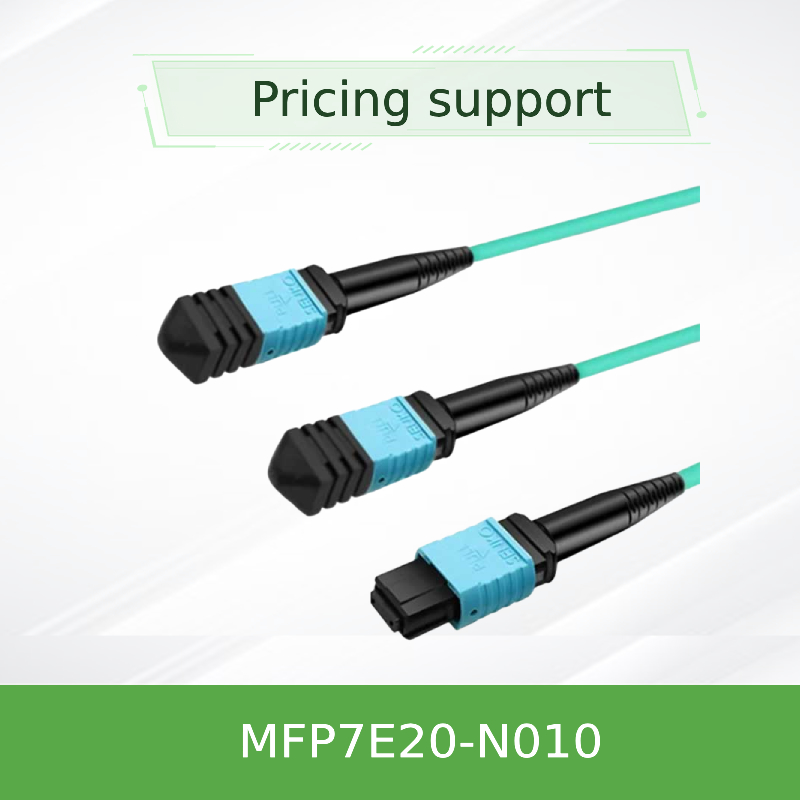

NVIDIA MFP7E20-N010 Multimode MPO-12/APC to 2x MPO-12/APC Passive Fiber Cable, 10m
1. Product Overview
The NVIDIA MFP7E20-N010 is a high-performance, multimode, 4-channel to two 2-channel splitter passive fiber cable designed for next-generation data center interconnects. This optical fiber cable features MPO-12/APC connectors on both ends, ensuring minimal back reflection and superior signal integrity. It is engineered to support high-speed data transmission protocols including InfiniBand NDR, Ethernet, and NVLink, making it an ideal solution for linking high-performance computing and storage systems.
2. Key Characteristics
- Flexible round LSZH (Low Smoke Zero Halogen) outer jacket for easy installation and enhanced safety
- Push-pull latching mechanism for secure and quick connect/disconnect
- Female-to-Female MPO-12/APC connectors with 8-degree angled polish to reduce optical back reflection
- 50/125 µm OM4 multimode fibers supporting reaches up to 50 meters
- Type-B crossover fiber alignment for direct transceiver-to-transceiver connection
- Compliant with Telcordia GR-1435 and IEC standards for reliability and performance
3. Core Technology & Standards
This passive fiber cable utilizes industry-standard MPO-12/APC connectors compliant with IEC 61754-7 and ANSI/TIA/EIA 604-5. The angled physical contact (APC) polish ensures return loss ≥35 dB, critical for maintaining signal quality in high-speed environments. The cable supports InfiniBand NDR, 400GbE, and NVLink protocols, making it versatile for a range of high-performance applications.
4. Working Principle
The cable uses a Type-B crossover wiring scheme where transmit lanes from one end are routed to receive lanes on the opposite end. The MPO-12/APC connector interfaces precisely with compatible transceivers, using alignment pins and holes for accurate fiber positioning. The 8 active fibers facilitate bidirectional communication, while 4 additional fibers serve as strength members.
5. Typical Applications
- Connecting OSFP DR8 Twin-Port transceivers in NVIDIA switches to ConnectX-7 adapters or BlueField-3 DPUs
- Short-reach optical links within high-performance data centers and HPC clusters
6. Specifications & Selection Guide
| Parameter | Value |
|---|---|
| Product Model | MFP7E20-N010 |
| Cable Type | Multimode Passive Fiber Cable |
| Length | 10 m |
| Fiber Type | OM4, 50/125 µm |
| Connectors | MPO-12/APC (Female) |
| Insertion Loss | ≤ 0.35 + 0.0004×L dB |
| Return Loss | ≥ 35 dB |
| Jacket Color | Aqua |
| Operating Temperature | 0°C to 70°C |
7. Advantages & Selling Points
- Superior optical performance with low insertion loss and high return loss
- Designed for compatibility with NVIDIA’s high-speed transceivers and systems
- Robust construction with LSZH jacket for safety in mission-critical environments
- Pre-terminated and factory tested for out-of-the-box reliability
8. Service & Support
We provide 24/7 customer consultation and technical support. All products are supplied with a warranty and are tested before shipment. Bulk order discounts and custom length options are available.
9. Frequently Asked Questions
Q: Can this cable be used with QSFP112 transceivers?
A: Yes, the splitter ends are compatible with both OSFP and QSFP112 transceivers.
Q: What is the maximum supported length?
A: The cable supports up to 50 meters with OM4 multimode fiber.
Q: Is this a crossover or straight-through cable?
A: It is a Type-B crossover passive fiber cable.
10. Handling & Precautions
- Always use optical connector cleaners before mating
- Do not remove dust caps until ready to install
- Avoid bending below the minimum radius of 30 mm
- Do not mix MPO-12/APC with MPO-12/UPC connectors
