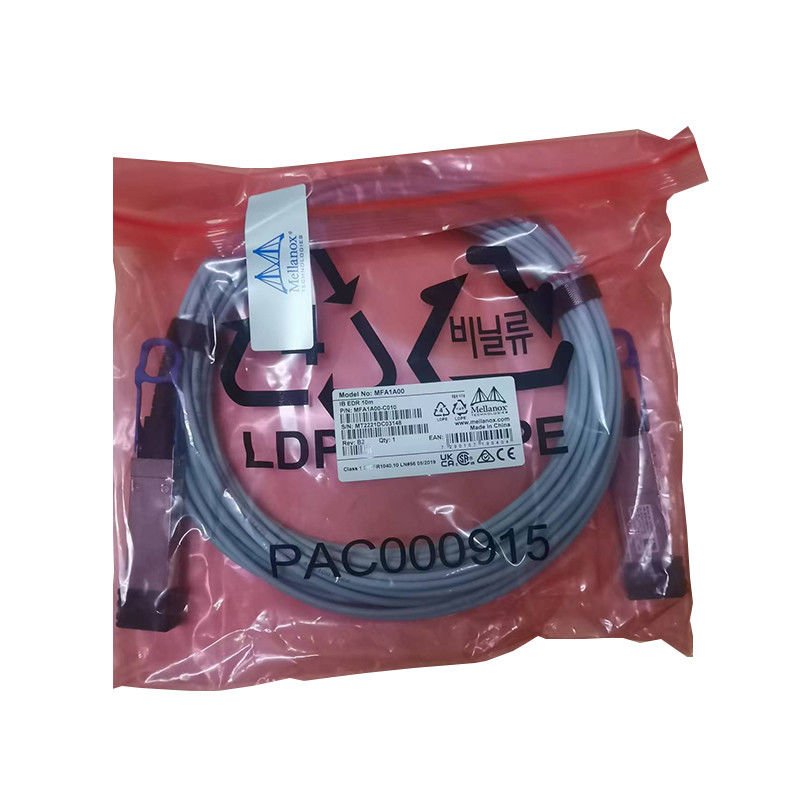

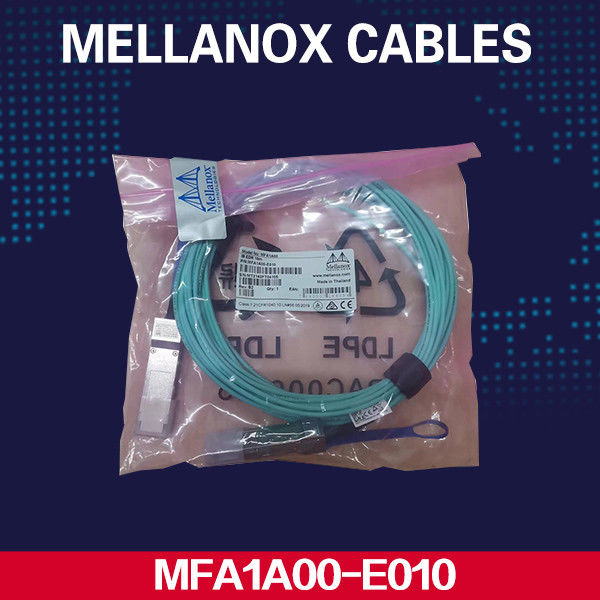

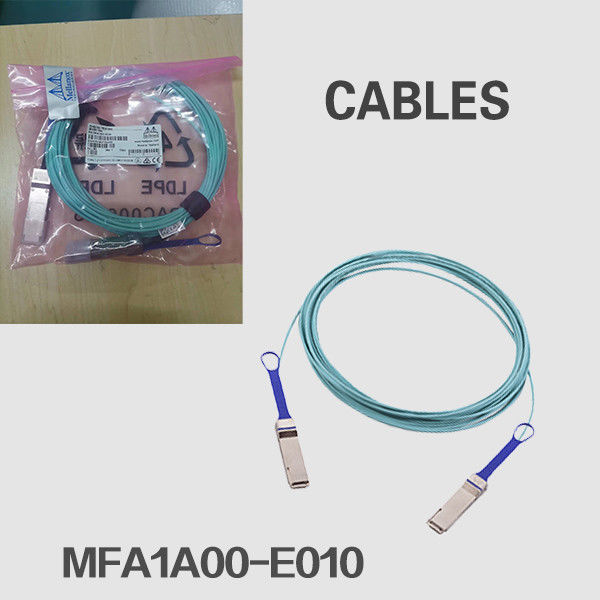

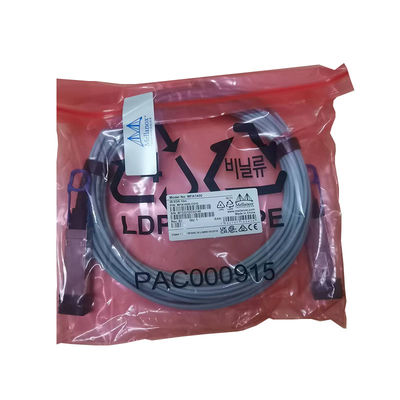

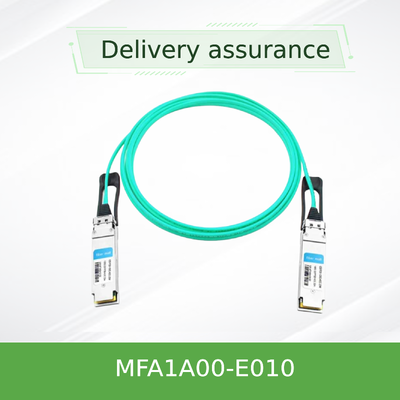

100Gb/S QSFP Mellanox AOC cable QSFP Cable MFA1A00-E010

Product Details:

Brand Name: Mellanox
Model Number: MFA1A00-E010
Document: MFA1A00-xxxx.pdf

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: outer box
Payment Terms: T/T
Supply Ability: Supply by project/batch
Get Best Price Contact Now

Detail Information

Availability: Stock Warranty: 1 Year
Condition: New And Original Technology: InfiniBand
Max Speed: 100G Connector Type: QSFP28
Length: 10m Cable: Active Fiber Cable
InfiniBand: IB EDR Damage Threshold: 3.4dBm
Model: MFA1A00-E010
Highlight:

100Gb/S mellanox qsfp cable

,

AOC mellanox qsfp cable

,

aoc qsfp MFA1A00-E010

Product Description

NVIDIA MFA1A00-E010 100Gb/s QSFP28 Active Optical Cable

Product Overview

The NVIDIA® MFA1A00-E010 is a high-performance QSFP28 Active Optical Cable (AOC) engineered for 100Gb/s InfiniBand EDR and Ethernet applications. This Optical Fiber Cable delivers a reliable, low-latency connection for data centers, offering a superior alternative to passive copper solutions. It features four multi-mode fibers (MMF) per end, each capable of supporting data rates up to 26 Gb/s, and provides a robust passive fiber cable replacement with extended reach and enhanced signal integrity.

Key Characteristics

  • Supports data rates up to 100 Gb/s for high-bandwidth applications
  • Hot-pluggable QSFP28 form factor for easy installation and maintenance
  • Programmable receiver output amplitude and pre-emphasis for signal optimization
  • Selectable retiming function per lane for improved signal integrity
  • Low power consumption: 2.2W typical per end (with retiming enabled)
  • Reaches up to 100 meters with multi-mode fiber
  • Compliant with SFF-8665, SFF-8636, and RoHS standards

Core Technology

The MFA1A00-E010 utilizes VCSEL (Vertical Cavity Surface-Emitting Laser) technology and integrates DSP-based retiming capabilities. It complies with IEEE 802.3bm and SFF-8665 standards, ensuring interoperability with major networking equipment. The built-in Digital Diagnostic Monitoring (DDM) interface allows real-time monitoring of temperature, voltage, optical power, and laser bias current.

Working Principle

This active optical cable converts electrical signals into optical signals using integrated VCSEL transmitters. The optical signals are transmitted over multi-mode fiber and converted back to electrical signals at the receiving end. Built-in equalization, pre-emphasis, and clock data recovery (CDR) circuits ensure signal integrity across the entire link, making it superior to a standard passive fiber cable.

Applications

Ideal for high-performance computing (HPC), cloud data centers, enterprise networking, and storage area networks (SANs). Commonly deployed in InfiniBand EDR and 100GbE Ethernet switches, servers, and storage systems.

Specifications & Ordering Info

Parameter Value
Data Rate 100 Gb/s
Interface QSFP28
Cable Type Active Optical Cable (AOC)
Length 10m
Power Consumption 2.2W (typical per end)
Fiber Type Multi-Mode Fiber (MMF)
Operating Temperature 0°C to 70°C

Advantages

Compared to traditional passive fiber cable solutions, the MFA1A00-E010 offers longer reach, better signal quality, and higher reliability. Its integrated diagnostics and programmability reduce deployment complexity and improve network visibility. This Optical Fiber Cable is designed for high-density environments where performance and power efficiency are critical.

Service & Support

We provide a full warranty, fast delivery, and 24/7 technical support. Our team offers integration services and compatibility verification to ensure seamless deployment.

FAQ

Q: What is the maximum distance supported?
A: This AOC supports lengths up to 100m using multi-mode fiber.

Q: Is it compatible with 100GbE switches?
A: Yes, it is designed for interoperability with major 100GbE and InfiniBand EDR systems.

Q: Does it require external power?
A: No, it is powered directly through the QSFP28 port.

Precautions

Do not bend the cable beyond a 30mm radius. Avoid exposing the connectors to dust or physical damage. Ensure proper ESD precautions during handling. Operate within specified temperature and humidity ranges.
