20m 200Gb Mellanox Active Fiber Cable AOC Ethernet Cable MFS1S00-H020E QSFP56
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H020E |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Warranty: | 1 Year | Condition: | New And Original |
|---|---|---|---|
| Data Rate: | Up To 200Gb/s | Connector Type: | QSFP56 |
| Length: | 20m | Cable: | LSZH |
| IB: | HDR | Black: | Black Pulltab |
| Highlight: | 200Gb mellanox active fiber cable,20m mellanox active fiber cable,20m aoc ethernet cable |
||
Product Description

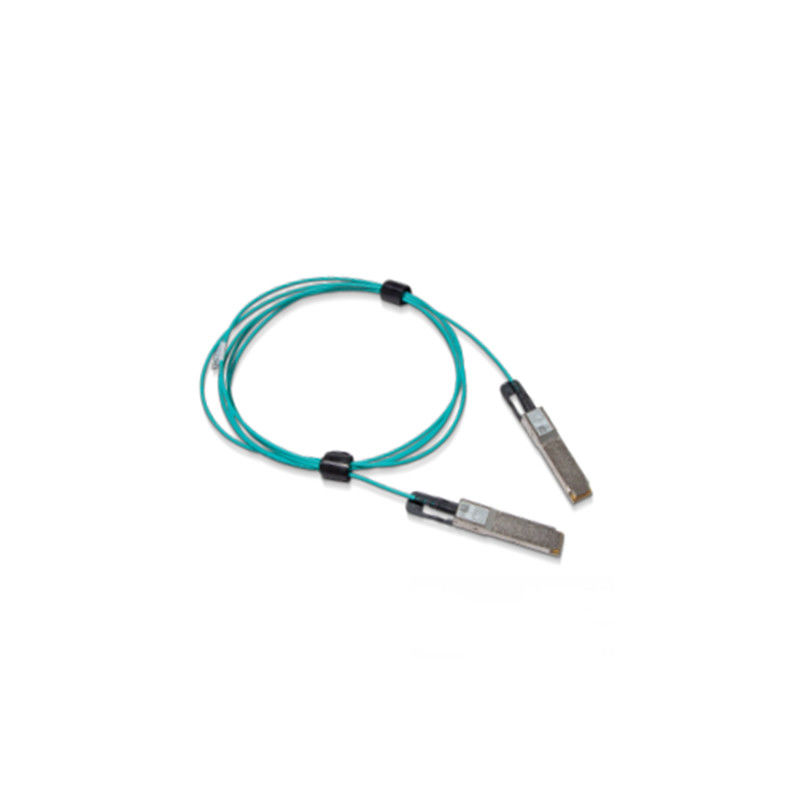

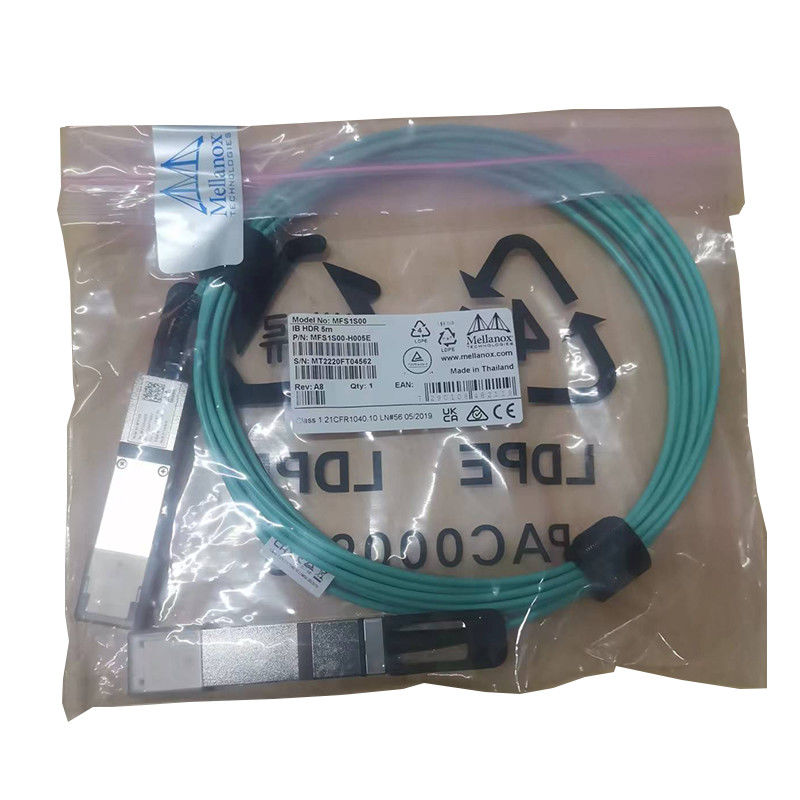

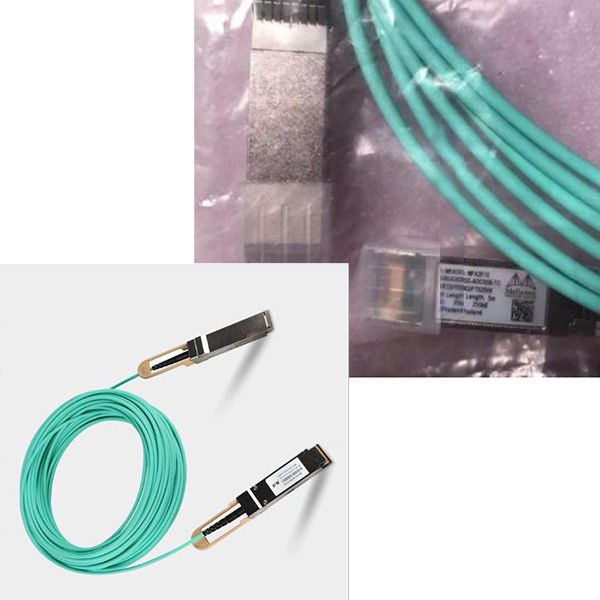

MFS1S00-H020E 200Gb/s QSFP56 Active Optical Cable (AOC)
The NVIDIA® MFS1S00-H020E is a high-performance 200Gb/s QSFP56 Active Optical Cable designed for data centers requiring high bandwidth, low latency, and extended reach. This fiber optic cable supports InfiniBand HDR and 200GbE applications, offering superior reliability and power efficiency compared to passive copper solutions.
Key Features
- Supports 200Gb/s InfiniBand HDR and 200GbE
- 4x 50Gb/s PAM4 modulation per lane
- Hot-pluggable QSFP56 form factor
- Up to 100m reach over multi-mode fiber (MMF)
- Low power consumption: 5.0W typical per end
- Digital Diagnostic Monitoring (DDM) with real-time health checks
Technology & Standards
This Active Optical Cable complies with SFF-8665, SFF-8636, and SFF-8679 standards. It uses VCSEL-based optical technology and supports PAM4 and NRZ modulation schemes. The cable integrates advanced signal retiming and equalization for optimal signal integrity.
How It Works
The MFS1S00-H020E converts electrical signals into optical signals using integrated VCSEL transceivers at each end. Data is transmitted over four multi-mode fibers, each operating at 50Gb/s. The built-in DSP performs retiming, equalization, and error correction to ensure reliable data transmission over long distances.
Applications
- High-performance computing (HPC) clusters
- Data center spine-leaf architectures
- Cloud infrastructure and hyperscale data centers
- AI and machine learning workloads
- Storage area networks (SAN) and network-attached storage (NAS)
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 200 Gb/s |
| Interface | QSFP56 |
| Cable Type | Active Optical Cable (AOC) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Max Length | 100m |
| Power Consumption | 5.0W (typical) |
| Operating Temperature | 0°C to 70°C |
| Compliance | SFF-8665, SFF-8636, SFF-8679 |
Selection Guide
| Model Number | Length | Description |
|---|---|---|
| MFS1S00-H003V | 3m | 200Gb/s QSFP56 AOC |
| MFS1S00-H005V | 5m | 200Gb/s QSFP56 AOC |
| MFS1S00-H010V | 10m | 200Gb/s QSFP56 AOC |
| MFS1S00-H015V | 15m | 200Gb/s QSFP56 AOC |
| MFS1S00-H020V | 20m | 200Gb/s QSFP56 AOC |
| MFS1S00-H030V | 30m | 200Gb/s QSFP56 AOC |
| MFS1S00-H050V | 50m | 200Gb/s QSFP56 AOC |
| MFS1S00-H100V | 100m | 200Gb/s QSFP56 AOC |
Advantages
- Lower latency and higher bandwidth than passive copper cables
- Longer reach without signal degradation
- Reduced power consumption and heat output
- Hot-pluggable for easy installation and maintenance
- Full digital diagnostics for proactive monitoring
Service & Support
We offer a comprehensive warranty, fast delivery, and 24/7 technical support. Our team provides integration assistance and troubleshooting to ensure seamless deployment.
FAQ
Q: What is the maximum length of this optical fiber cable?
A: The MFS1S00-H020E supports up to 100m over multi-mode fiber.
Q: Is this cable compatible with 100GbE switches?
A: Yes, it is backward compatible with 100GbE using appropriate rate select settings.
Q: Does it support digital diagnostics?
A: Yes, it provides full DDM for temperature, voltage, and optical power.
Q: Can I use this AOC in a high-temperature environment?
A: The operating temperature range is 0°C to 70°C.
Q: Is this a passive fiber cable?
A: No, it is an Active Optical Cable (AOC) with built-in transceivers.
Precautions
- Avoid bending the cable beyond a 30mm radius.
- Ensure ESD protection during handling and installation.
- Use only in environments within specified temperature and humidity ranges.
- Verify compatibility with host equipment before deployment.
