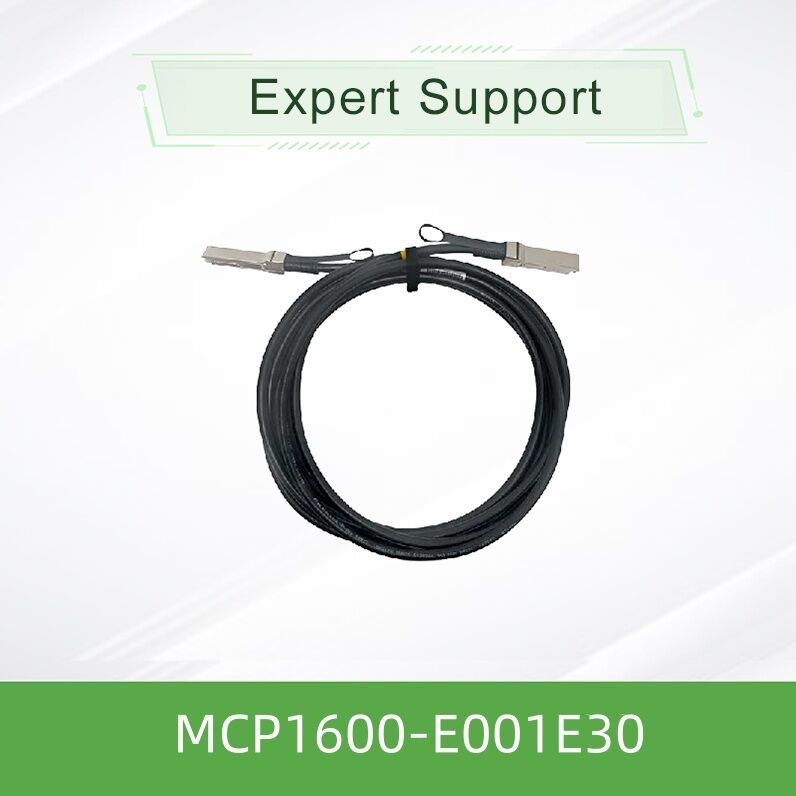

Mellanox MCP1600-E001E30 100Gb/s QSFP28 Direct Attach Copper Cable
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCP1600-E001E30 |
| Document: | PB_MCP1600-E0xxEyy_100Gbps_...AC.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 3 Meters |
| Name: | Mellanox DAC Cable MCP1600-E003E26 IB EDR 100Gb/s 4x 25G-NRZ QSFP28 LSZH 3m 26AWG Infiniband Network Cable | Keyword: | Mellanox DAC Cable |
| Highlight: | Mellanox 100Gb/s QSFP28 cable,Mellanox direct attach copper cable,QSFP28 DAC cable with warranty |
||
Product Description
The Mellanox MCP1600-E001E30 is a premium passive Direct Attach Copper (DAC) interconnect cable engineered for 100 Gigabit per second data transmission. This essential network hardware component provides a reliable, low-latency link for high-performance computing and data center environments, acting as a cost-optimal substitute for optical modules over very short distances.
Specifically designed for rack-level connectivity, this cable is a fundamental accessory for any high-speed network card setup requiring dependable port-to-port communication. This model from the proven mq9700 family offers a 1-meter reach utilizing high-quality 30 American Wire Gauge (AWG) conductors.
- Ultra-High Bandwidth: Delivers an aggregate bandwidth of 100 Gb/s through four independent 25 Gb/s channels
- Minimal Power Draw: Passive operation ensures power consumption remains below 0.1 Watt
- Enhanced Safety Design: Constructed with LSZH (Low Smoke Zero Halogen) jacket material
- Live Insertion Capable: Hot-pluggable design allows for installation without disrupting network services
- Superior Reliability: Achieves a Bit Error Rate (BER) superior to 1x10-15
- Intelligent Management: Host-readable EEPROM stores vital product information
The cable employs sophisticated passive twin-axial copper technology and is manufactured in full compliance with critical industry specifications including SFF-8665 for the QSFP28 form factor and SFF-8636 for management interface. It also conforms to RoHS directives for environmental responsibility.
| Parameter | Specification |
|---|---|
| Product Model | MCP1600-E001E30 |
| Aggregate Data Rate | 100 Gb/s |
| Connector Type | QSFP28 (Dual-ended) |
| Cable Length | 1.0 meter |
| Conductor Gauge | 30 AWG |
| Typical Power Use | < 0.1 Watt |
| Operating Temp Range | 0°C to +70°C (Case) |
| Part Number | Length | AWG | Primary Use Case |
|---|---|---|---|
| MCP1600-E001E30 | 1.0 m | 30 | Standard rack interconnect |
| MCP1600-E00AE30 | 0.5 m | 30 | Ultra-short intra-chassis |
| MCP1600-E01AE30 | 1.5 m | 30 | Extended rack |
| MCP1600-E002E30 | 2.0 m | 30 | Adjacent rack top |
| MCP1600-E02AE26 | 2.5 m | 26 | Rack-to-rack |
- Bending Limits: Adhere to minimum bend radius specifications: 35.5mm for single bends and 71mm for repeated bends
- Environmental Conditions: Operate within specified temperature (0°C to 70°C) and humidity (5% to 85% non-condensing) ranges
- Physical Handling: Avoid crushing, pinching, or applying excessive tensile load
- System Compatibility: Verify compatibility with your equipment's hardware compatibility list
- Static Electricity Protection: Use ESD protection when handling connectors
