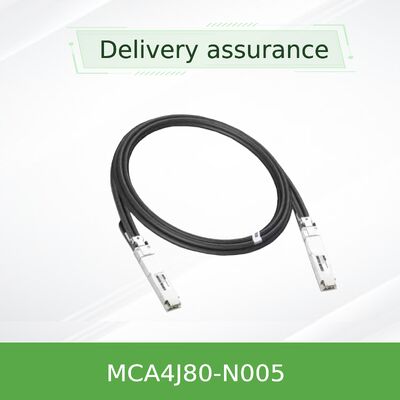

Mellanox DAC Cable Active Copper Cable with 800Gb/s NDR InfiniBand and 5 Meters Length
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCA4J80-N005(980-9I602-00N005) |
| Document: | MCA4J80-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox DAC Cable | Cable Length: | 5 Meters |
| Name: | Mellanox DAC Cable Active Copper Cable IB Twin Port NDR 800Gb/s OSFP 5 Meters MCA4J80-N005 | Keyword: | Mellanox DAC Cable |
| Highlight: | 800Gb/s Mellanox DAC Cable,NDR Active Copper Cable,5 meters InfiniBand Cable |
||
Product Description
MCA4J80-N005 800Gb/s OSFP Active Copper Cable (ACC)
The NVIDIA® MCA4J80 is a high-performance, twin-port OSFP to 2x400Gb/s OSFP Active Copper Cable (ACC), engineered for InfiniBand NDR and Ethernet networks. It delivers ultra-low latency and power efficiency, making it an ideal solution for high-density data center environments.
Key Features
- 800Gb/s total bandwidth with 2x400Gb/s bidirectional ports
- Active Copper Cable (ACC) technology with integrated equalizer IC
- Supports lengths up to 5 meters with minimal power consumption (1.5W per end)
- Hot-pluggable, RoHS compliant, and LSZH jacket for improved safety
- Compatible with both InfiniBand NDR and Ethernet protocols
Technology Overview
The MCA4J80 ACC utilizes 100G-PAM4 modulation across 8 channels per port. It features pre-emphasis equalization to extend cable reach while ensuring signal integrity. The cable is compliant with OSFP MSA Rev. 1.12 and supports SFF-8636 I²C management for real-time monitoring and identification.
How It Works
Each end of the cable incorporates an equalizer IC that compensates for signal attenuation and distortion, enabling stable data transmission over extended distances. An embedded EEPROM stores product identification and characteristics, allowing the host system to auto-configure the cable based on the connected switch protocol.
Applications
- Switch-to-switch connectivity in NVIDIA Quantum-2 InfiniBand and Spectrum-4 Ethernet environments
- Connecting NVIDIA DGX-H100 Cedar systems to top-of-rack switches
- High-performance computing (HPC), artificial intelligence (AI), and machine learning (ML) clusters
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 800Gb/s (2x400Gb/s) |
| Maximum Length | 5m |
| Power Consumption | 1.5W per end |
| Operating Temperature | 0°C to +70°C |
| Connector Type | OSFP |
| Compliance | OSFP MSA, SFF-8636, RoHS, LSZH |
Model Selection
| Model Number | Length | Cable Gauge | Description |
|---|---|---|---|
| MCA4J80-N003 | 3m | 30AWG | Standard top |
| MCA4J80-N004 | 4m | 30AWG | Standard top |
| MCA4J80-N005 | 5m | 26AWG | Standard top |
| MCA4J80-N003-FLT | 3m | 30AWG | Flat top |
| MCA4J80-N003-FTF | 3m | 30AWG | Flat to finned top |
Key Benefits
- Lower latency and power consumption compared to optical solutions
- Cost-effective for short-range high-speed connections
- Automatic protocol detection (InfiniBand or Ethernet)
- Robust construction with LSZH jacket and lead-free PCB
Service & Support
We provide comprehensive technical support, 24/7 customer service, and worldwide shipping. All products include a standard warranty and comply with relevant certifications (CE, FCC, RoHS, etc.).
Frequently Asked Questions
Q: What is the maximum length supported by this ACC cable?
A: The cable supports distances up to 5 meters using active equalization technology.
Q: Is this cable compatible with both InfiniBand and Ethernet?
A: Yes, it automatically detects and supports both protocols.
Q: What is the power consumption per end?
A: Each end consumes a maximum of 1.5W.
Installation & Handling Precautions
- Observe minimum bend radius: 5x cable diameter for a single bend, 10x for repeated bends
- Use ESD protection during installation and handling
- Do not operate outside specified temperature or humidity ranges
- Implement proper cable management to avoid physical stress or damage
