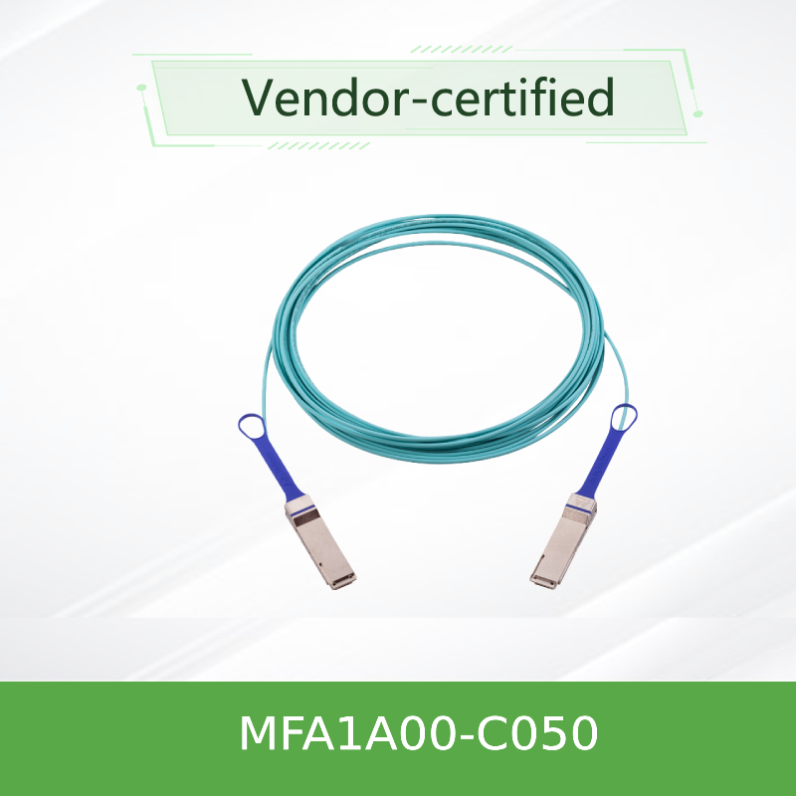

NVIDIA MFA1A00-C050 100Gb/s QSFP28 Active Optical Cable, 50m, for 100GbE Data Center Applications
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFA1A00-C050 |
| Document: | MFA1A00-xxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Lead Time: | According To Stock |
| Technology: | Ethernet | Length: | 5M |
| Supply Voltage: | -0.3-3.6 | Data Input Voltage: | -0.3-4.465 |
| Highlight: | NVIDIA QSFP28 active optical cable 50m,100GbE data center optical cable,Mellanox 100Gb/s QSFP28 cable with warranty |
||
Product Description
The MFA1A00-C050 represents NVIDIA's cutting-edge 100Gb/s Ethernet active optical cable, delivering exceptional bandwidth and reliability for demanding data center environments. This advanced network card solution provides superior performance compared to traditional copper alternatives.
- 100Gb/s Ethernet data transmission
- 50-meter reach with multi-mode fiber
- Hot-pluggable QSFP28 form factor
- Low 2.2W typical power consumption
- Comprehensive digital diagnostics
- RoHS compliant construction
The NVIDIA MFA1A00-C050 is a high-speed active optical cable designed for 100Gb/s Ethernet applications. This premium network card alternative features a QSFP28 form factor with integrated VCSEL-based transceivers, providing reliable connectivity for high-performance computing and data center infrastructures.
- Maximum Data Rate: 100 Gb/s per port
- Cable Length: 50 meters
- Interface: QSFP28 compliant with SFF-8665
- Power Supply: Single 3.3V with typical 2.2W consumption
- Fiber Type: Multi-mode (MMF) with aqua-colored jacket
- Operating Temperature: 0°C to 70°C
- Hot-Pluggable: Yes, for easy installation and replacement
This advanced network card solution employs Vertical Cavity Surface-Emitting Laser (VCSEL) technology with four parallel multi-mode fibers, each operating at data rates up to 26Gb/s. The cable incorporates selectable retiming capabilities and programmable input equalizers with output pre-emphasis for signal integrity optimization.
| Parameter | Specification | Units |
|---|---|---|
| Data Rate | 100 | Gb/s |
| Maximum Length | 100 | meters |
| Power Consumption (typical) | 2.2 | W per end |
| Operating Temperature | 0 to 70 | °C |
| Connector Type | QSFP28 | - |
| Fiber Type | Multi-mode | - |
- Data center spine-leaf architectures
- High-performance computing clusters
- Cloud infrastructure interconnects
- Storage area network connections
- Enterprise network backbone links
- Financial trading systems
- Extended Reach: 50-meter capability outperforms passive copper solutions
- Power Efficiency: 2.2W typical power consumption reduces operational costs
- Signal Integrity: Programmable equalization and pre-emphasis ensure reliable data transmission
- Comprehensive Monitoring: Digital diagnostic functions provide real-time performance data
- Interoperability: Tested compatibility with major networking equipment
- Deployment Flexibility: Hot-pluggable design enables seamless installation
What is the maximum distance supported by the MFA1A00-C050?
The MFA1A00-C050 supports distances up to 50 meters using multi-mode fiber, making this network card solution ideal for data center rack-to-rack connections.
Does this cable require special drivers?
No special drivers are needed. The cable operates with standard QSFP28 network interface controllers and is compatible with major switch platforms.
- Ensure minimum bend radius of 30mm during installation to prevent fiber damage
- Verify host system compatibility before deployment
- Operate within specified temperature range of 0°C to 70°C
- Utilize digital diagnostic monitoring for performance optimization
- Follow electrostatic discharge (ESD) precautions during handling
