NVIDIA MFS1S00-H005V 200Gb/s QSFP56 Active Optical Cable - 5m High-Speed Data Center Network Card
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H005V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 5 Meters |
| Model: | MFS1S00-H005V | ||
Product Description

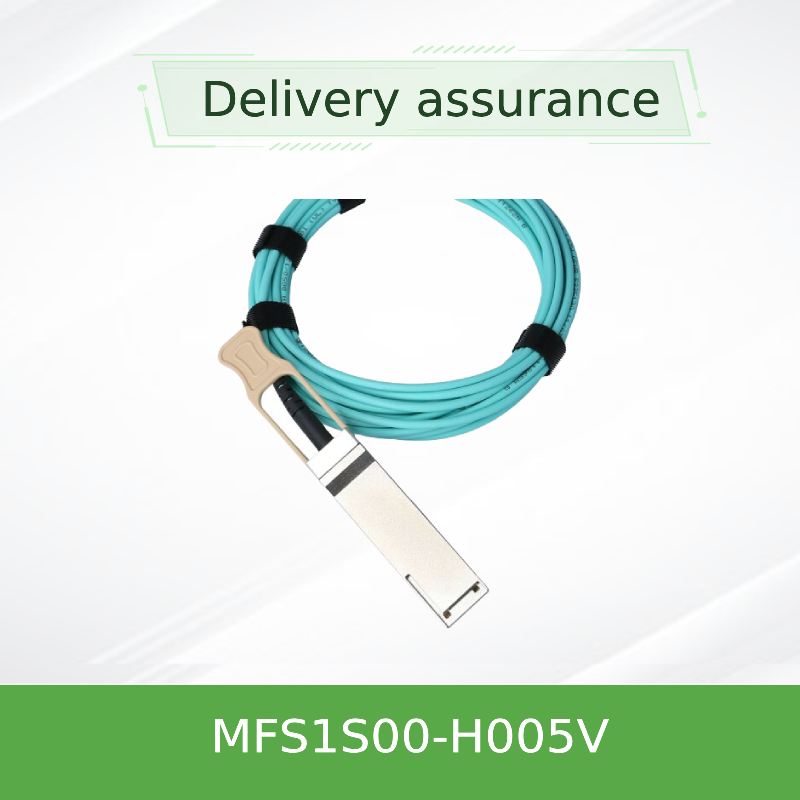

NVIDIA MFS1S00-H005V 200Gb/s QSFP56 Active Optical Cable
Premium High-Speed Networking Solution
Experience exceptional data transfer performance with the MFS1S00-H005V 200Gb/s QSFP56 Active Optical Cable, engineered for modern data center demands. This advanced network card solution delivers reliable, high-bandwidth connectivity with superior power efficiency.
Key Advantages:
- 200Gb/s Maximum Throughput - Quad 50Gb/s PAM4 modulation lanes
- Extended Reach - Up to 100-meter transmission distance
- Hot-Pluggable Design - Easy installation and replacement without system shutdown
- Energy Efficient - Typical power consumption of only 5.0W per end
- Comprehensive Compatibility - Supports InfiniBand HDR and 200GbE systems
Product Overview
The NVIDIA MFS1S00-H005V represents cutting-edge networking technology, providing a robust 200Gb/s active optical cable solution. This high-performance NIC card features a QSFP56 form factor with VCSEL-based optical transceivers, delivering superior performance compared to traditional copper alternatives. The MFS1S00-H005V model specifically offers a 5-meter reach, ideal for rack-to-rack connectivity in data-intensive environments.
Technical Characteristics
- Data Rate: 200Gb/s (4×50Gb/s PAM4)
- Form Factor: QSFP56 compliant with SFF-8665
- Cable Type: Active Optical Cable (AOC)
- Maximum Distance: 100 meters (model dependent)
- Power Consumption: 5.0W typical (each end with retiming)
- Power Supply: Single 3.3V operation
- Operating Temperature: 0°C to 70°C
- Management Interface: SFF-8636 I²C compliant
- Laser Safety: Class 1 laser product
- Regulatory Compliance: RoHS, CE, FCC, ICES
Advanced Technology
This innovative network card employs VCSEL (Vertical Cavity Surface-Emitting Laser) technology with PAM4 modulation, enabling high-speed data transmission while maintaining signal integrity. The cable incorporates programmable features including transmitter input equalization, receiver output amplitude, and pre-emphasis controls. Digital Diagnostic Monitoring (DDM) provides real-time performance tracking of optical power, bias current, voltage, and temperature parameters.
Operation Principles
The MFS1S00-H005V active optical cable functions by converting electrical signals to optical signals at each end. Electrical data enters through the QSFP56 connector, where it's processed by integrated circuitry and converted to optical signals transmitted through multi-mode fibers. At the receiving end, optical signals are converted back to electrical format. This bidirectional communication enables high-speed data transfer with minimal signal degradation over extended distances.
Application Environments
This high-performance NIC card is ideally suited for:
- Data center interconnects and spine-leaf architectures
- High-Performance Computing (HPC) clusters
- Artificial Intelligence and machine learning infrastructure
- Cloud computing and storage area networks
- InfiniBand HDR systems and 200GbE deployments
- Connections between SN3700 and SN4600 switches
Technical Specifications
| Parameter | Specification | Unit |
|---|---|---|
| Data Rate | 200Gb/s (4×50Gb/s PAM4) | Gb/s |
| Interface | QSFP56, SFF-8665 compliant | - |
| Cable Length | 5 meters | m |
| Power Consumption | 5.0W (typical, each end) | W |
| Operating Temperature | 0 to 70 | °C |
| Fiber Type | Multi-Mode Fiber (MMF) | - |
Product Selection Guide
| Model Number | Cable Length | Data Rate | Interface |
|---|---|---|---|
| MFS1S00-H003V | 3m | 200Gb/s | QSFP56 |
| MFS1S00-H005V | 5m | 200Gb/s | QSFP56 |
| MFS1S00-H010V | 10m | 200Gb/s | QSFP56 |
| MFS1S00-H100V | 100m | 200Gb/s | QSFP56 |
Competitive Advantages
This advanced network card delivers significant benefits over alternative solutions:
- Superior Performance: Delivers 200Gb/s throughput with minimal latency, outperforming standard NIC card options
- Enhanced Reliability: Rigorous production testing ensures consistent performance and durability
- Power Efficiency: Lower power consumption compared to alternative high-speed solutions
- Flexible Deployment: Hot-pluggable design enables easy installation and maintenance
- Future-Proof Technology: Supports emerging 200GbE standards and InfiniBand HDR
Service & Support
We stand behind our products with comprehensive service offerings:
- Warranty: Standard manufacturer warranty with extended options available
- Technical Support: 24/7 customer consultation and technical assistance
- Delivery: Efficient logistics with most orders processed within 24 hours
- Inventory: Over 10 million units in stock for immediate shipment
- Custom Solutions: Tailored configurations to meet specific requirements
Frequently Asked Questions
What systems are compatible with the MFS1S00-H005V network card?
This NIC card supports 200Gb/s InfiniBand HDR systems and 200 Gigabit Ethernet applications, including connections between SN3700 and SN4600 switches. It complies with SFF-8665 and SFF-8636 standards for broad compatibility.
What is the maximum transmission distance for this active optical cable?
The MFS1S00 series supports distances up to 100 meters using multi-mode fiber. The specific MFS1S00-H005V model provides a 5-meter reach, ideal for intra-rack and adjacent rack connections.
Does this product support hot-plugging?
Yes, the MFS1S00-H005V is designed with hot-pluggable capability, allowing installation and removal without powering down the host system, minimizing downtime during maintenance or reconfiguration.
What power requirements does this network card have?
The cable requires a single 3.3V power supply and consumes approximately 5.0W typical power per end when operating with retiming enabled on all lanes.
Important Considerations
- Ensure proper ESD precautions during handling and installation
- Verify host system compatibility before purchase
- Maintain minimum bend radius of 30mm during installation
- This equipment is designed for commercial environments and may cause interference in residential areas
- Operating temperature range: 0°C to 70°C with relative humidity between 5% and 85%
- Class 1 laser product - does not pose a hazard during normal operation
