Cisco Catalyst 9200-48T-A 48-Port Data Switch Network Advantage License Enterprise Gigabit Ethernet
Product Details:
| Brand Name: | Cisco |
| Model Number: | C9200-48T-A |
| Document: | nb-06-cat9200-ser-data-shee...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | C9200-48T-A | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≧48 | Function: | Lacp, Poe, Qos, Snmp, Stackable, Vlan Support |
| Technology: | Gigabit Ethernet | Power Supply: | Pwr-C6-600wac |
| Transport Package: | Packing | Specification: | 4.4 X 44.5 X 35.0 Cm |
| Trademark: | Cisco | Origin: | American |
Product Description

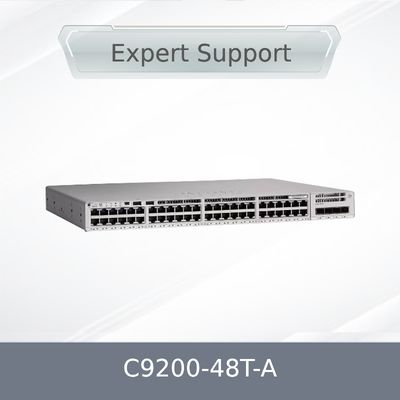

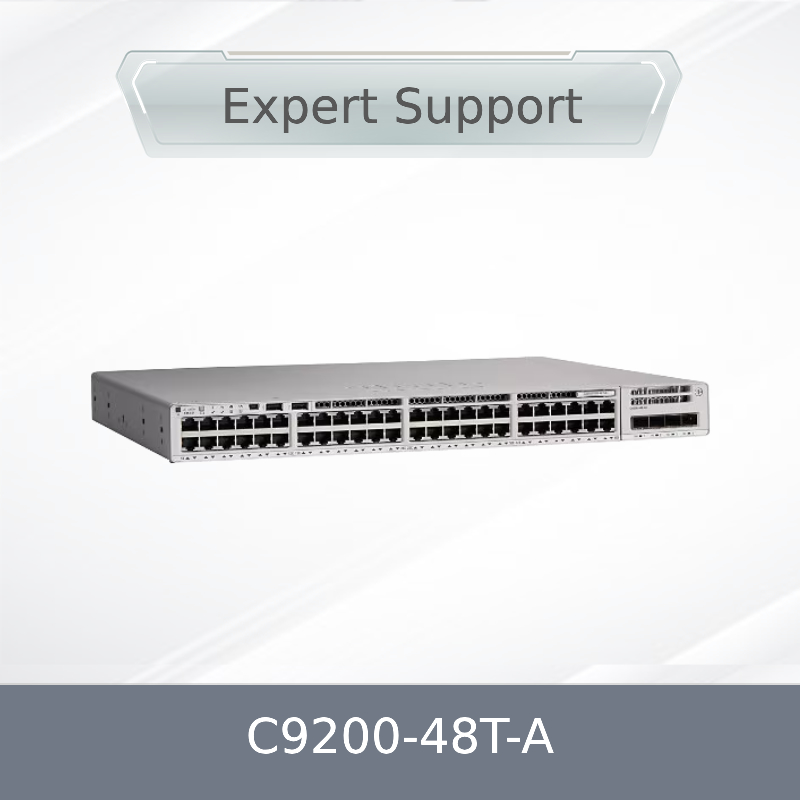

Cisco Catalyst 9200-48T-A 48-Port Data Switch
Enterprise-Grade Networking Solution
The Cisco Catalyst 9200-48T-A represents the next generation of access layer switching, delivering robust performance, advanced security features, and operational simplicity. This 48-port data switch is engineered to meet the demanding requirements of modern enterprise networks while providing investment protection for future innovations.
Key Highlights:
- 48 x 1G Ethernet data ports with flexible uplinks
- Network Advantage license with advanced feature set
- Cisco IOS XE operating system for automation
- Hardware-based security with MACsec encryption
- Stacking capability up to 8 units with 160 Gbps bandwidth
- Energy Efficient Ethernet for reduced power consumption
Product Characteristics
Performance & Scalability
- 176 Gbps switching capacity (336 Gbps with stacking)
- 130.95 Mpps forwarding rate (250 Mpps with stacking)
- Supports up to 8-unit stacking with StackWise-160
- 32,000 MAC address capacity
Security Features
- AES-128 MACsec encryption on all ports
- Trustworthy solutions with Cisco Trust Anchor
- Secure Boot and image signing verification
- IEEE 802.1X network access control
Core Technologies
The Catalyst 9200 Series incorporates multiple advanced technologies to deliver enterprise-class performance:
- UADP 2.0 Mini ASIC - Programmable pipeline with integrated CPU for optimized scale and cost structure
- Cisco IOS XE - Common operating system supporting model-driven programmability and streaming telemetry
- StackWise-160 - Virtual switching technology with 160 Gbps stacking bandwidth
- Energy Efficient Ethernet (EEE) - IEEE 802.3az compliance for reduced power consumption
- Flexible NetFlow - Enhanced visibility with up to 16,000 flow entries
Operational Architecture
The C9200-48T-A operates on a distributed forwarding architecture where the control plane and data plane are separated for enhanced reliability. The switch utilizes Cisco's UADP 2.0 Mini application-specific integrated circuit with programmable pipeline capabilities, enabling template-based allocation of Layer 2 and Layer 3 forwarding resources, Access Control Lists, and Quality of Service entries.
For high availability scenarios, the switch supports stateful switchover (SSO) with sub-50ms failover in stacked configurations, ensuring continuous network operation during maintenance or unexpected outages.
Application Scenarios
Enterprise Campus Access
Ideal for connecting end-user devices in office environments with reliable gigabit connectivity and advanced security features.
Branch Office Networking
Provides robust connectivity for remote offices with centralized management capabilities and redundant stacking options.
Educational Institutions
Supports high-density classroom deployments with energy-efficient operation and simplified management interfaces.
Healthcare Networks
Ensures reliable connectivity for medical devices with perpetual PoE and enhanced security for sensitive data environments.
Technical Specifications
| Specification | C9200-48T-A |
|---|---|
| Total Ports | 48 x 1G Ethernet (RJ-45) |
| Uplink Options | Modular (4x1G, 4x10G, 2x25G, 2x40G) |
| Switching Capacity | 176 Gbps (336 Gbps with stacking) |
| Forwarding Rate | 130.95 Mpps (250 Mpps with stacking) |
| Power Supply | PWR-C6-125WAC (default), dual redundant support |
| Dimensions (HxWxD) | 1.73" x 17.5" x 15.4" (4.4 x 44.5 x 39.1 cm) |
| Weight | 11.02 lb (5.0 kg) |
| Operating Temperature | -5°C to +45°C (up to 5000 feet) |
| MTBF | 571,440 hours |
| Power Consumption | 56.07W typical (no PoE loading) |
Model Selection Guide
| Model | Port Configuration | Power | License | Use Case |
|---|---|---|---|---|
| C9200-48T-A | 48x1G data | 125W AC | Network Advantage | General office/data connectivity |
| C9200-48P-A | 48x1G PoE+ | 1KW AC | Network Advantage | Powering IP phones, APs, cameras |
| C9200-48PL-A | 48x1G partial PoE+ | 600W AC | Network Advantage | Mixed data/PoE environments |
| C9200-48PXG-A | 8x mGig, 40x1G PoE+ | 1KW AC | Network Advantage | High-speed wireless (Wi-Fi 6/6E) |
Competitive Advantages
Enhanced Resiliency
Field-replaceable power supplies and fans with redundant options ensure maximum uptime. StackWise-160 technology provides sub-50ms failover for critical applications.
Advanced Security
Hardware-based AES-128 MACsec encryption, Cisco Trust Anchor module, and Secure Boot provide comprehensive protection against evolving security threats.
Service & Support
We provide comprehensive service offerings to ensure optimal performance of your network infrastructure:
- Warranty: Cisco Enhanced Limited Lifetime Warranty with Next-Business-Day hardware replacement
- Technical Support: 90 days of 8x5 Cisco TAC support included
- Delivery: Stock availability with expedited shipping options
- Integration Services: Professional deployment and configuration assistance available
- Extended Support: Software subscription and maintenance renewals
Frequently Asked Questions
What is the difference between Network Essentials and Network Advantage licenses?
Network Essentials provides foundational switching capabilities including Layer 2, static routing, and basic security. Network Advantage adds advanced features such as full dynamic routing (OSPF, EIGRP, BGP), VRF, VXLAN, SGT, and enhanced security including MACsec-256 on C9200CX models.
Can C9200-48T-A be stacked with other Catalyst 9200 models?
Yes, the C9200-48T-A can be stacked with other C9200 models (modular uplink SKUs) using StackWise-160 technology. However, mixed stacking with C9200L (fixed uplink) or C9200CX (compact) models is not supported.
What is the maximum power consumption of this switch?
Under typical operating conditions with no PoE loading, the C9200-48T-A consumes approximately 56W. With a 125W power supply, the switch can support various modular uplink configurations while maintaining energy-efficient operation.
Does this switch support software-defined access (SD-Access)?
Yes, the C9200-48T-A with Network Advantage license supports SD-Access as a fabric edge device, enabling policy-based automation, network segmentation, and unified management through Cisco Catalyst Center.
Installation & Operational Notes
Important Considerations
- Ensure adequate ventilation and maintain ambient temperature between -5°C to +45°C for optimal performance
- Use shielded cables for installations in locations other than telecom centers to meet EMC compliance
- Verify compatibility of network modules and transceivers using the Cisco Compatibility Matrix
- For stacking configurations, use official Cisco StackWise cables and ensure all members have the same license level
- Plan for appropriate rack space considering chassis dimensions and cable management requirements
- Configure redundant power supplies for critical deployments to ensure continuous operation
