New Original C9200-24p-a 24-Port Poe+ Switch with Network Advantage
Product Details:
| Brand Name: | Cisco |
| Model Number: | C9200-24P-A |
| Document: | nb-06-cat9200-ser-data-shee...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | C9200-24P-A | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | 24 | Function: | Lacp, Poe, Qos, Snmp, Stackable, Vlan Support |
| Technology: | Gigabit Ethernet | Stacking Bandwidth: | 160 Gbps |
| Switching Capacity: | 128 Gbps | Transport Package: | Packing |
| Specification: | 4.4 X 44.5 X 35.0 Cm | Trademark: | Cisco |
| Origin: | American | ||
| Highlight: | C9200 24 Port Poe+ Switch,24 Port Poe+ Switch |
||
Product Description

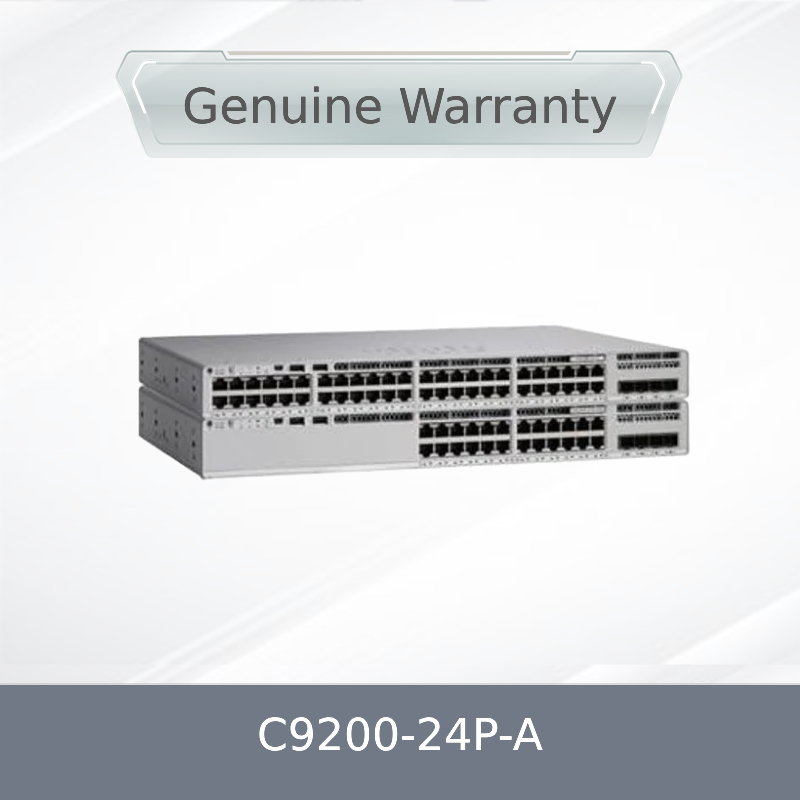

Cisco Catalyst 9200 Series Switches: C9200-24P-A
The Cisco Catalyst 9200-24P-A switch is a high-performance, secure, and scalable access layer switch designed for modern enterprise networks. It offers full Power over Ethernet Plus (PoE+) support, advanced security features, and seamless integration with intent-based networking solutions. Ideal for businesses seeking reliability and future-proofing, this switch ensures optimal performance for data, voice, and video applications.
Key Features
- 24 ports with full PoE+ support (up to 30W per port)
- Network Advantage license for advanced features
- Modular uplink options for flexible connectivity
- StackWise-160 support with up to 160 Gbps stacking bandwidth
- Cisco IOS XE Software for automation and programmability
Technology
The Catalyst 9200-24P-A leverages Cisco's UADP 2.0 Mini ASIC with an integrated CPU, providing optimized scale and cost efficiency. It supports advanced technologies such as IEEE 802.3at PoE+, MACsec encryption, and Cisco Software-Defined Access (SD-Access) for secure segmentation. The switch also features model-driven programmability and streaming telemetry for enhanced visibility and control.
Working Principle
The switch operates by forwarding data packets between connected devices using high-speed switching fabric. It supports Layer 2 and Layer 3 routing protocols, including OSPF, EIGRP, and RIP. The PoE+ functionality delivers power to connected devices such as IP phones and wireless access points, eliminating the need for separate power sources. The switch can be stacked with other Catalyst 9200 switches to form a single virtual switch, simplifying management and increasing resiliency.
Applications
- Connecting IP phones, cameras, and wireless access points
- Supporting IoT devices and smart buildings
- Enabling secure network segmentation with SD-Access
- Providing high-speed access to servers and storage systems
Specification Table
| Attribute | Value |
|---|---|
| Product Model | C9200-24P-A |
| Ports | 24 x PoE+ RJ-45 ports |
| Uplinks | Modular (4x1G or 4x10G options) |
| PoE Budget | 740W with dual power supplies |
| Switching Capacity | 128 Gbps (288 Gbps with stacking) |
| Forwarding Rate | 95.23 Mpps (214 Mpps with stacking) |
| Power Supply | PWR-C6-600WAC (default) |
| Dimensions (HxWxD) | 1.73" x 17.5" x 15.4" (4.4 x 44.5 x 39.1 cm) |
| Weight | 12.12 lbs (5.5 kg) |
| MTBF | 422,310 hours |
Advantages
- Superior PoE+ support for powering devices directly
- High resiliency with redundant power and fans
- Advanced security features including MACsec and Trust Anchor
- Flexible management via CLI, Cisco Catalyst Center, or Meraki Dashboard
- Future-proof with SD-Access and IoT readiness
Service and Support
- Cisco Enhanced Limited Lifetime Warranty
- Next-business-day hardware replacement
- 24/7 customer consultation and technical support
- Integration and deployment assistance
FAQ
What is the maximum PoE power available?
With a single PWR-C6-600WAC power supply, the available PoE power is 370W. With an additional secondary power supply, it can reach 740W.
Can I stack the C9200-24P-A with other switches?
Yes, it supports StackWise-160 stacking with up to 8 units of similar Catalyst 9200 switches, providing a single management plane.
Does it support cloud management?
Yes, it can be managed via Cisco Catalyst Center or Meraki Dashboard, offering both on-premises and cloud-based management options.
What licensing is required?
The switch comes with a Network Advantage license. Additional DNA Essentials or Advantage subscriptions are available for advanced features.
Is it energy efficient?
Yes, it supports Energy Efficient Ethernet (EEE) and offers low-power modes for unused ports, reducing overall energy consumption.
Precautions
- Ensure proper ventilation and operating temperature (0°C to 45°C)
- Use compatible Cisco network modules and transceivers
- Follow local safety and EMC regulations during installation
- Verify power requirements for connected PoE devices
- Regularly update IOS XE software for security patches
