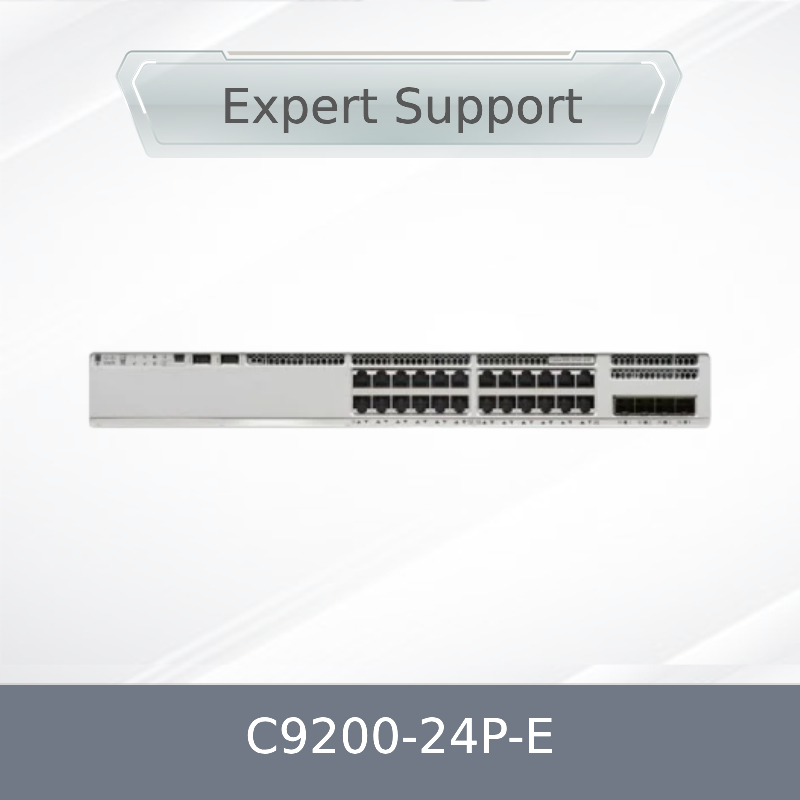

Original C9200-24p-E 9200 Layer 2 Ethernet 24 Port Poe Network Switch with Qos Function
Product Details:
| Brand Name: | Cisco |
| Model Number: | C9200-24P-E |
| Document: | nb-06-cat9200-ser-data-shee...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | C9200-24P-E | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | 24 | Function: | Lacp, Poe, Qos, Snmp, Stackable, Vlan Support |
| Technology: | Gigabit Ethernet | Poe Port Power: | 370W |
| Switch Capacity: | 128 Gbps | Transport Package: | Packing |
| Specification: | 1.73 X 17.5 X 13.8 Cm | Trademark: | Cisco |
| Origin: | American Samoa | ||
| Highlight: | 24 Port PoE Network Switch,C9200-24p-E Network Switch,9200 Layer 2 PoE Network Switch |
||
Product Description
Product Overview
The Cisco Catalyst 9200-24P-E Switch is a robust, high-performance 24-port Gigabit Ethernet switch designed for modern enterprise access layer deployments. It delivers full Power over Ethernet Plus (PoE+) support, providing up to 30W per port to power devices such as IP phones, wireless access points, and IoT endpoints. As part of the intent-based Catalyst 9200 Series, it offers enhanced security, scalability, and operational simplicity, making it an ideal solution for business-critical networks.
Key Selling Points
- Full PoE+ support on all 24 ports with dynamic power allocation
- Advanced security features including MACsec encryption and Cisco Trust Anchor
- StackWise-160 support for up to 160 Gbps stacking bandwidth
- Cisco IOS XE Software for automation and programmability
- Energy-efficient design with ENERGY STAR® certification available
Key Features
- 24 x 10/100/1000 PoE+ ports, 4 x modular uplink slots
- Support for IEEE 802.3at PoE+ (up to 30W per port)
- Redundant power supply support with field-replaceable units (FRUs)
- Cisco StackWise-160 technology for scalable stacking
- Cisco IOS XE with model-driven programmability and RESTCONF/NETCONF
- SD-Access support for simplified network segmentation
- AES-128 MACsec encryption for secure communications
Core Technologies
The Catalyst 9200-24P-E leverages Cisco's UADP 2.0 Mini ASIC with an integrated CPU, enabling high-performance switching and advanced features. It supports a wide range of technologies including:
- IEEE 802.1AE MACsec for encryption
- IEEE 802.3at PoE+ for powered device support
- Cisco StackWise-160 for virtual stacking
- Cisco IOS XE for automation and telemetry
- Precision Time Protocol (PTP) for time synchronization
How It Works
The switch operates as an access layer device, connecting end-user devices and providing power via PoE+. It uses hardware-based forwarding through the UADP ASIC, ensuring low latency and high throughput. For management, it supports both traditional CLI and modern programmatic interfaces like NETCONF/YANG. In stacked configurations, multiple units operate as a single logical device with unified management.
Applications
- Enterprise campus access layer deployments
- Mid-market branch office networks
- Educational institutions and classrooms
- Healthcare environments for connected devices
- Retail and hospitality PoE-enabled installations
Specifications
| Specification | Value |
|---|---|
| Ports | 24 x 10/100/1000 PoE+ RJ-45 |
| Uplinks | 4 x modular slots (sold separately) |
| PoE Budget | 370W (with single PWR-C6-600WAC) |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Stacking Bandwidth | 160 Gbps (StackWise-160) |
| Power Supply | PWR-C6-600WAC (default) |
| Dimensions (HxWxD) | 1.73" x 17.5" x 15.4" (with FEP and fan) |
| Weight | 12.12 lb (5.5 kg) |
| MTBF | 422,310 hours |
Advantages & Differentiators
- Superior PoE capabilities with perpetual PoE support during reboots
- Investment protection with modular uplinks supporting 1G/10G/25G/40G
- Advanced security with hardware-based encryption and secure boot
- Simplified management through Cisco Catalyst Center or Meraki dashboard
- Lower TCO with energy-efficient design and flexible licensing
Service & Support
All Catalyst 9200 Series switches come with Cisco's Enhanced Limited Lifetime Warranty, including next-business-day hardware replacement and 90 days of 8x5 TAC support. We offer flexible licensing terms (3, 5, or 7 years) and global logistics support with most orders shipped within 3-5 business days.
Frequently Asked Questions
Q: What is the maximum PoE power available?
A: With a single PWR-C6-600WAC power supply, the switch provides 370W PoE power. With an identical secondary power supply, this increases to 740W.
Q: Can this switch be stacked with other models?
A: Yes, it supports StackWise-160 technology and can be stacked with other C9200 models with the same license level, but not with C9200L or C9200CX models.
Q: Does it support SD-Access?
A: Yes, the Catalyst 9200-24P-E supports SD-Access with up to 4 Virtual Networks (VNs) and 25 fabric-enabled access points.
Q: What management options are available?
A: It can be managed via CLI, Cisco Catalyst Center, Meraki dashboard, or embedded WebUI.
Q: Is this switch ENERGY STAR certified?
A: The C9200-24P-E model itself is not ENERGY STAR certified, but several C9200L models in the series are certified.
Important Notes
- Ensure proper cooling and ventilation – operating temperature: -5°C to +45°C
- Use only compatible Cisco power supplies and modules
- For PoE calculations, consider both port density and power budget
- Verify software compatibility for specific features (IOS-XE 16.9.2 or later required)
- Follow local electrical and safety regulations during installation
