C9200-24t-a New Cisco Catalyst Access 24X 1g RJ45 Ports Gigabit Ethernet Modular Enterprise Switch C9200-24t-a
Product Details:
| Brand Name: | Cisco |

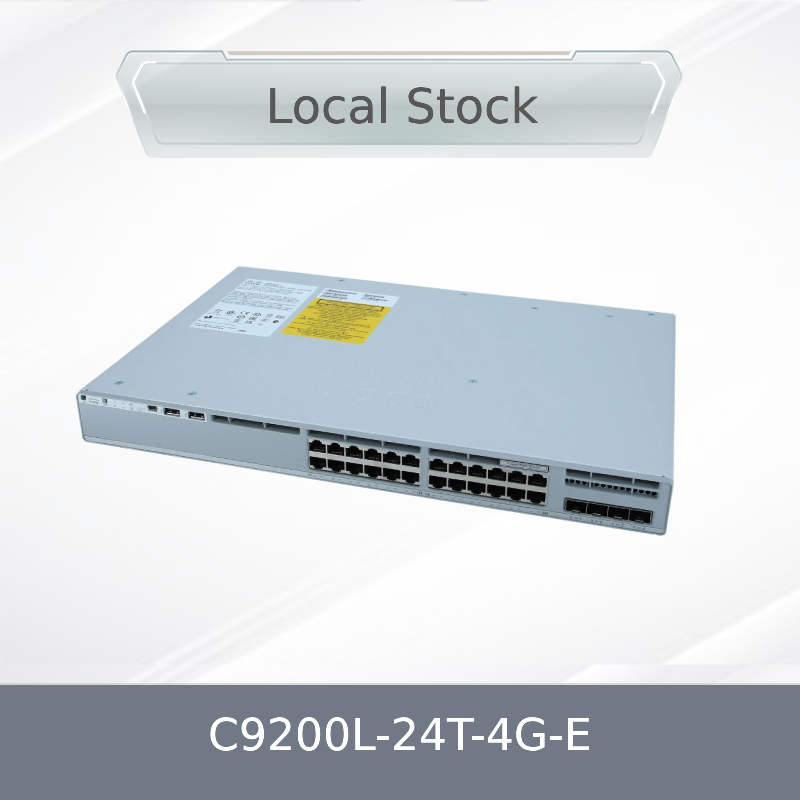

| Model Number: | C9200L-24t-4G-E |
| Document: | nb-06-cat9200-ser-data-shee...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | C9200-24T-A | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | 24 | Function: | Lacp, Poe, Qos, Snmp, Stackable, Vlan Support |
| Technology: | Gigabit Ethernet | Transport Package: | Packing |
| Specification: | 445 X 285 X 44.5 Mm | Trademark: | Cisco |
| Origin: | American | ||
| Highlight: | 24 1G RJ45 Ports Cisco Switch,C9200-24t-a Cisco Catalyst Switch,RJ45 Ports Gigabit Enterprise Switch |
||
Product Description
The Cisco Catalyst C9200-24T-A is a high-performance, 24-port Gigabit Ethernet data switch designed for modern enterprise access layers. It delivers robust security, seamless scalability, and advanced management capabilities through Cisco IOS XE. Ideal for medium to large businesses, this switch supports intent-based networking with features like SD-Access, programmable automation, and enhanced resiliency. It offers a future-proof foundation for digital transformation with flexible licensing and cloud management options.
- 24 x 1G data ports with modular uplink flexibility
- Cisco IOS XE with SD-Access and automation support
- Hardware-based encryption (MACsec) and advanced security
- StackWise-160 support up to 160 Gbps stacking bandwidth
- Energy-efficient design with ENERGY STAR® certification
- Full PoE+ support on select models (not on C9200-24T-A)
- Field-replaceable power supplies and fans
- Plug and Play (PnP) deployment
- Cloud management via Meraki dashboard or Cisco Catalyst Center
- Blue beacon LEDs for easy identification
- RFID tags for asset management
The Catalyst 9200 Series switches leverage Cisco's UADP 2.0 Mini ASIC with integrated CPU for optimized performance and scalability. They support:
- IEEE 802.1AE MACsec encryption (AES-128)
- IEEE 802.3at PoE+ and 802.3bt UPOE (on PoE models)
- Cisco StackWise-160 and StackWise-80 technology
- NETCONF/YANG for model-driven programmability
- Precision Time Protocol (PTP) on select models
The Cisco Catalyst 9200 Series switches operate on a hardware-based forwarding architecture using Cisco Express Forwarding (CEF). They process traffic at line rate using dedicated , ensuring low latency and high throughput. The switches support virtual stacking, allowing multiple units to operate as a single logical device with unified management. Advanced QoS, ACLs, and traffic monitoring are handled in hardware, while Cisco IOS XE provides a programmable software layer for automation and telemetry.
- Enterprise campus access layer deployments
- Branch office networking
- SD-Access fabric edge and extended node roles
- IoT and converged network environments
- Cloud-managed network infrastructure
| Attribute | Value |
|---|---|
| Model | C9200-24T-A |
| Ports | 24 x 1G RJ-45 |
| Uplinks | Modular (sold separately) |
| Stacking | StackWise-160 (160 Gbps) |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Power Supply | PWR-C6-125WAC (default) |
| Dimensions (HxWxD) | 1.73" x 17.5" x 15.4" |
| Weight | 11.02 lbs (5.0 kg) |
| MTBF | 587,800 hours |
- Superior scalability with stacking support for up to 8 units
- Advanced security features including Trust Anchor and MACsec
- Energy-efficient operation with EEE and low-power modes
- Flexible management via CLI, WebUI, Catalyst Center, or Meraki cloud
- Future-proof with software-defined networking and automation capabilities
- Cisco Enhanced Limited Lifetime Warranty (E-LLW)
- Next-business-day hardware replacement
- 90-day 8x5 Cisco TAC support
- 24/7 customer service and technical consultation
- Global shipping and logistics support
Q: Does the C9200-24T-A support Power over Ethernet?
A: No, the C9200-24T-A is a data-only switch. For PoE support, consider the C9200-24P-A or C9200-24PB-A models.
Q: What is the maximum stacking bandwidth?
A: The C9200-24T-A supports StackWise-160 with up to 160 Gbps stacking bandwidth.
Q: Can I manage this switch via the cloud?
A: Yes, it supports cloud management via Cisco Meraki dashboard and Cisco Catalyst Center.
Q: What licenses are required?
A: The switch comes with Network Advantage. Add-on Cisco DNA or Catalyst software subscriptions are available for advanced features.
Q: Is SD-Access supported?
A: Yes, the C9200-24T-A supports SD-Access with up to 4 Virtual Networks.
- Ensure compatible network modules and stacking cables are used.
- Operating temperature: -5°C to +45°C (up to 5000 ft altitude).
- Use shielded cables for non-telecom center installations per EMC standards.
- Verify power supply compatibility and redundancy requirements.
- Follow local safety and electrical codes during installation.
