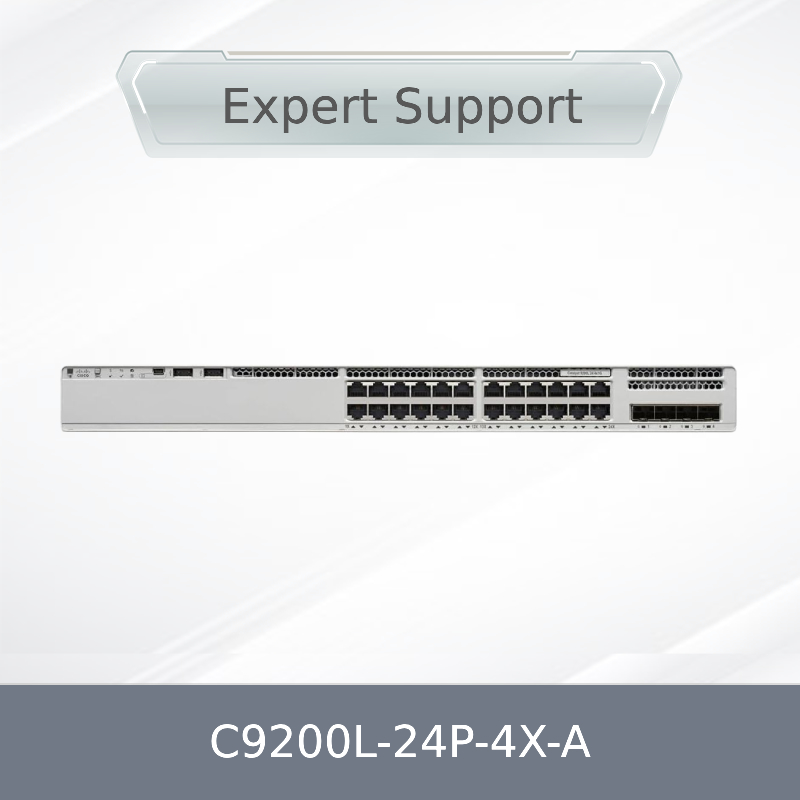

Cisco Catalyst 9200L-24P-4X-A Switch: Advanced 24-Port PoE+ Access Switch

1. Product Overview

The Cisco Catalyst 9200L-24P-4X-A is a high-performance, energy-efficient access switch designed for modern enterprise networks. It offers 24 Power over Ethernet Plus (PoE+) ports and four 1/10G SFP+ uplinks, making it ideal for powering devices like IP phones, wireless access points, and IoT endpoints while ensuring reliable connectivity. This switch is part of the Cisco Catalyst 9200 Series, which extends intent-based networking to a broader range of deployments with enhanced security, resiliency, and operational simplicity.

2. Key Features

• 24 x PoE+ ports (IEEE 802.3at) with up to 30W per port
• 4 x 1/10G SFP+ fixed uplinks for high-speed aggregation
• ENERGY STAR® certified for reduced power consumption
• Cisco IOS XE Software for advanced automation and security
• StackWise-80 support for scalable stacking up to 8 units
• Enhanced security with MACsec encryption, Cisco Trust Anchor, and SD-Access support
• Cloud management via Cisco Catalyst Center or Meraki dashboard

3. Technology

The Catalyst 9200L-24P-4X-A leverages Cisco's UADP 2.0 Mini ASIC with an integrated CPU, providing optimized performance and scalability. It supports advanced features such as:

• IEEE 802.1AE MACsec encryption for secure communications
• IEEE 802.3bt Class 6 and Cisco UPOE for high-power devices
• Cisco Software-Defined Access (SD-Access) for policy-based automation
• Flexible NetFlow (FNF) for enhanced network visibility
• Precision Time Protocol (PTP) for accurate time synchronization

4. Working Principle

The switch operates on Cisco IOS XE, which uses a programmable pipeline to handle Layer 2 and Layer 3 forwarding, ACLs, and QoS. It supports dynamic power allocation for PoE devices, ensuring efficient power management. The stacking capability allows multiple switches to function as a single virtual switch, simplifying management and increasing resiliency.

5. Applications

Ideal for:

• Enterprise access layer deployments
• Campus and branch office networks
• IoT and smart building infrastructure
• Unified communications and collaboration systems
• Secure wireless access point connectivity

6. Specifications

7. Advantages

• ENERGY STAR certification reduces operational costs
• Full PoE+ support simplifies deployments and reduces cabling
• StackWise-80 enables scalable and resilient stack configurations
• Advanced security features protect against cyber threats
• Cloud management options provide operational flexibility

8. Service & Support

We offer:

• Cisco Enhanced Limited Lifetime Warranty
• Next-business-day hardware replacement
• 24/7 technical support and consultation
• Global shipping with real-time tracking
• Customized integration and configuration services

9. FAQ

Q: What is the maximum PoE power available?
A: With a single PWR-C5-600WAC power supply, the switch provides 370W PoE power. With a secondary PSU, it can deliver up to 740W.

Q: Does this switch support stacking?
A: Yes, it supports StackWise-80 with up to 8 units and 80 Gbps stacking bandwidth.

Q: Is SD-Access supported?
A: Yes, the switch supports SD-Access for policy-based automation and segmentation.

Q: Can it be managed via the cloud?
A: Yes, it supports cloud management through Cisco Catalyst Center or Meraki dashboard.

Q: What is the warranty period?
A: The switch comes with a Cisco Enhanced Limited Lifetime Warranty.

10. Precautions

• Ensure proper ventilation and operating temperature (0°C to 45°C)
• Use shielded cables for EMI-sensitive environments
• Verify power requirements for connected PoE devices
• Follow local safety and compliance regulations during installation
• Regularly update IOS XE software for security patches
