C9200L-24p-4G-E Cisco Catalyst 24 Port Poe Layer3 Managed Gigabit Ethernet 4 SFP Port Stackable Network Switch C9200L-24p-4G-E
Product Details:
| Brand Name: | Cisco |
| Model Number: | C9200L-24P-4G-E |
| Document: | nb-06-cat9200-ser-data-shee...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | C9200L-24P-4G-E | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | 24 | Function: | Lacp, Poe, Qos, Snmp, Stackable, Vlan Support |
| Technology: | Ethernet Switch | Switch Capacitywith Stacking: | 56 Gbps |
| Forwarding Rate: | 83.33 Mpps | Transport Package: | Packing |
| Specification: | 4.4 X 44.5 X 28.8 Cm | Trademark: | Cisco |
| Origin: | American | ||
| Highlight: | Stackable Network Switch,Cisco 24 Port Poe Switch |
||
Product Description

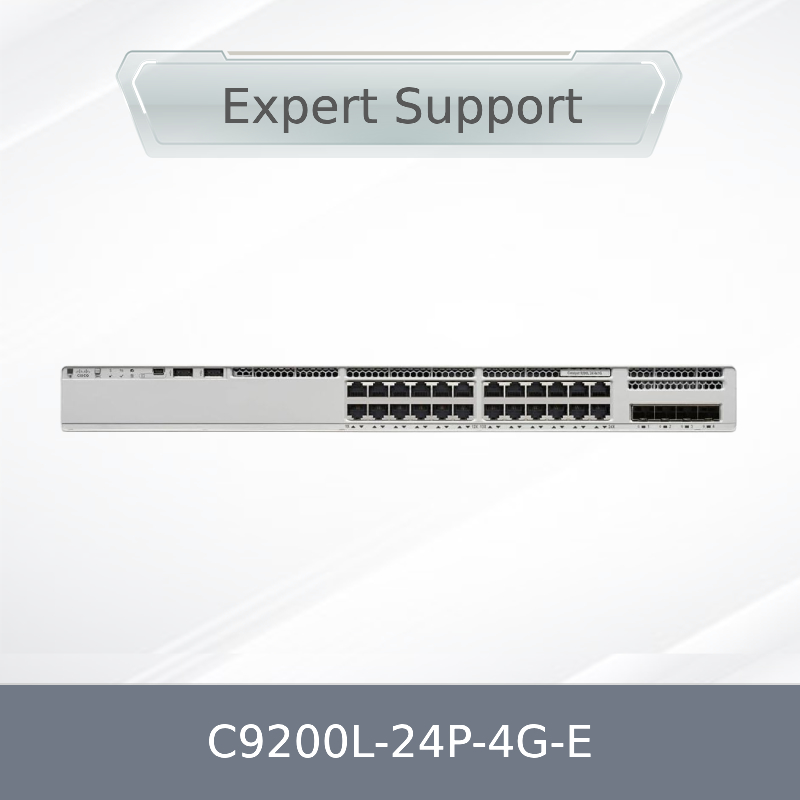

Cisco Catalyst C9200L-24P-4G-E Switch
Product Overview
The Cisco Catalyst C9200L-24P-4G-E is a 24-port Gigabit Ethernet switch designed for access layer deployments in enterprise networks. Part of the robust Catalyst 9200 Series, this switch delivers full Power over Ethernet Plus (PoE+) support, providing up to 30W per port to power devices such as IP phones, wireless access points, and IoT endpoints. With fixed 4x1G uplinks, this model offers a cost-effective solution for small to medium-sized business networks, campus environments, and branch offices. The switch supports advanced features like Layer 3 static routing, QoS, and comprehensive security protocols, making it an ideal choice for modern network infrastructure.
Key Features
- 24 x Gigabit Ethernet ports with full PoE+ support (up to 30W per port)
- 4 x fixed 1G SFP uplink ports
- Energy Efficient Ethernet (EEE) for reduced power consumption
- Cisco IOS XE Software for advanced automation and security
- StackWise-80 support for scalable stacking up to 8 units
- Enhanced limited lifetime warranty with next-business-day replacement
Technology & Standards
The C9200L-24P-4G-E supports a wide range of industry standards and protocols, including IEEE 802.3af/at (PoE+), IEEE 802.1Q (VLAN), IEEE 802.1p (CoS), IEEE 802.3ad (LACP), and IEEE 802.1X for network access control. It also features Cisco Trust Anchor technologies for hardware and software integrity, ensuring a secure supply chain and protection against cyber threats.
Applications
This switch is ideal for:
- Enterprise access layer deployments
- Small and medium business networks
- Educational campuses and healthcare facilities
- Retail and hospitality environments
- Branch office networking
Specifications
| Attribute | Value |
|---|---|
| Ports | 24 x 10/100/1000 PoE+, 4 x 1G SFP |
| PoE Budget | 370W (single PSU), 740W (dual PSU) |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.67 Mpps |
| Power Supply | PWR-C5-600WAC (default) |
| Dimensions (HxWxD) | 1.73" x 17.5" x 12.9" |
| Weight | 10.38 lbs (4.71 kg) |
| MTBF | 392,210 hours |
Advantages
- Full PoE+ support for connected devices
- Energy Star certified for reduced power consumption
- Stackable with StackWise-80 technology
- Advanced security features including MACsec and Trust Anchor
- Simplified management via Cisco Catalyst Center or CLI
Service & Support
We offer comprehensive support including:
- Cisco Enhanced Limited Lifetime Warranty
- Next-business-day hardware replacement
- 24/7 technical consultation and support
- Global shipping with real-time tracking
- Custom configuration and integration services
FAQ
Q: What is the maximum PoE power available?
A: The switch provides 370W with a single power supply and 740W with dual power supplies.
Q: Can this switch be stacked with other models?
A: Yes, it supports StackWise-80 technology and can be stacked with other C9200L switches.
Q: Does it support cloud management?
A: Yes, it can be managed via Cisco Catalyst Center or Meraki dashboard for cloud monitoring.
Q: What is the warranty period?
A: It comes with Cisco's Enhanced Limited Lifetime Warranty.
Precautions
- Ensure proper ventilation and operating temperature (0°C to 45°C)
- Use shielded cables for EMI-sensitive environments
- Verify power requirements for connected PoE devices
- Follow local electrical and safety regulations during installation
