Original New Cisco C9200L-24t-4G-E 9200 Series 24-Port 10/100/1000 + 4X1g SFP Network Switch
Product Details:
| Brand Name: | Cisco |
| Model Number: | C9200L-24T-4G-E |
| Document: | nb-06-cat9200-ser-data-shee...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | C9200L-24T-4G-E | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | 24 | Function: | Lacp, Poe, Qos, Snmp, Stackable, Vlan Support |
| Technology: | Ethernet Switch | Forwarding Rate With Stacking: | 136GB |
| Switch Capacity With Stacking: | 0°c To 40°c (32°f To 104°f) | Transport Package: | Packing |
| Specification: | 55X45X35 Cm | Trademark: | Cisco |
| Origin: | American | ||
| Highlight: | 10/100/1000 Network Switch,Cisco 9200 Series Switch,4X1g SFP Network Switch |
||
Product Description

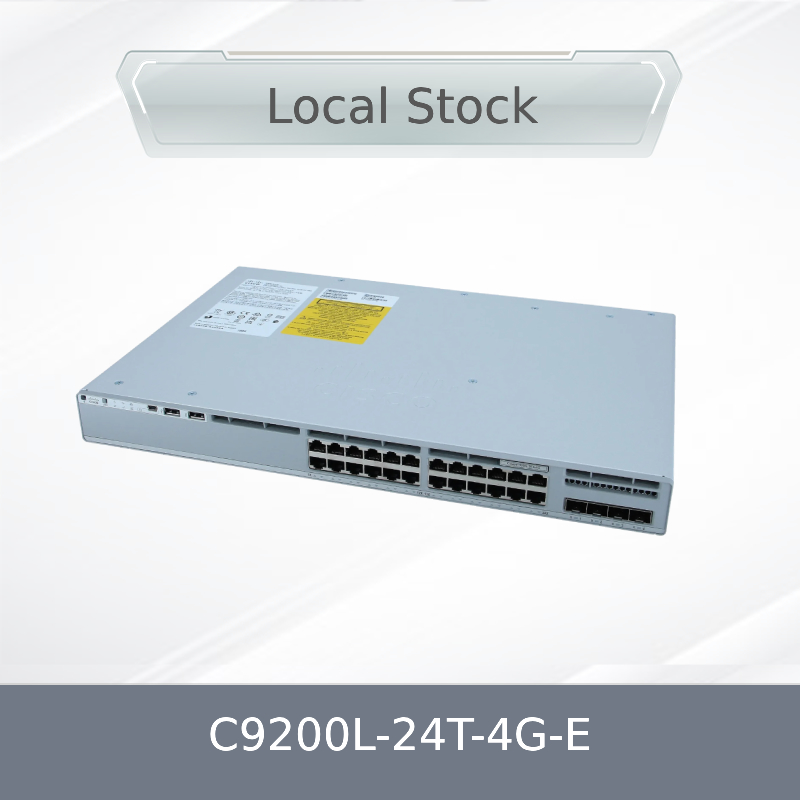

Cisco Catalyst 9200L-24T-4G-E: 24-Port Data Switch with 4x1G Uplinks
1. Product Overview
The Cisco Catalyst 9200L-24T-4G-E is a high-performance, fixed-configuration access switch designed for modern enterprise networks. Part of the renowned Catalyst 9200 Series, this model offers 24 data ports and four fixed 1G uplinks, delivering reliable connectivity and essential Layer 3 features. Ideal for small to medium-sized deployments, it combines energy efficiency, advanced security, and seamless manageability with support for Cisco DNA Essentials and Network Essentials licensing.
2. Key Characteristics
- 24 x 1G data ports + 4 x 1G fixed uplinks
- Network Essentials license with Layer 3 static routing and RIP
- ENERGY STAR® certified for reduced power consumption
- Fixed redundant fans for improved reliability
- Cisco IOS XE Software for automation and programmability
- Support for cloud management via Meraki dashboard
- StackWise-80 support (up to 80 Gbps stacking bandwidth)
3. Core Technologies & Standards
The Catalyst 9200L-24T-4G-E leverages industry-leading technologies including:
- Cisco IOS XE operating system with model-driven programmability
- IEEE 802.1Q VLAN, 802.1x, 802.3af/at PoE (on PoE models)
- Layer 3 routing: Static, RIP, OSPF (limited)
- MACsec encryption for enhanced security
- Flexible NetFlow for traffic visibility
- SNMPv3, NETCONF, RESTCONF for management
4. How It Works
The switch operates as an access layer device, connecting end-user devices and uplinking to distribution or core switches. It uses hardware-based forwarding with Cisco Express Forwarding architecture for high-performance packet processing. The built-in Cisco IOS XE OS supports automated provisioning, telemetry streaming, and centralized management via Cisco Catalyst Center or Meraki cloud.
5. Applications & Use Cases
- Enterprise branch office networks
- Campus access layer deployments
- Educational institutions and healthcare facilities
- Retail and hospitality environments
- IoT and smart building infrastructure
6. Specifications & Selection Guide
| Specification | Value |
|---|---|
| Ports | 24 x 1G data, 4 x 1G uplinks |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.67 Mpps |
| Power Supply | PWR-C5-125WAC (default) |
| Power Consumption (idle) | ~30W |
| Dimensions (HxWxD) | 1.73" x 17.5" x 12.9" |
| Weight | 9.59 lbs (4.35 kg) |
| MTBF | 531,030 hours |
7. Advantages & Selling Points
- ENERGY STAR certified for lower operational costs
- Fixed uplink design reduces complexity and cost
- Supported by Cisco DNA Software for simplified management
- Enhanced limited lifetime warranty with NBD replacement
- Compact form factor ideal for space-constrained environments
- Compatible with Cisco StackWise-80 for scalable deployments
8. Service & Support
We offer:
- Cisco Enhanced Limited Lifetime Hardware Warranty
- Next-business-day hardware replacement
- 90-day 8x5 Cisco TAC support
- 24/7 customer consultation and technical support
- Global shipping with real-time tracking
- Customized integration and configuration services
9. Frequently Asked Questions
Q: Does this switch support PoE?
A: No, the C9200L-24T-4G-E is a data-only switch. For PoE support, consider the C9200L-24P-4G-E.
Q: Can I stack this switch with other Catalyst 9200 models?
A: It supports stacking only with other C9200L models using StackWise-80.
Q: Is cloud management supported?
A: Yes, it can be managed via Cisco Meraki dashboard or Cisco Catalyst Center.
Q: What is the difference between Network Essentials and Advantage?
A: Essentials includes basic Layer 3 features; Advantage adds advanced routing, segmentation, and security.
10. Precautions & Compliance
- Operating temperature: -5°C to +45°C
- Complies with FCC Part 15, EN 55032, RoHS
- Use shielded cables for non-telecom environments
- Ensure proper ventilation and airflow
- Verify power compatibility before installation
