C9200-48t-E New Sealed Managed Gigabit Ethernet 48 Ports Gigabit Switch
Product Details:
| Brand Name: | Cisco |
| Model Number: | C9200-48T-E |
| Document: | nb-06-cat9200-ser-data-shee...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | C9200-48T-E | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≧48 | Function: | Lacp, Poe, Qos, Snmp, Stackable, Vlan Support |
| Technology: | Gigabit Ethernet | Power Supply: | Pwr-C6-1kwac |
| Transport Package: | Packing | Specification: | 4.4 X 44.5 X 35.0 Cm |
| Trademark: | Cisco | Origin: | American |
| Highlight: | New Sealed C9200-48t-E Switch,Managed C9200-48t-E Switch,48 Ports C9200-48t-E Switch |
||
Product Description

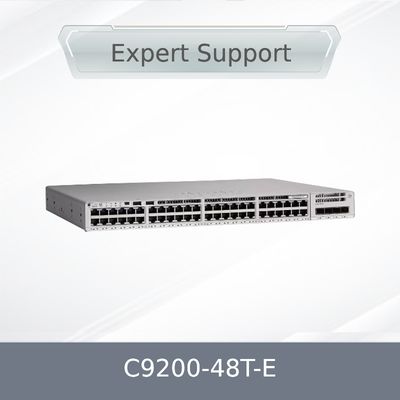

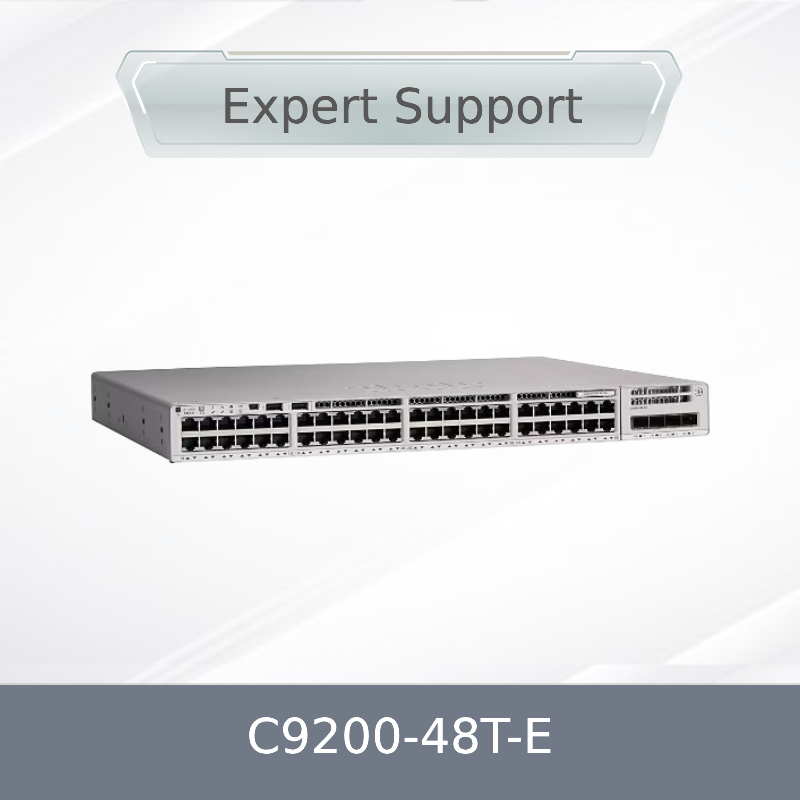

Cisco Catalyst 9200-48T-E: 48-Port Data Switch with Network Essentials
The Cisco Catalyst 9200-48T-E is a high-performance, scalable, and secure access layer switch designed for modern enterprise networks. Part of the Catalyst 9200 Series, this 48-port data switch delivers robust Layer 2 and Layer 3 features, advanced security, and seamless integration into intent-based networking environments. Ideal for mid-to-large-sized deployments, it offers reliability, flexibility, and ease of management—all backed by Cisco’s enhanced limited lifetime warranty.
Key Features
- 48 x 1G Ethernet data ports with modular uplink flexibility
- Network Essentials license with advanced Layer 2 and basic Layer 3 features
- Cisco IOS XE operating system for automation and programmability
- StackWise-160 support up to 160 Gbps stacking bandwidth
- Energy Efficient Ethernet (EEE) and low-power operation modes
- AES-128 MACsec encryption for secure data transmission
Technology & Standards
The Catalyst 9200 Series leverages Cisco’s UADP 2.0 Mini ASIC with integrated CPU for optimized performance and scalability. It supports a wide range of industry standards including:
- IEEE 802.1Q VLAN, 802.1s/w (MSTP/RSTP), 802.1x, 802.3af/at (PoE/PoE+)
- IPv4/IPv6 routing (static, RIP, OSPF, EIGRP stub)
- NETCONF/YANG, RESTCONF, SNMPv3, Syslog
- Flexible NetFlow (FNF) for advanced traffic visibility
How It Works
The switch operates as an access layer device, connecting end-user devices, IP phones, and wireless access points. It uses hardware-based forwarding to process traffic at wire speed, while Cisco IOS XE enables automated provisioning, real-time telemetry, and centralized management via Cisco Catalyst Center or Meraki Dashboard. Stacking capabilities allow multiple physical units to operate as a single logical switch.
Applications
- Enterprise campus and branch office networks
- LAN access and aggregation layers
- SD-Access fabric edge deployments
- IoT and converged wired/wireless environments
- Healthcare, education, and government networks
Specifications
| Attribute | Value |
|---|---|
| Ports | 48 x 10/100/1000BASE-T |
| Uplinks | Modular (sold separately) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| Power Supply | PWR-C6-125WAC (default) |
| Dimensions (HxWxD) | 1.73" x 17.5" x 15.4" |
| Weight | 11.02 lbs (5.0 kg) |
| MTBF | 571,440 hours |
Why Choose the C9200-48T-E?
- High port density with modular uplink options for future upgrades
- Energy Star certified models available for reduced power consumption
- Integrated security features including Trust Anchor and MACsec
- Simplified cloud management via Meraki or on-premises Catalyst Center
- Backward compatibility with existing Cisco infrastructure
Service & Support
We offer competitive pricing, fast delivery, and full technical support. All Cisco Catalyst 9200 Series switches come with an enhanced limited lifetime warranty, including next-business-day hardware replacement and 90 days of 8x5 TAC support. Our team provides pre-sales consultation, configuration assistance, and post-sales troubleshooting.
Frequently Asked Questions
Q: Does the C9200-48T-E support PoE?
A: No, the C9200-48T-E is a data-only switch. For PoE capabilities, consider the C9200-48P-E or C9200-48PL-E.
Q: Can I stack this switch with other Catalyst 9200 models?
A: Yes, it supports StackWise-160 with other C9200 models using the same license level.
Q: What uplink modules are compatible?
A: Options include 4x1G (C9200-NM-4G), 4x10G (C9200-NM-4X), 2x25G (C9200-NM-2Y), and 2x40G (C9200-NM-2Q).
Q: Is SD-Access supported?
A: Yes, with the Network Advantage license and Cisco DNA Center.
Important Notes
- Ensure proper ventilation and operating temperature (0°C to 45°C)
- Use shielded cables for EMI-sensitive environments
- Verify license compatibility before stacking or upgrading
- Consult compatibility matrices for transceivers and modules
