Nvidia Mfp7e20-Nxxx Optical Multimode Splitter Fiber Cable Mfp7e20-N020 Mmf, MPO12 APC to 2xmpo12 APC
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFP7E20-N020 |
| Document: | MFP7E20-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MFP7E20-N020 | Material Shape: | Round Wire |
|---|---|---|---|
| Allowed Tensile Strength: | 1000N<10000N | Certification: | RoHS, CE, ISO9001, VDE, CCC |
| Sheath Material: | PVC | Length: | 20m |
| Data Rate: | 400GB/S | Origin: | India / Israel / China |
| Highlight: | Mfp7e20-N020 Fiber Cable,2xmpo12 APC Fiber Cable |
||
Product Description

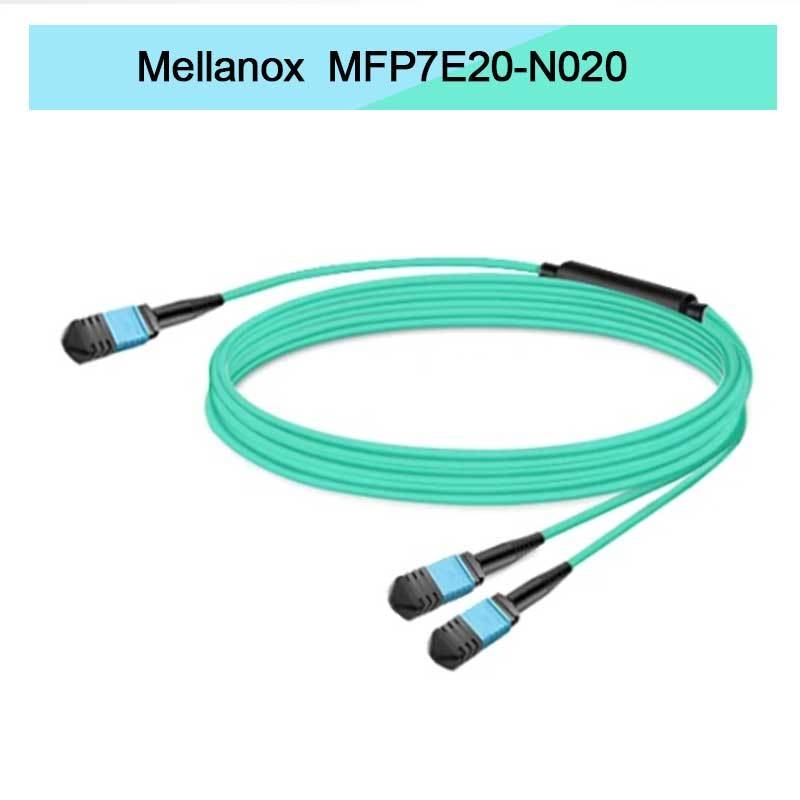

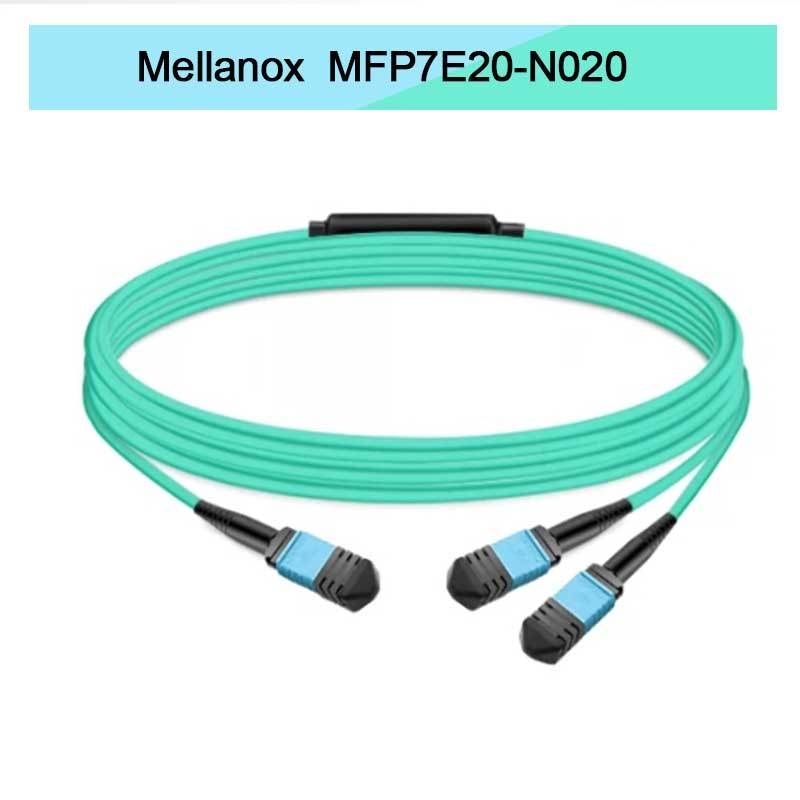

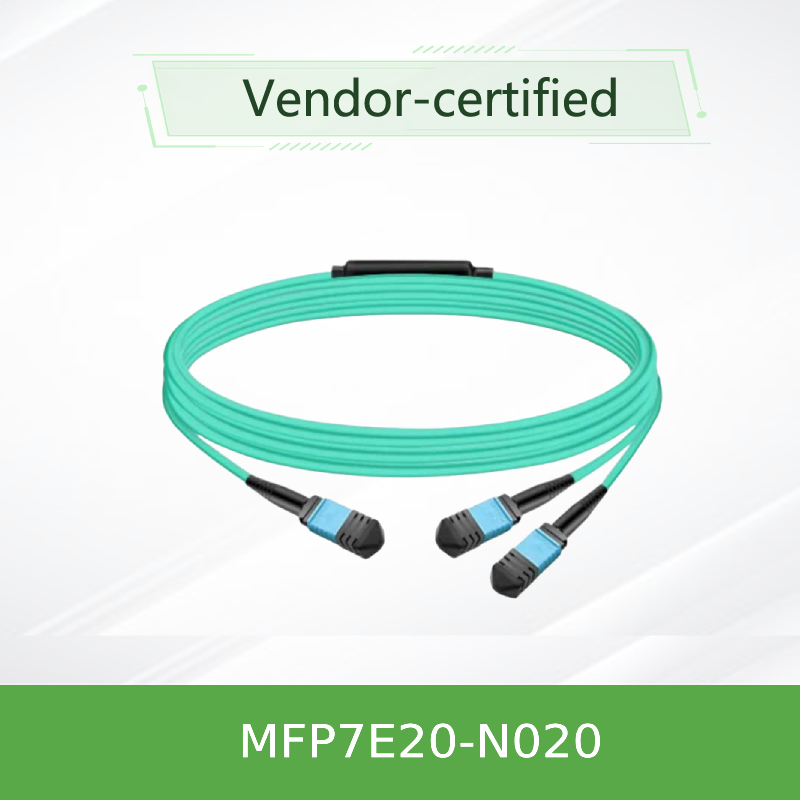

NVIDIA MFP7E20-N020 Optical Fiber Cable
Experience superior performance and reliability with the NVIDIA MFP7E20-N020 passive fiber cable. Designed for high-speed data centers, this multimode splitter fiber cable ensures optimal signal integrity and seamless integration with leading networking hardware. With a length of 20 meters, it supports 400G/200G rates and is engineered for durability and ease of installation.
MFP7E20-N020 Key Features
- Flexible round outer jacket for easier installation
- Push-pull latching for quick release

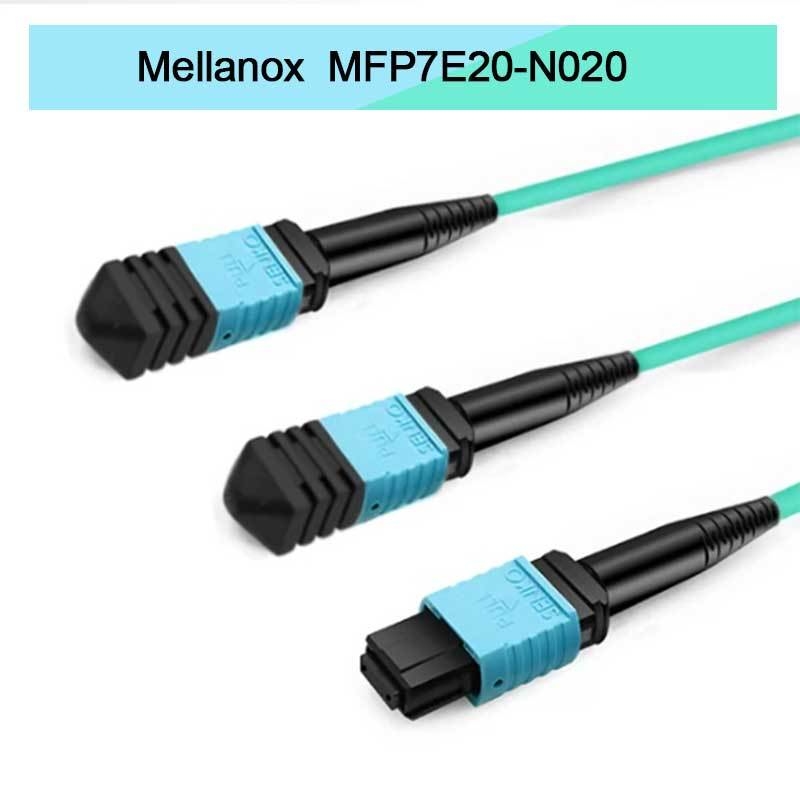

- Female-to-Female MPO-12/APC connectors
- 50/125 µm Multimode fibers with Aqua LSZH-OFNR jacket
- Supports InfiniBand, Ethernet, and NVLink protocols
Technology
This optical fiber cable utilizes MPO-12/APC connectors with an 8-degree polished angle to minimize back reflections and ensure high signal quality. It complies with IEC 61754-7 and ANSI/TIA/EIA 604-5-199 standards, and is Telcordia GR-1435 certified. The Type-B crossover design enables direct transceiver connectivity with precise lane alignment.
MFP7E20-N020 Working Principle

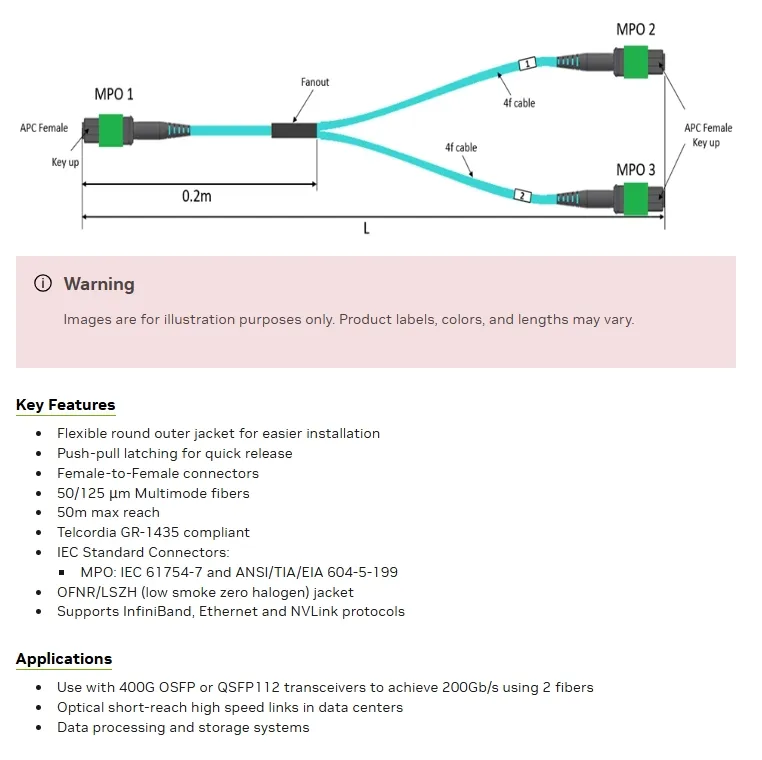

The cable features a 4-channel-to-two 2-channel splitter configuration. The 4-channel end connects to a twin-port OSFP transceiver, while the two 2-channel ends interface with single-port 400Gb/s OSFP or QSFP112 transceivers. The crossover fiber design ensures transmit and receive lanes are correctly aligned between devices, facilitating efficient data transmission with low insertion loss.
Applications
Ideal for high-performance computing environments, the MFP7E20-N020 passive fiber cable is used in:
- Data center short-reach high-speed links
- ConnectX-7 network adapters and BlueField-3 DPUs
- InfiniBand and Ethernet systems
- Storage and data processing servers
Specifications
| Parameter | Value |
|---|---|
| Product Type | Passive Fiber Cable |
| Model | MFP7E20-N020 |
| Length | 20 m |
| Fiber Type | Multimode OM4 |
| Connectors | MPO-12/APC Female to 2x MPO-12/APC Female |
| Data Rate | Up to 400Gb/s |
| Insertion Loss | ≤0.35 + 0.0004×L dB |
| Return Loss | ≥35 dB |
| Operating Temperature | 0°C to 70°C |
Advantages
- Superior signal integrity with angled polished connectors
- Wide compatibility with NVIDIA transceivers and adapters
- Robust construction with LSZH jacket for safety
- High durability and performance in demanding environments
Service & Support
We offer 24/7 customer consultation and technical support. Our professional team ensures timely delivery and integration assistance. All products come with a standard warranty and are backed by extensive industry experience.
FAQ
Q: What is the maximum reach of this cable?
A: The cable supports up to 50 meters with multimode fiber.
Q: Is this compatible with QSFP112 transceivers?
A: Yes, it supports both OSFP and QSFP112 transceivers.
Q: What does the APC connector provide?
A: The Angled Physical Contact reduces back reflections for better signal quality.
Precautions
- Do not mix MPO-12/APC with MPO-12/UPC connectors.
- Always clean connectors before installation to avoid contamination.
- Observe ESD precautions when handling transceivers.
- Avoid bending beyond the minimum radius of 30 mm.
