Nvidia Mellanox 100% Genuine Products Mfp7e20-N015 Passive Fiber Cable, Mmf, MPO12 APC to 2xmpo12 APC, 15m
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFP7E20-N015 |
| Document: | MFP7E20-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MFP7E20-N015 | Material Shape: | Round Wire |
|---|---|---|---|
| Allowed Tensile Strength: | 1000N<10000N | Certification: | RoHS, CE, ISO9001, VDE, CCC |
| Sheath Material: | PVC | Length: | 15m |
| Data Rate: | 400GB/S | Origin: | India / Israel / China |
| Highlight: | Mfp7e20-N015 Passive Fiber Cable |
||
Product Description

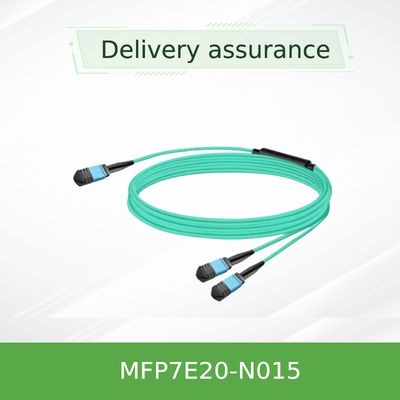

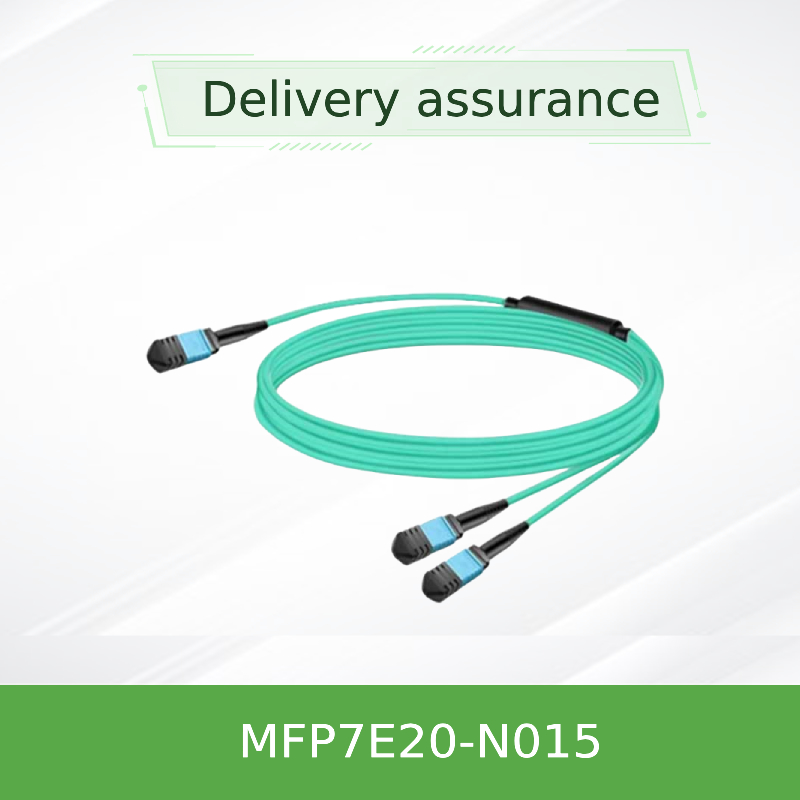

NVIDIA MFP7E20-N015 Optical Fiber Splitter Cable
The NVIDIA MFP7E20-N015 is a high-performance, multimode, 4-channel to two 2-channel passive fiber cable designed for next-generation data centers. It enables flexible and cost-effective connectivity between 800G/400G switches and 200G adapters or DPUs, delivering reliable signal integrity and easy installation.
MFP7E20-N015 Key Features
- Flexible round LSZH jacket for easy routing and fire safety
- Female-to-female MPO-12/APC connectors with push-pull latching
- Type-B crossover topology for direct transceiver interconnection
- Supports InfiniBand, Ethernet, and NVLink protocols
- Low insertion loss and high return loss performance
Technology & Standards
This Optical Fiber Cable complies with industry standards including IEC 61754-7, ANSI/TIA/EIA 604-5, and Telcordia GR-1435. It uses angled physical contact (APC) polishing to minimize back reflection and ensure optimal signal quality in high-speed environments.
How It Works
The cable splits one 4-channel MPO connector into two 2-channel MPO connectors. It uses 8 active fibers in a crossover (Type-B) configuration, ensuring transmit and receive channels are properly aligned between transceivers. The 8° APC polish reduces optical reflection, protecting signal integrity.
Applications
- Data center spine-leaf architectures
- High-performance computing (HPC) clusters
- Cloud infrastructure and storage networks
- AI and machine learning training networks
- ConnectX-7 adapters and BlueField-3 DPUs
MFP7E20-N015 Specifications
| Parameter | Value |
|---|---|
| Product Model | MFP7E20-N015 |
| Cable Type | Multimode OM4 |
| Length | 15 meters |
| Connectors | MPO-12/APC Female to 2x MPO-12/APC Female |
| Data Rate | Up to 400Gb/s per port |
| Jacket Color | Aqua (LSZH-OFNR) |
| Bend Radius | ≥ 30 mm |
Ordering Info
| Part Number | Description | Length |
|---|---|---|
| MFP7E20-N003 | MPO12 APC to 2x MPO12 APC | 3m |
| MFP7E20-N015 | MPO12 APC to 2x MPO12 APC | 15m |
| MFP7E20-N050 | MPO12 APC to 2x MPO12 APC | 50m |
Why Choose NVIDIA MFP7E20?
- Superior optical performance with low loss and high reliability
- Rigorous testing ensures out-of-the-box readiness
- Designed for compatibility with NVIDIA transceivers and systems
- LSZH jacket enhances safety in case of fire
Service & Support
We offer 24/7 technical consultation, global shipping, and professional integration support. All products come with a standard warranty and are tested before shipment.
FAQ
Q: What is the maximum reach of this cable?
A: Up to 50 meters with two patch panels.
Q: Can I use this with QSFP112 transceivers?
A: Yes, it supports both OSFP and QSFP112.
Q: Is this a crossover or straight cable?
A: It is a Type-B crossover cable.
Precautions
- Do not mix MPO-12/APC with MPO-12/UPC connectors
- Always clean connectors before installation
- Avoid bending below 30 mm radius
- Store and operate within specified temperature and humidity ranges
