Nvidia Mfp7e20-Nxxx Optical Multimode Splitter Fiber Cable Mfp7e20-N010 Mmf, MPO12 APC to 2xmpo12 APC
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFP7E20-N010 |
| Document: | MFP7E20-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MFP7E20-N010 | Material Shape: | Round Wire |
|---|---|---|---|
| Allowed Tensile Strength: | 1000N<10000N | Certification: | RoHS, CE, ISO9001, VDE, CCC |
| Sheath Material: | PVC | Length: | 10m |
| Data Rate: | 400GB/S | Origin: | India / Israel / China |
| Highlight: | MPO12 APC to 2xmpo12 APC,Optical Multimode Splitter Fiber Cable,Fiber Cable Mfp7e20-Nxxx |
||
Product Description

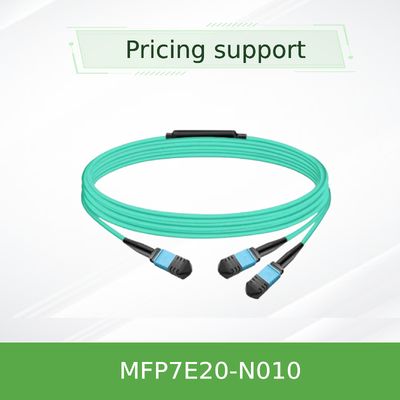

NVIDIA MFP7E20-N010 Optical Fiber Splitter Cable
The NVIDIA MFP7E20-N010 is a high-performance, multimode, passive optical fiber cable designed for next-generation data center interconnects. It features an MPO12 APC to 2xMPO12 APC splitter configuration, supporting 400G/NDR InfiniBand, Ethernet, and NVLink protocols. With a length of 10 meters, aqua LSZH jacket, and low insertion loss, this cable ensures reliable, high-speed connectivity for hyperscale and enterprise environments.
Key Features
- MPO12 APC to 2xMPO12 APC female connectors
- Supports 400G DR8/NDR and 200G per 2-fiber lane
- Low-loss, angled polished connectors (APC) for superior signal integrity
- LSZH (Low Smoke Zero Halogen) jacket for enhanced safety
- Compliant with IEC 61754-7 and Telcordia GR-1435 standards
Technology & Standards
This passive fiber cable utilizes MPO-12/APC angled polished connectors to minimize back reflection and maximize optical performance. It complies with industry standards including IEC 61754-7, ANSI/TIA/EIA 604-5, and is tested under Telcordia GR-1435. The cable supports InfiniBand NDR, Ethernet, and NVLink protocols.
Working Principle
The MFP7E20-N010 is a Type B crossover cable that splits one 4-channel MPO connector into two 2-channel MPO ends. It uses 8 active multimode OM4 fibers to facilitate bidirectional communication between twin-port OSFP transceivers and single-port OSFP/QSFP112 transceivers, ensuring precise lane alignment and signal integrity.
Applications
- Data center spine-leaf architectures
- High-performance computing (HPC) clusters
- AI and machine learning infrastructure
- Cloud and enterprise storage networks
- ConnectX-7 adapters and BlueField-3 DPU connections
Specifications
| Parameter | Value |
|---|---|
| Product Model | MFP7E20-N010 |
| Cable Type | Multimode OM4 |
| Length | 10 m |
| Connectors | MPO12 APC (F) to 2x MPO12 APC (F) |
| Insertion Loss | ≤ 0.39 dB |
| Return Loss | ≥ 35 dB |
| Jacket | Aqua, LSZH-OFNR |
| Protocols | InfiniBand NDR, Ethernet, NVLink |
Advantages
- Superior signal quality with angled APC connectors
- Flexible and durable round jacket for easy installation
- Wide compatibility with NVIDIA transceivers and adapters
- RoHS and CE compliant
- Rigorous factory testing ensures out-of-the-box reliability
Service & Support
We offer 24/7 technical consultation, global shipping, and onsite support options. All products come with a standard warranty and lifetime technical support. Custom labeling and bulk pricing available.
FAQ
Q: Can this cable be used with QSFP56 transceivers?
A: Yes, it is compatible with QSFP112, OSFP, and QSFP56 form factors supporting 200G/400G rates.
Q: What is the maximum reach?
A: Up to 50 meters with OM4 fiber, depending on link configuration.
Q: Is this a passive fiber cable?
A: Yes, it is a passive optical cable with no active components.
Precautions
- Do not mix MPO-12/APC with MPO-12/UPC connectors.
- Always clean connectors before installation.
- Avoid bending below 30 mm radius.
- Operate within 0°C to 70°C temperature range.
- Follow ESD precautions when handling transceivers.
