Mellanox Mfp7e10-N050, Mmf, MPO12 APC to MPO12 APC, 50m, Passive Fiber Cable
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFP7E10-N050(980-9I57Y-00N050) |
| Document: | MFP7E10-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MFP7E10-N050(980-9I57Y-00N050) | Material Shape: | Round Wire |
|---|---|---|---|
| Allowed Tensile Strength: | 1000N<10000N | Certification: | RoHS, CE, ISO9001, VDE, CCC |
| Sheath Material: | PVC | Length: | 50m |
| Data Rate: | 200GB/S | Origin: | India / Israel / China |
| Highlight: | mpo12 passive fiber cable,mellanox cable 50m,Passive Fiber Cable Mmf |
||
Product Description

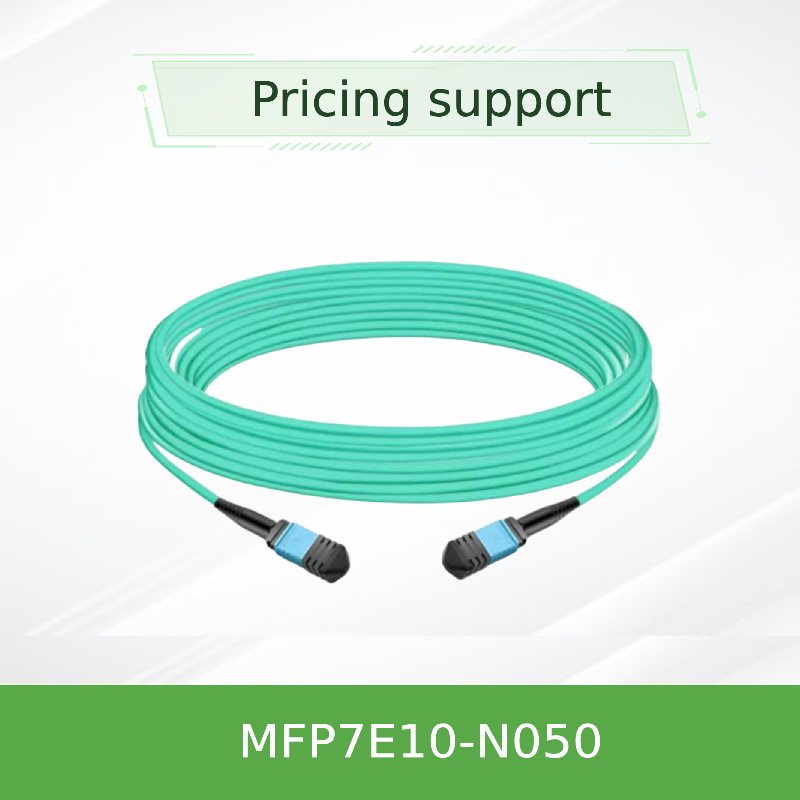

NVIDIA MFP7E10-N050 Multimode Optical Fiber Cable
The NVIDIA MFP7E10-N050 is a high-performance passive fiber cable designed for 400G InfiniBand and Ethernet data center interconnects. With MPO12/APC connectors and OM4 multimode fiber, it supports up to 50m reach, low insertion loss, and high reliability in demanding environments.
MFP7E10-N050 Key Features
- MPO12/APC to MPO12/APC connectors with 8° angled polish
- 50/125 µm OM4 multimode fiber with aqua LSZH jacket
- Supports 400G InfiniBand, Ethernet, and NVLink protocols
- Type-B crossover topology for direct transceiver connectivity
- Compliant with IEC 61754-7, GR-1435, and Telcordia standards
Technology & Standards
The MFP7E10 Optical Fiber Cable utilizes MPO12/APC connectors with angled physical contact (APC) to minimize back reflection and ensure signal integrity. It complies with international standards including IEC 61754-7, ANSI/TIA/EIA 604-5, and Telcordia GR-1435.
MFP7E10-N050 Working Principle
The cable uses a Type-B crossover scheme where transmit lanes from one end connect to receive lanes on the opposite end. This enables direct connection between twin-port OSFP transceivers without additional hardware.
Applications
- Data center spine-leaf architectures
- High-performance computing (HPC) clusters
- Cloud infrastructure and storage networks
- AI and machine learning workloads
Specifications
| Parameter | Value |
|---|---|
| Product Model | MFP7E10-N050 (980-9I57Y-00N050) |
| Fiber Type | Multimode OM4 |
| Connectors | MPO12/APC Female to MPO12/APC Female |
| Length | 50 meters |
| Insertion Loss | ≤ 0.35 + 0.0004 × L (dB) |
| Return Loss | ≥ 35 dB |
| Operating Temperature | 0°C to 70°C |
| Jacket Material | LSZH-OFNR (Aqua) |
Advantages
- Low latency and high bandwidth for 400G+ networks
- Superior signal integrity with APC polish
- Wide compatibility with NVIDIA Mellanox switches and adapters
- Robust construction with LSZH jacket for safety
Service & Support
We offer 24/7 technical support, worldwide shipping, and a 1-year warranty. Custom length and bulk orders are available.
FAQ
Q: What is the maximum reach of this cable?
A: Up to 50 meters with OM4 multimode fiber.
Q: Is this compatible with QSFP112 transceivers?
A: Yes, via appropriate adapters.
Q: Can I use this with non-NVIDIA equipment?
A: It is optimized for NVIDIA Mellanox systems but may work with other MPO12/APC-compatible devices.
Precautions
- Do not mix with MPO12/UPC connectors.
- Always clean connectors before installation.
- Avoid bending below 30mm radius.
- Store in dry, cool environments.
