Nvidia Mfp7e10-Nxxx Optical Multimode Fiber Cable Mfp7e10-N030 (980-9I557-00N030) Mmf, MPO12 APC to MPO12 APC, 30m
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFP7E10-N030(980-9I557-00N030) |
| Document: | MFP7E10-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MFP7E10-N030(980-9I557-00N030) | Material Shape: | Round Wire |
|---|---|---|---|
| Allowed Tensile Strength: | 1000N<10000N | Certification: | RoHS, CE, ISO9001, VDE, CCC |
| Sheath Material: | PVC | Length: | 30m |
| Data Rate: | 200GB/S | Origin: | India / Israel / China |
| Highlight: | Nvidia Optical MMF Fiber Cable,MPO12 APC MMF Fiber Cable,MPO12 APC Optical Fiber Cable |
||
Product Description

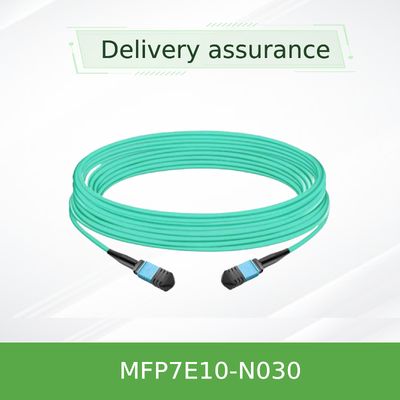

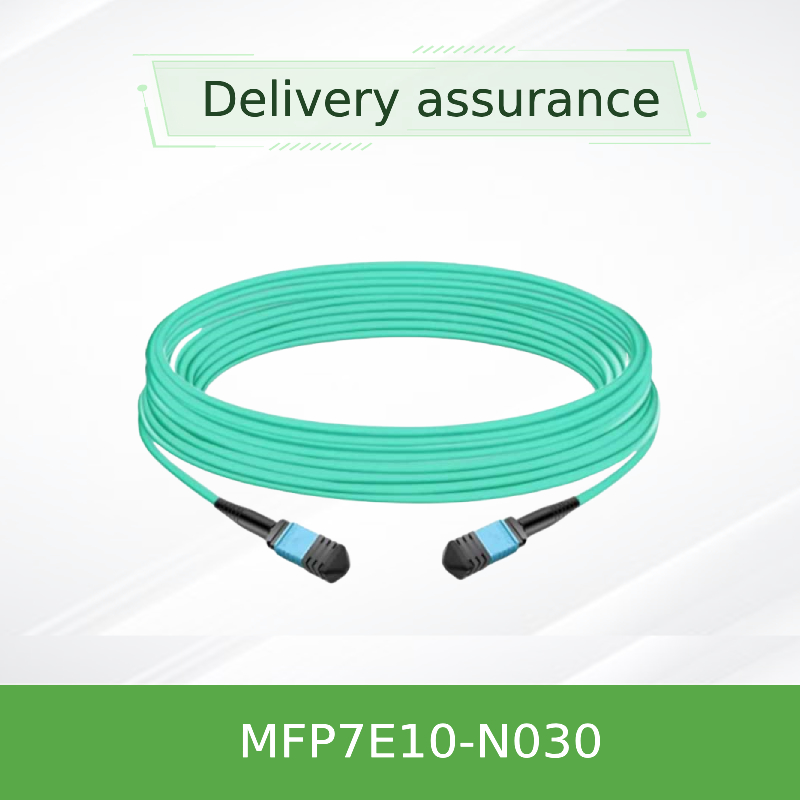

NVIDIA MFP7E10-N030 Multimode Optical Fiber Cable
The NVIDIA MFP7E10-N030 is a high-performance passive fiber cable designed for 400G/NDR InfiniBand and Ethernet interconnects. Featuring MPO-12/APC connectors and a Type-B crossover design, this optical fiber cable ensures reliable, low-loss connectivity between switches, adapters, and DPUs in high-density data centers.
MFP7E10-N030 Key Features:
- MPO-12/APC to MPO-12/APC, Female-to-Female, 8-fiber multimode
- Type-B crossover topology for direct transceiver alignment
- Low insertion loss: ≤0.35 + 0.0004×L dB
- LSZH (Low Smoke Zero Halogen) jacket for enhanced safety
- Supports InfiniBand NDR, Ethernet, and NVLink protocols
MFP7E10-N030 Technology & Standards
This passive fiber cable complies with IEC 61754-7 and ANSI/TIA/EIA 604-5-199 standards. It uses Angled Physical Contact (APC) polish to minimize back reflection and ensure signal integrity. The cable is designed for use with NVIDIA Mellanox® transceivers and supports multimode OM4 fibers for reaches up to 50 meters.
Working Principle
The MFP7E10-Nxxx cable uses a Type-B crossover scheme where transmit lanes from one end connect to receive lanes on the opposite end. Specifically, fiber 1 from MPO1 connects to fiber 12 on MPO2, ensuring proper optical lane alignment between twin-port OSFP transceivers and compatible devices.
Applications
- Data center spine-leaf architectures
- High-performance computing (HPC) clusters
- AI and machine learning infrastructure
- Storage area networks (SAN) and NVMe over Fabrics (NVMe-oF)
- Cloud and enterprise data centers
Specifications & Ordering Info
| Parameter | Value |
|---|---|
| Part Number | MFP7E10-N030 (980-9I557-00N030) |
| Cable Type | Multimode, OM4 |
| Length | 30 meters |
| Connectors | MPO-12/APC (Female) |
| Fibers | 8 (4 Tx/Rx pairs) |
| Jacket | Aqua, LSZH-OFNR |
| Max Reach | 50m |
| Protocols | InfiniBand NDR, 400G Ethernet, NVLink |
Advantages
- Superior signal integrity with APC polish and low back reflection
- Designed for NVIDIA® ConnectX-7 and BlueField-3 compatibility
- Rigorous testing per Telcordia GR-1435 ensures reliability
- Flexible and durable round jacket for easy installation
Service & Support
We provide 24/7 technical support, worldwide shipping, and flexible OEM/ODM services. All products come with a standard warranty and are tested before shipment.
FAQ
Q: Is this cable compatible with MPO-12/UPC connectors?
A: No. MPO-12/APC and MPO-12/UPC are not compatible due to different polish angles.
Q: What is the maximum supported distance?
A: Up to 50 meters with multimode OM4 fiber.
Q: Can I use this cable for switch-to-adapter connections?
A: Yes, it is designed for both switch-to-switch and switch-to-adapter links.
MFP7E10-N030 Precautions
- Always use optical cleaning tools before connection.
- Do not mix fiber types within the same link.
- Avoid bending below 30 mm radius.
- Store and operate within 0°C to 70°C temperature range.
