Nvidia Mfp7e10-Nxxx Optical Multimode Fiber Cable Mfp7e10-N020 (980-9I57Z-000020) Mmf, MPO12 APC to MPO12 APC, 20m
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFP7E10-N020(980-9I57Z-000020) |
| Document: | MFP7E10-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MFP7E10-N020(980-9I57Z-000020) | Material Shape: | Round Wire |
|---|---|---|---|
| Allowed Tensile Strength: | 1000N<10000N | Certification: | RoHS, CE, ISO9001, VDE, CCC |
| Sheath Material: | PVC | Length: | 20m |
| Data Rate: | 200GB/S | Origin: | India / Israel / China |
| Highlight: | Optical Multimode Fiber Cable |
||
Product Description

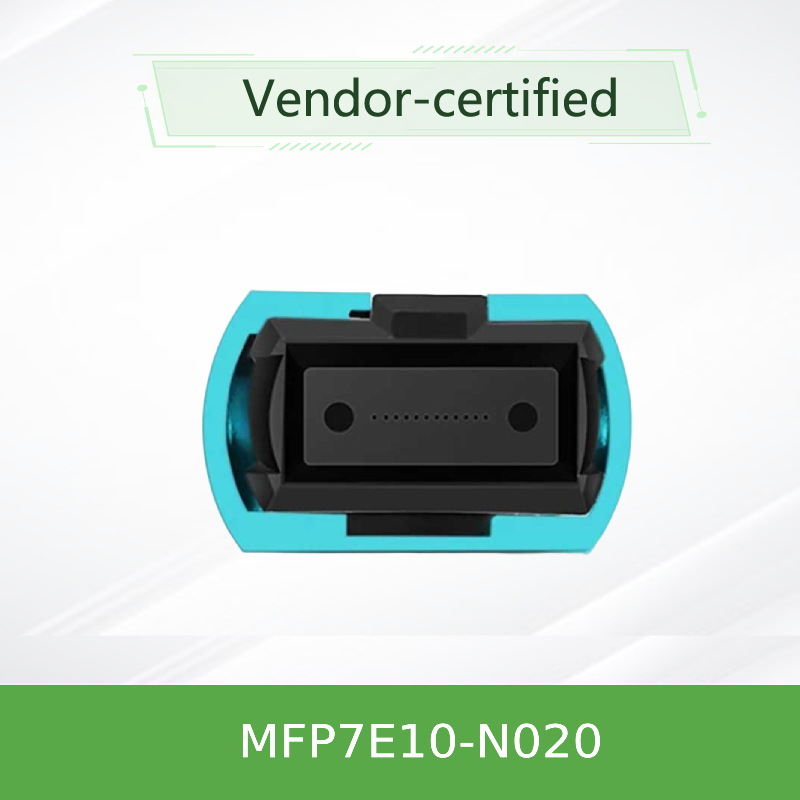

NVIDIA MFP7E10-N020 Optical Fiber Cable
1. Product Overview
The NVIDIA MFP7E10-N020 is a high-performance passive optical fiber cable designed for reliable, high-speed interconnects in modern data centers. This 20-meter multimode cable features MPO-12/APC connectors on both ends and is engineered to support InfiniBand NDR, Ethernet, and NVLink protocols. It ensures low insertion loss and high return loss for superior signal integrity.
2. Key Characteristics
- MPO-12/APC female connectors with angled polish for minimal back reflection
- Type-B crossover fiber mapping for direct transceiver-to-transceiver connection
- Low-smoke zero-halogen (LSZH) jacket for enhanced safety
- Supports up to 400G/800G data rates
- Compliant with IEC 61754-7 and Telcordia GR-1435 standards
3. Technology & Standards
The MFP7E10 optical fiber cable utilizes industry-standard 50/125 µm OM4 multimode fibers and MPO-12/APC connectors compliant with IEC 61754-7. It is designed for use with NVIDIA ConnectX-7 adapters, BlueField-3 DPUs, and compatible OSFP/QSFP112 transceivers.
4. Working Principle
This passive fiber cable uses a Type-B crossover configuration. Fibers from pins 1–4 on one end connect to pins 9–12 on the opposite end, ensuring proper Tx/Rx alignment between transceivers. The APC polish minimizes optical back reflection, preserving signal quality.
5. Applications
- Data center spine-leaf interconnects
- High-performance computing (HPC) clusters
- AI and machine learning infrastructure
- Storage area networks (SAN)
- Cloud infrastructure links
6. Specifications & Selection
| Parameter | Value |
|---|---|
| Model | MFP7E10-N020 |
| Length | 20 m |
| Fiber Type | OM4 Multimode |
| Connectors | MPO-12/APC (Female) |
| Insertion Loss | ≤ 0.358 dB |
| Return Loss | ≥ 35 dB |
| Jacket | Aqua, LSZH-OFNR |
7. Advantages
- Superior signal integrity with APC polished connectors
- Wide compatibility with NVIDIA networking gear
- Robust and flexible design for easy installation
- Compliant with international safety and performance standards
8. Service & Support
We offer 24/7 technical support, worldwide shipping, and a full warranty on all products. Our team provides integration guidance and custom configuration support upon request.
9. FAQ
Q: Can I use this cable with non-NVIDIA transceivers?
A: Yes, if they support MPO-12/APC connectors and multimode fiber.
Q: What is the maximum supported distance?
A: Up to 50 meters with OM4 fiber under specified conditions.
Q: Is cleaning required before use?
A: Yes, always clean connectors with an approved optical cleaner before mating.
10. Precautions
- Do not mix with MPO-12/UPC connectors—fiber polish is incompatible.
- Avoid bending below 30 mm radius to prevent fiber damage.
- Store and operate within specified temperature and humidity ranges.
- Follow ESD precautions when handling connected transceivers.
