MFP7E10-N010 Mellanox AOC Passive Fiber Cable MMF MPO12 APC To MPO12 APC 10m
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFP7E10-N010(980-9I57X-00N010) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Payment Terms: | T/T, Western Union, MoneyGram Xtransfer |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Passive Fiber Cable | Cable Length: | 10 Meters |
| Model: | MFP7E10-N010(980-9I57X-00N010) | Name: | Mellanox AOC MFP7E10-N010 Passive Fiber Cable MMF MPO12 APC To MPO12 APC 10m |
| Keyword: | Mellanox Cable | ||
| Highlight: | MFP7E10-N010 Mellanox AOC,Mellanox AOC 10 m |
||
Product Description

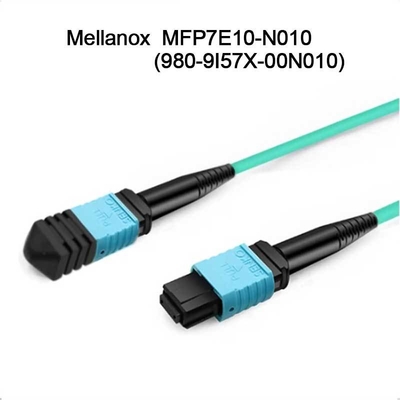

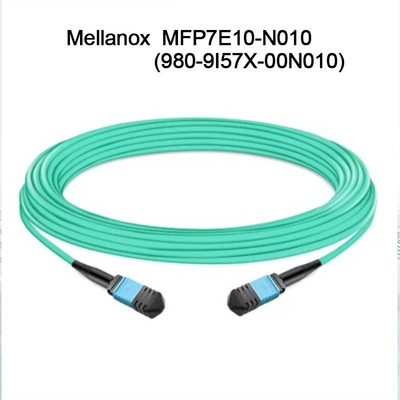

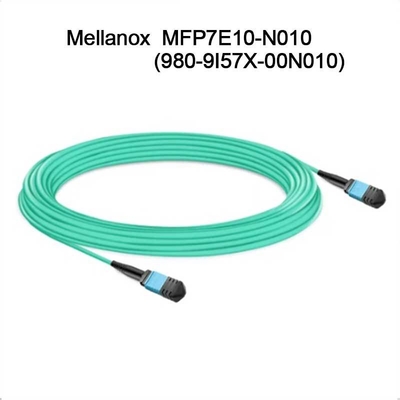

Mellanox AOC MFP7E10-N010 Passive Fiber Cable MMF MPO12 APC to MPO12 APC 10m
MFP7E10-N010 mellanox AOC cable Product Description
The Multiple Push On, 12 fiber, Angled Polished Connectors (MPO-12/APC) uses 8 active fibers to transmit light, and 4 inactive fibers as strength members. The APC end has a 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.
MFP7E10-N010 Twin-port OSFP 800Gb/s transceivers support two 4-channel fibers which are linked to other twin-port OSFP, single port OSFP or QSFP112 400Gb/s transceivers. The fibers are “crossover”, Type-B cables that enable directly attaching two transceivers together and aligning the transmit laser fiber on pin 1 to “crosses over” and align with pin 12 of the opposite fiber end transceiver photodetector.
The MFP7E10-N010 Fiber Cable is intended for interconnection of 2 switch together or a switch to 2 network adapters. The cable mates with pluggable optical 400GbE/NDR transceivers such as Nvidia’s MMA4Z00-NS twin port OSFP DR8 transceiver for InfiniBand and Ethernet systems in the switch end and MMA4Z00-NS400 (OSFP) or MMA1Z00-NS400 (QSFP112) in ConnectX-7 network adapters and BlueField-3 DPUs.
MFP7E10-N010 mellanox AOC cable parameter form
|
Parameter |
Note |
Value |
Units |
|
Tolerance on length |
Length < 5 m Length ≥ 5 m |
+0.1/-0 +2% x L/-0 |
m m |
|
Number of Fibers |
|
8 |
|
|
Cable diameter |
|
3 ± 0.2 |
mm |
|
Minimum bending radius |
Anywhere on the cable |
30 |
mm |
|
Cable Jacket |
|
Aqua, LSZH-OFNR |
|
|
Fiber |
Length ≤ 30 m Length > 30 m |
Multimode OM3 |
m |
|
Topology |
Crossed |
Type B |
|
|
Connectors and connector end face |
|
APC, female |
|
|
Insertion Loss, connector end face, IL |
L=length {m} |
≤0.35+0.0004 x L |
dB |
MFP7E10-N010 Technical Information
Cable Type: Fiber Optic
Fiber Optic Mode: Multi-mode
Cable Length: 32.81 ft
Connector Type on First End: MPO-12/APC – Network
Connector Type on Second End: MPO-12/APC – Network
Features: Passive
Device Supported: Network Device
