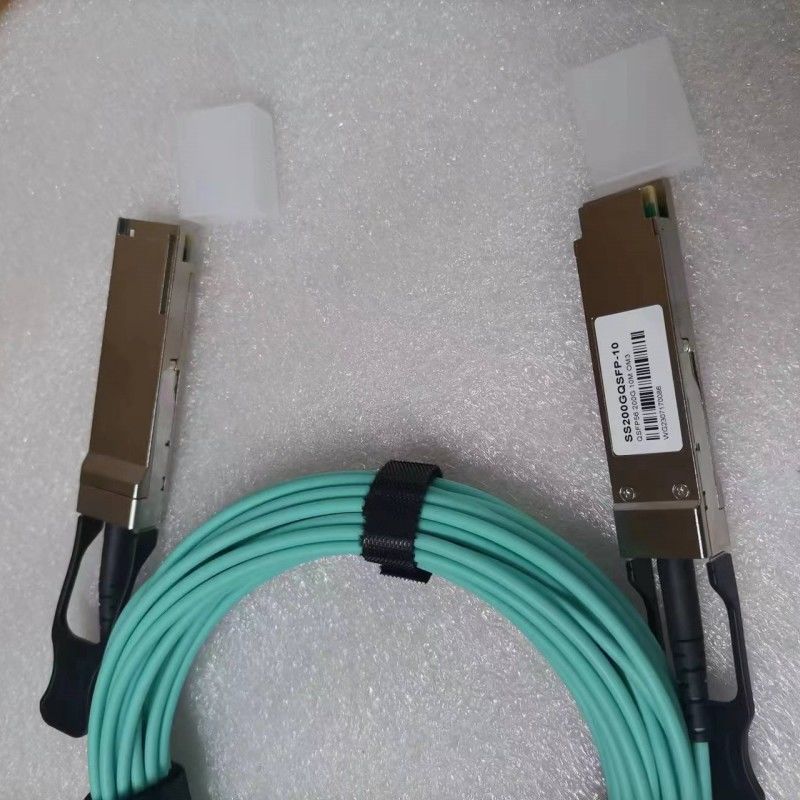

MFS1S00-H030V Mellanox Infiniband Cable QSFP56 To QSFP56 30m
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H030V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |

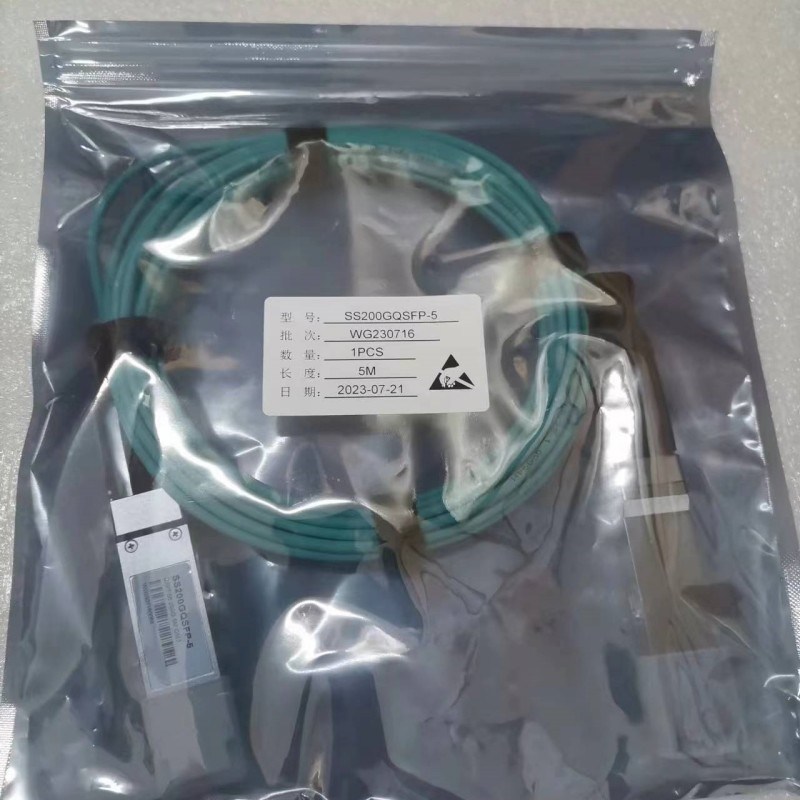

| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand AOC Cable |
| Type: | Mellanox AOC Cable | Cable Length: | 30 Meters AOC Cable |
| Model: | MFS1S00-H030V | Name: | Mellanox AOC MFS1S00-H030V InfiniBand Cable QSFP56 To QSFP56 30m Active Optical Cable (AOC) |
| Ketword: | Mellanox AOC CABLE | ||
| Highlight: | MFS1S00-H030V Mellanox Infiniband Cable,QSFP56 To QSFP56 Mellanox Infiniband Cable,30m Qsfp Infiniband |
||
Product Description
MFS1S00-H030V 200Gbps QSFP56 Active Optical Cable - High-Speed Data Center Solution
Product Summary
The NVIDIA MFS1S00-H030V represents a cutting-edge 200Gb/s optical fiber cable solution engineered for modern data-intensive environments. This QSFP56 form factor active optical cable delivers exceptional bandwidth through four 50Gbps PAM4 channels over multi-mode fiber, providing up to 30 meters of reach with superior signal integrity. Designed for reliability and efficiency, this high-performance interconnect solution is ideal for enterprises requiring robust, high-speed data transfer capabilities.
Distinguishing Characteristics
- ') no-repeat left center;">200Gb/s bandwidth (4×50G PAM4)
- ') no-repeat left center;">30-meter operational distance
- ') no-repeat left center;">Hot-pluggable QSFP56 interface
- ') no-repeat left center;">5.0W typical power consumption
- ') no-repeat left center;">Digital Diagnostic Monitoring
- ') no-repeat left center;">InfiniBand HDR and 200GbE compliant
- ') no-repeat left center;">RoHS compliant construction
- ') no-repeat left center;">Enhanced ESD protection
Technical Specifications
| Parameter | Value |
|---|---|
| Data Rate | 200 Gb/s (4×53.125 Gbd PAM4) |
| Cable Type | Active Optical Cable (AOC) |
| Fiber Mode | Multi-Mode Fiber (MMF) |
| Maximum Distance | 30 meters |
| Connector Type | QSFP56 |
| Power Consumption | 5.0W (typical per end) |
| Operating Voltage | 3.3V ±5% |
| Temperature Range | 0°C to 70°C (operating) |
| Protocol Support | InfiniBand HDR, 200Gb Ethernet |
Implementation Scenarios
This advanced optical fiber cable is specifically designed for deployment in:
- Data Centers
High-density server interconnects and switch-to-switch links - HPC Environments
High-performance computing clusters and research facilities - AI Infrastructure
Machine learning and artificial intelligence training systems - Cloud Services
Large-scale cloud infrastructure and storage area networks
Performance Advantages
Superior Bandwidth Efficiency
This high-performance optical fiber cable delivers 200Gb/s throughput with PAM4 modulation, effectively doubling the data rate compared to traditional NRZ signaling while maintaining signal integrity over extended distances.
Enhanced Reliability
Built-in digital diagnostics monitor real-time parameters including temperature, voltage, optical power, and bias current, enabling proactive maintenance and reducing unexpected downtime.
Power Optimization
With typical power consumption of only 5.0W per end, this solution provides significant energy savings compared to alternative interconnects, reducing operational costs in large-scale deployments.
Frequently Asked Questions
What makes this active optical cable different from direct attach copper cables?
Unlike passive copper solutions, this optical fiber cable incorporates active components that convert electrical signals to optical signals, enabling longer reach (up to 100m), reduced weight, and immunity to electromagnetic interference while maintaining signal integrity.
Is this cable compatible with existing 100GbE infrastructure?
Yes, the MFS1S00-H030V supports backward compatibility with 100GbE systems through rate selection features, providing investment protection and flexibility in mixed-speed environments.
What diagnostic capabilities are available?
This cable provides comprehensive digital diagnostic monitoring (DDM) with real-time reporting of temperature, voltage, TX bias current, TX output power, and RX received power for each lane, enabling proactive network management.
