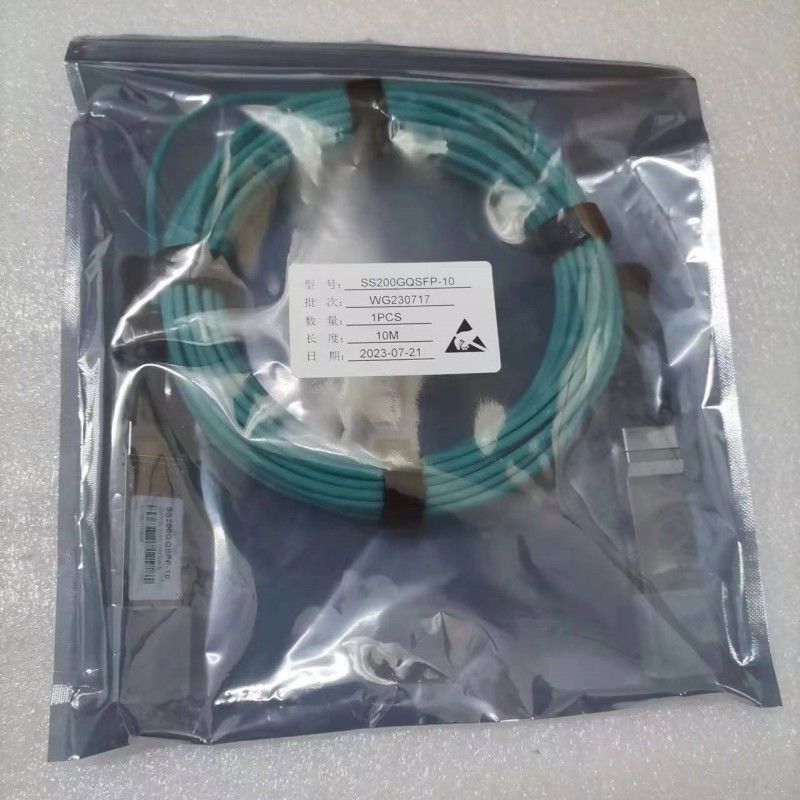

Infiniband MFS1S00-H010V 10m Sfp+ Cable In Stock
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H010V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 10 Meters |
| Model: | MFS1S00-H010V | Name: | Mellanox AOC MFS1S00-H010V AOC Cable IB HDR Up To 200Gb/s QSFP56 10m |
| Keyword: | Mellanox Cable | ||
| Highlight: | infiniband 10m Sfp+ Cable,MFS1S00-H010V 10m Sfp+ Cable,MFS1S00-H010V Qsfp Infiniband |
||
Product Description

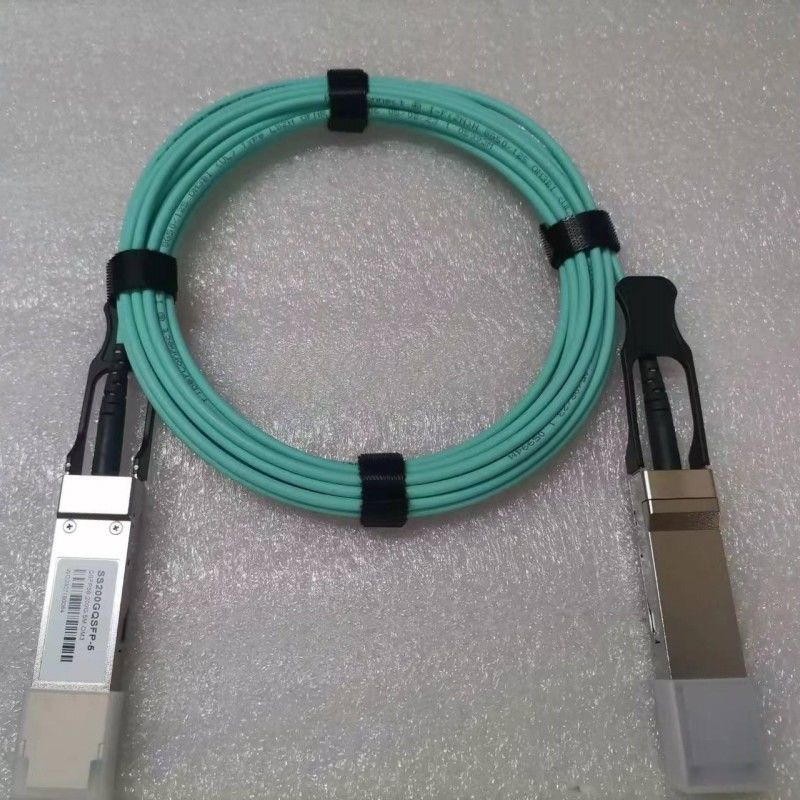

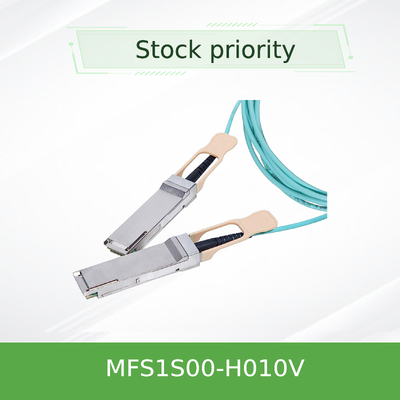

MFS1S00-H010V 200Gb/s QSFP56 Active Optical Cable (AOC)
1. Product Overview
The NVIDIA® MFS1S00-H010V is a high-performance 200Gb/s QSFP56 Active Optical Cable (AOC) designed for data center and high-performance computing applications. It supports 200G InfiniBand HDR and 200 Gigabit Ethernet, delivering high bandwidth, low latency, and extended reach up to 100 meters. This optical fiber cable is hot-pluggable, RoHS compliant, and engineered for reliability and ease of deployment.
2. Key Characteristics
- Supports 200Gb/s InfiniBand HDR and 200GbE
- 4x 50Gb/s PAM4 modulation per lane
- Up to 100m reach over multi-mode fiber (MMF)
- Low power consumption: 5.0W typical per end
- Hot-pluggable QSFP56 form factor
- SFF-8636 compliant I²C management interface
- Digital Diagnostic Monitoring (DDM) support
3. Technology & Standards
The MFS1S00-H010V complies with industry standards including SFF-8665 (QSFP56), SFF-8636 (management), and InfiniBand HDR. It uses VCSEL-based optical technology and supports PAM4 modulation for high-speed data transmission. This passive fiber cable alternative offers active signal integrity with built-in retiming.
4. Working Principle
The AOC converts electrical signals into optical signals via integrated VCSEL transmitters. Signals are transmitted over multi-mode fiber and converted back to electrical signals at the receiving end. Each lane operates at 50Gb/s using PAM4 encoding, ensuring high data integrity and low bit error rates.
5. Applications
- 200G InfiniBand HDR clusters
- High-performance computing (HPC) networks
- Data center spine-leaf architectures
- Cloud infrastructure interconnects
- AI and machine learning workloads
6. Specifications & Selection Guide
| Parameter | Value |
|---|---|
| Data Rate | 200 Gb/s |
| Interface | QSFP56 |
| Cable Type | Active Optical Cable (AOC) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Max Length | 100m |
| Power Consumption | 5.0W (typical) |
| Operating Temperature | 0°C to 70°C |
7. Advantages
- Higher bandwidth and longer reach than passive copper cables
- Lower latency and power consumption compared to alternative solutions
- Hot-pluggable design for easy installation and maintenance
- Robust construction with ESD protection and diagnostic capabilities
8. Service & Support
We offer comprehensive technical support, 24/7 customer service, and worldwide shipping. All products come with a manufacturer’s warranty and are tested for compatibility and performance.
9. Frequently Asked Questions (FAQ)
Q: What is the maximum length of this AOC?
A: Up to 100 meters.
Q: Is this cable compatible with 200GbE switches?
A: Yes, it supports both InfiniBand HDR and 200GbE.
Q: Does it require external power?
A: No, it is powered through the QSFP56 port.
10. Precautions
- Avoid bending the cable beyond a 30mm radius.
- Use ESD precautions during handling and installation.
- Ensure compatible QSFP56 ports on host devices.
- Do not expose to temperatures beyond -40°C to 85°C.
