MCP7H50-H002R26 Infiniband Cable 200Gb/s to 2x100Gb/s 2.0m 26AWG
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCP7H50-H002R26 |
| Document: | MCP7H50-H002R26.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 2 Meters |
| Name: | Mellanox DAC Cable MCP7H50-H002R26 200Gb/s To 2x100Gb/s 2.0m 26AWG Infiniband Network Cable | Keyword: | Mellanox DAC Cable |
| Highlight: | MCP7H50-H002R26 Infiniband Cable,2.0m Infiniband Cable,26AWG Mellanox Infiniband Cables |
||
Product Description

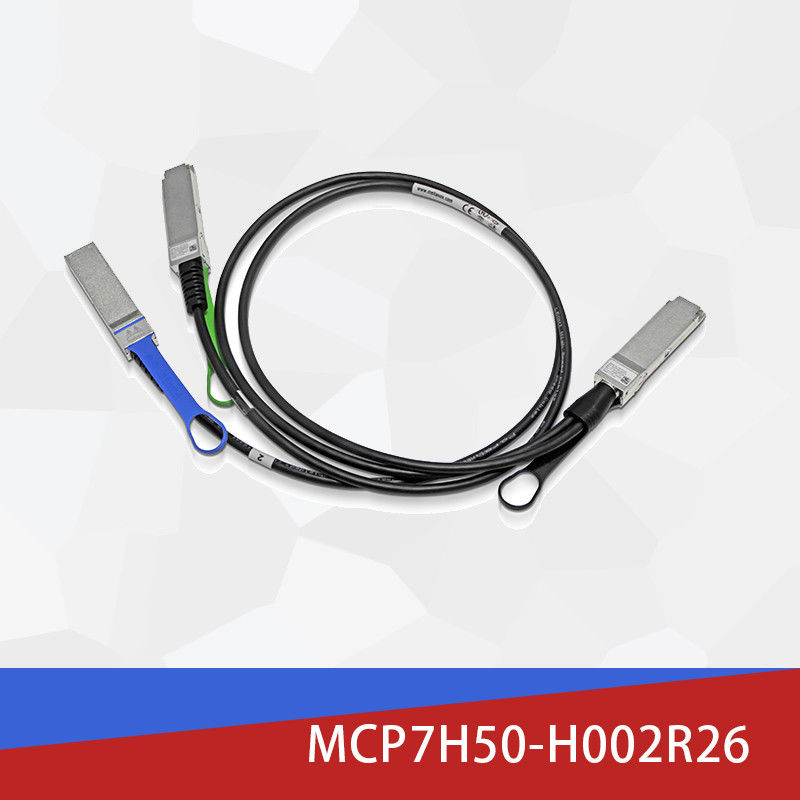

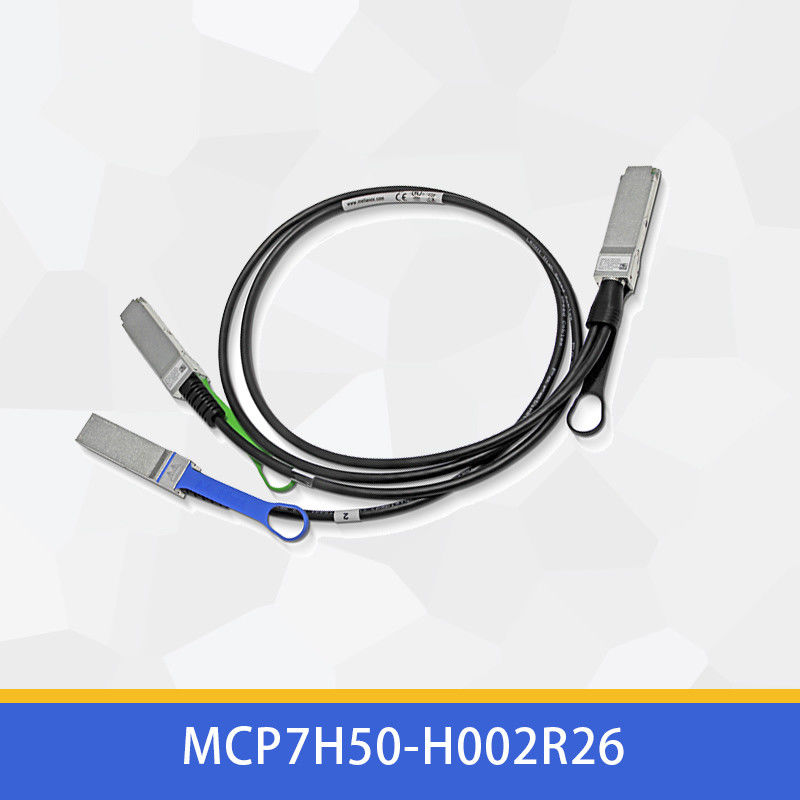

Mellanox MCP7H50-H002R26: Advanced 200G HDR to Dual 100G HDR100 Splitter Solution
Key Performance Advantages
Bandwidth Efficiency
Split 200G HDR into two independent 100G HDR100 channels with zero active power consumption
Superior Signal Integrity
Advanced PAM4 modulation ensures exceptional data transmission quality with BER better than 1E-15
Eco-Friendly Design
LSZH (Low Smoke Zero Halogen) jacket and halogen-free construction for enhanced safety
Technical Overview
The Mellanox MCP7H50-H002R26 represents a sophisticated interconnection solution that serves as a high-performance alternative to traditional passive fiber cable systems. This Direct Attach Copper (DAC) splitter efficiently converts a single 200Gb/s InfiniBand HDR port into two separate 100Gb/s HDR100 connections, providing data centers with an optimal balance of performance, power efficiency, and cost-effectiveness for high-density networking environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MCP7H50-H002R26 |
| Data Rate Configuration | 200G HDR to 2×100G HDR100 |
| Interconnect Type | Direct Attach Copper (DAC) |
| Cable Length | 2 meters (±0.05m tolerance) |
| Connector Interface | QSFP56 to 2×QSFP56 |
| Wire Gauge | 26 AWG |
| Power Consumption | <0.1W (passive operation) |
| Operating Temperature | 0°C to 70°C |
| Compliance Standards | IBTA HDR, SFF-8665, SFF-8636, RoHS |
| Characteristic Impedance | 100Ω (90-110Ω range) |
Advanced Technology Implementation
This innovative passive fiber cable alternative employs cutting-edge 4×50Gb/s PAM4 modulation technology, delivering exceptional signal integrity across all transmission channels. The solution fully complies with InfiniBand Trade Association (IBTA) HDR standards and incorporates SFF-8665 and SFF-8636 specifications for seamless integration and comprehensive management via I²C interface, providing a robust alternative to traditional fiber optic systems.
Operational Methodology
The MCP7H50-H002R26 functions as an intelligent passive electrical bridge, efficiently routing high-speed signals from a single QSFP56 connector (supporting 200G HDR) to two independent QSFP56 connectors (each supporting 100G HDR100). This sophisticated passive fiber cable replacement maintains exceptional signal integrity through precision impedance-matched copper conductors (100Ω characteristic impedance) and advanced shielding technologies that effectively minimize crosstalk and electromagnetic interference, ensuring reliable data transmission.
Deployment Applications
This high-density interconnect solution is ideally suited for modern infrastructure requirements:
Data Center Networks
Spine-leaf architectures and top-of-rack connectivity for hyperscale environments
High-Performance Computing
Cluster interconnects for scientific research and engineering simulations
AI & Machine Learning
Training cluster connectivity for deep learning frameworks
Storage Systems
High-speed connections for SAN and NAS storage solutions
Competitive Differentiation
The MCP7H50-H002R26 offers significant advantages over both active optical cables and previous-generation copper solutions:
- Economic Efficiency: Provides approximately 35-45% cost reduction compared to equivalent active optical solutions
- Power Optimization: Consumes less than 0.1W compared to 2-3W for active optical cables
- Enhanced Reliability: Passive design eliminates failure points associated with active components
- Reduced Latency: Electrical signal transmission offers lower latency than optical conversion systems
- Environmental Safety: LSZH jacket and halogen-free construction improve facility safety standards
- Thermal Management: Reduced power consumption decreases cooling requirements in dense configurations
Support Services
Mellanox provides comprehensive support infrastructure for the MCP7H50-H002R26:
- 1-year limited hardware warranty covering materials and manufacturing defects
- Global technical support network with expert assistance for integration challenges
- Custom configuration services for large-scale deployment scenarios
- Standard order fulfillment within 2-3 weeks with expedited options available
- Compatibility verification services for heterogeneous environments
Frequently Asked Questions
What maximum distance does this DAC solution support?
The MCP7H50-H002R26 is engineered for short-reach applications up to 3 meters, making it particularly suitable for rack-scale and adjacent-rack connectivity in data center environments.
Is this cable compatible with non-Mellanox equipment?
While optimized for Mellanox systems, this passive fiber cable alternative adheres to industry standards and is generally compatible with other vendors' equipment supporting InfiniBand HDR and compatible QSFP56 interfaces.
What maintenance is required for these cables?
As a passive solution, the MCP7H50-H002R26 requires minimal maintenance beyond periodic visual inspection for physical damage and ensuring connectors remain clean and free of debris.
Installation Guidelines
To ensure optimal performance and longevity:
- Maintain minimum bend radius of 34mm for single bends and 68mm for repeated bends
- Avoid sharp bends, particularly near connector interfaces where stress is concentrated
- Implement proper ESD precautions during handling and installation procedures
- Verify compatibility with host system firmware and driver versions before deployment
- Operate strictly within specified temperature (0°C to 70°C) and humidity (5% to 85%) ranges
- Regularly inspect connectors for debris or damage before installation and during maintenance cycles
